5.1.13. Installing the charging cable to Satellite
NOTICE
Install the charging cables a s soon as possible to prevent dust or water getting
inside the Satellite.
NOTICE
Do not remove the packaging of the vehicle connector before installation. It protects
the vehicle connector from damages.
NOTICE
When you install charging equipment in environments that have large temperature
variations, schedule a site visit to examine and adjust the tightening torques of the
terminal blocks when the temperature is significantly higher or lower than at the time
of installation. Ambient temperature variations cause wires to expand and contract.
NOTE
See also 12: Control signal wires of the charging cable.

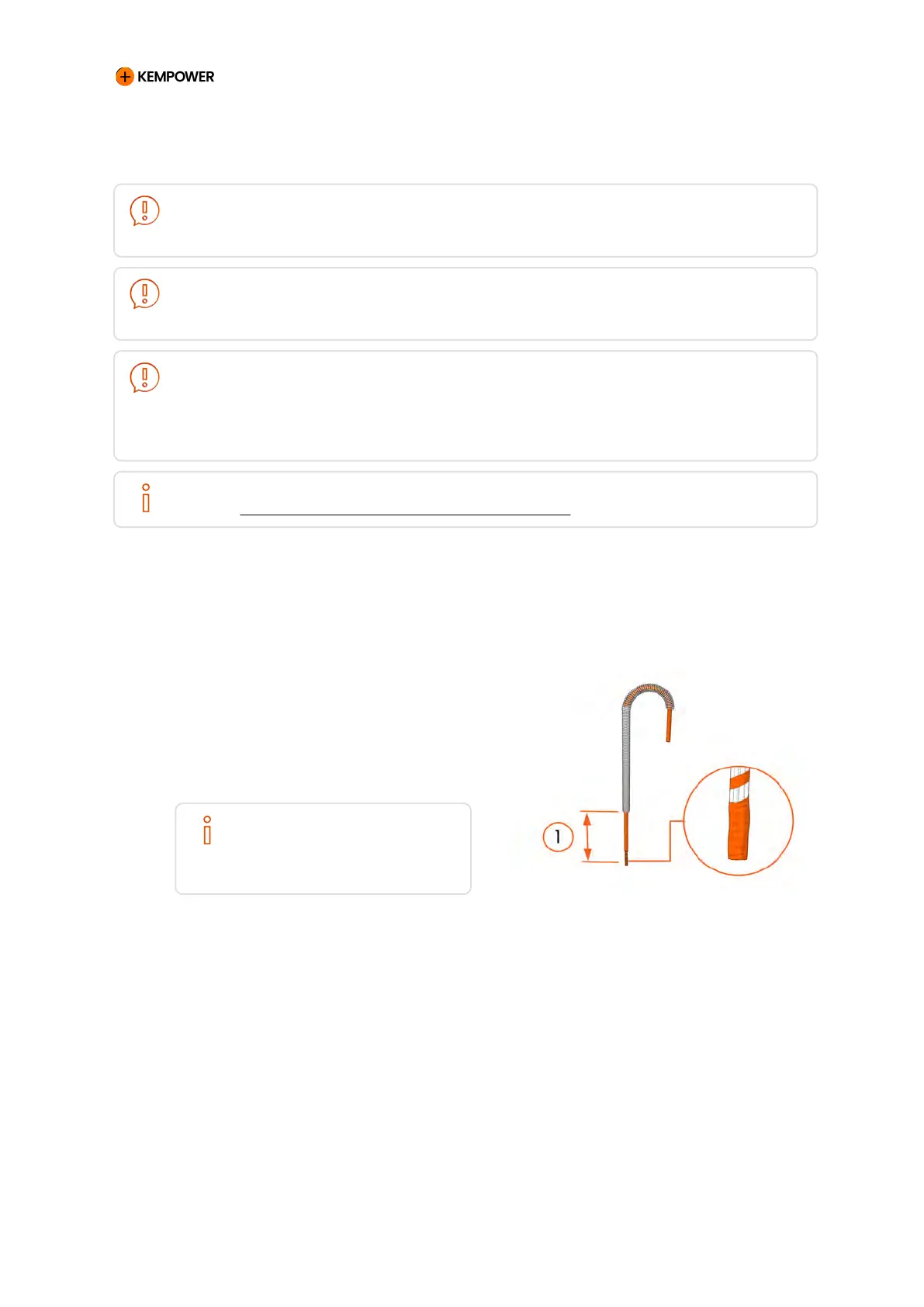

1. Tape the wire ends of the
charging cable to avoid fraying.
2. Pull the charging cable
through its support spring until
approximately 400–600 mm (1)
of the charging cable remains
outside of the support spring.
NOTE
If necessary, use the draw
tape and lubricant to pull the
cable.
CHARGING EQUIPMENT FOR ELECTRIC VEHICLES INSTALLATION MANUAL
CONFIDENTIAL – CERTIFIED PARTNERS 78 REV 2.40 EN 04-2024
