5.1.11. Installing Liquid Cooled Satellite
NOTICE
Two persons are needed for this task.
NOTICE
Liquid Cooled Satellite weighs approximately 150 kg. Use appropriate lifting
equipment operated by qualified professionals.
NOTICE
Do not exceed the bending radius of the cable given by the cable manufacturer.
NOTE
Use five M16 anchor bolts or equivalent per Liquid Cooled Satellite installation flange.

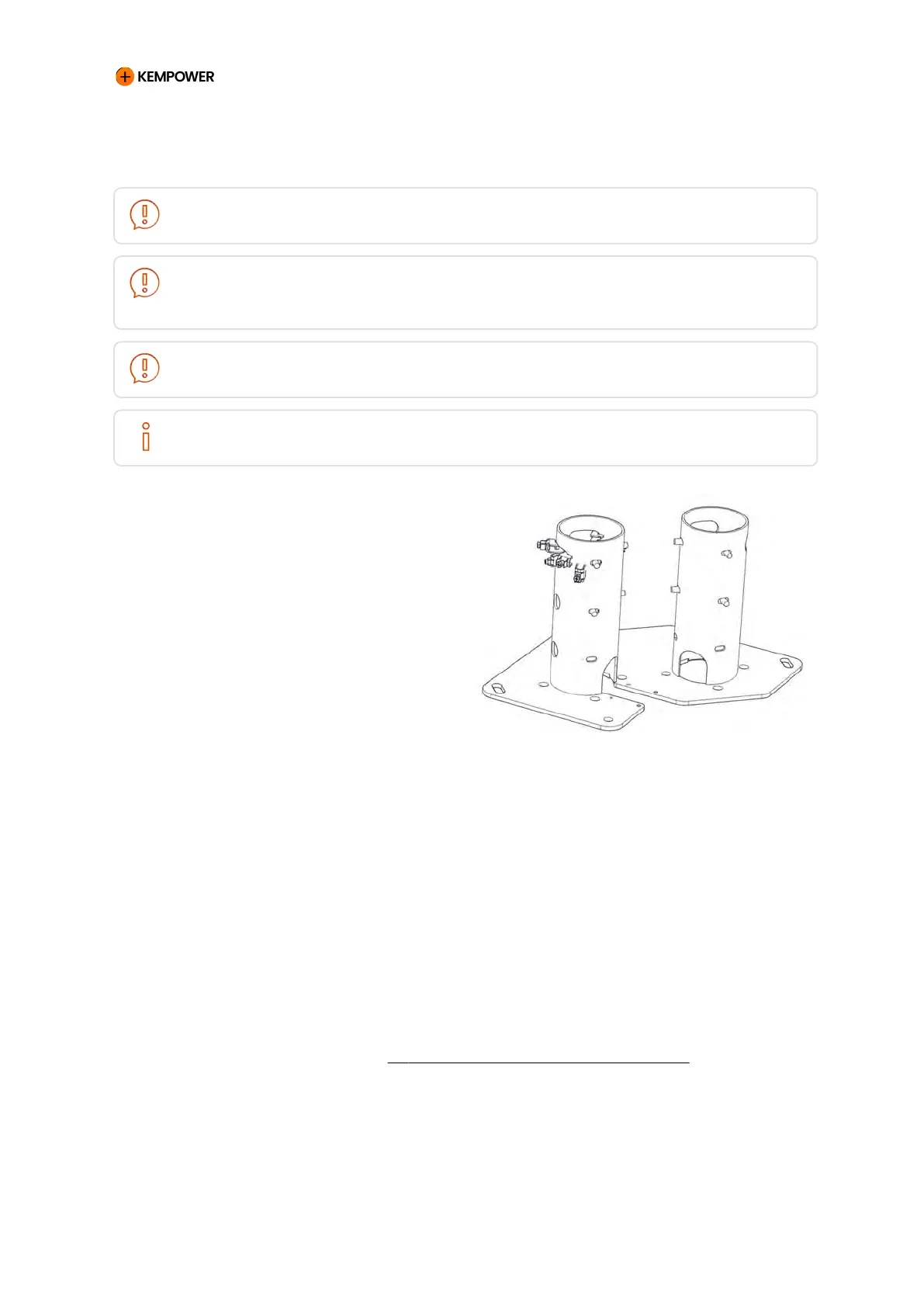

Install Liquid Cooled Satellite with its
installation flange on a stable, hard
surface. The tube of the installation
flange with the opening for cable
routing is for the Liquid Cooled Satellite
frame that has the user interface.
The optional mounting tube cannot be
used with Liquid Cooled Satellite.
1. Make sure that:
• The installation flange is tightly fixed to Liquid Cooled Satellite.
• The front panel has room to open when Liquid Cooled Satellite is
installed.
• The bending radius of the cables is not exceeded when Liquid
Cooled Satellite is installed.
2. The cables are routed to the Liquid Cooled Satellite frame that has
the user interface. To make cable routing easier, strap the power and
control cables together with electric tape or equivalent.
3. Drill the fixing holes. See 9: Unit footprints and clearances.
4.
Install the fixing anchors in place. If necessary, use epoxy or equivalent
to fasten them.
• Make sure that the installation level is horizontal. If necessary,
use appropriate washers.
CHARGING EQUIPMENT FOR ELECTRIC VEHICLES INSTALLATION MANUAL
CONFIDENTIAL – CERTIFIED PARTNERS 72 REV 2.40 EN 04-2024
