5.1.12. Installing Control Unit 200 A
DANGER
High-voltage installation. Make sure that the units are correctly isolated and the
lockout-tagout (LOTO) procedure completed when necessary during installation,
service or maintenance work. Know and obey general and local safety regulations
and procedures. Use adequate personal protection equipment (PPE).
NOTICE
The Control Unit frame weighs approximately 12.5 kg without the charging cable.
NOTICE
Do not exceed the bending radius of the cable given by the cable manufacturer.
NOTE
See 11: Examples of connecting cables to the Satellites for more information.

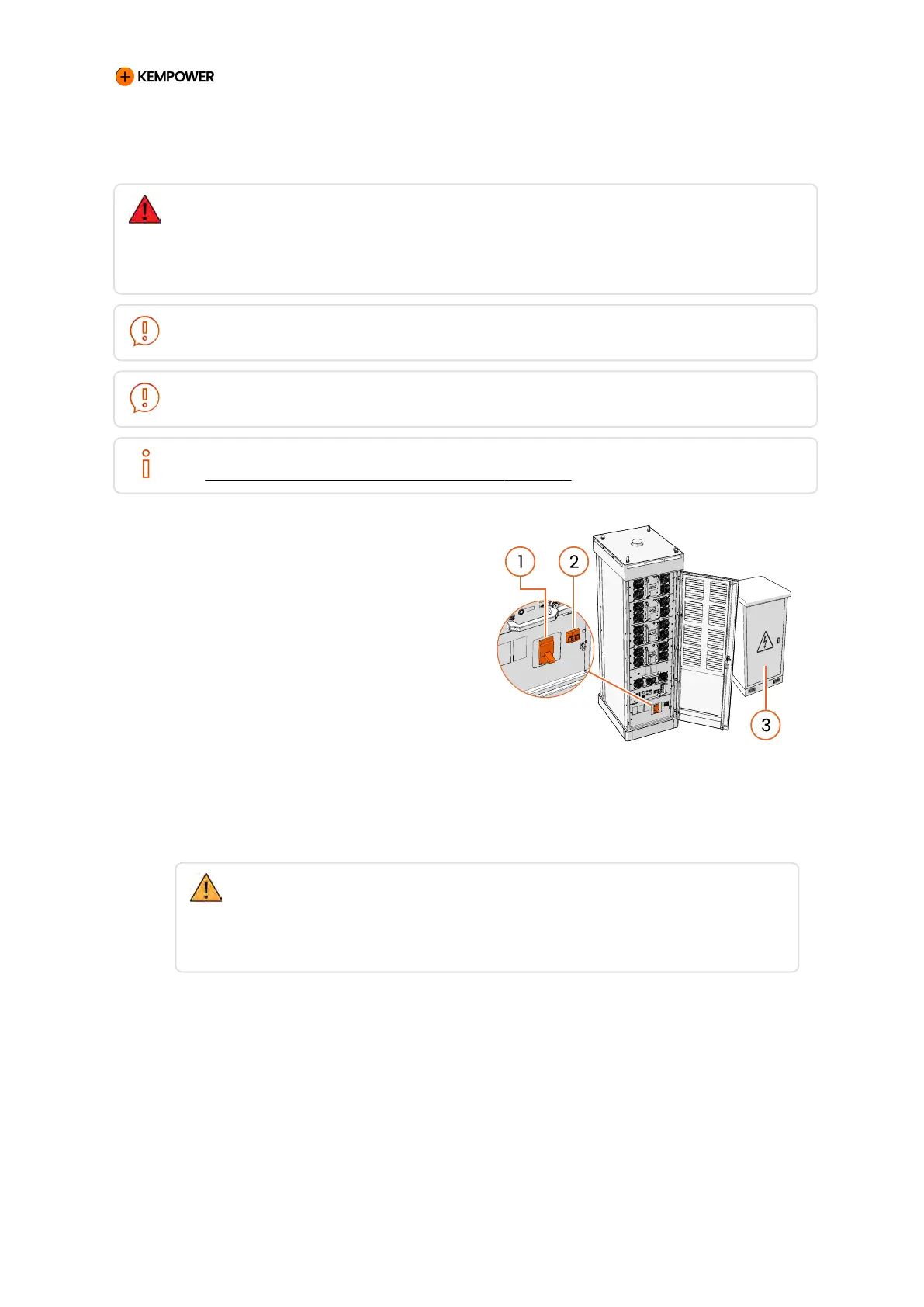

1. Unlock and open the door(s) of
the charging power unit.
In each cabinet, set the
miniature circuit breaker (MCB)
for control voltage (2) and main
switch (1) to OFF position.
Disconnect the AC power supply
to the unit from the main supply
point (3).
Complete the lockout-tagout
(LOTO) procedure.
WARNING
After you disconnect the power supply, wait a minimum of two minutes
for the capacitors of the power modules to discharge before you continue.
Before you start work, measure the voltage of the electrical circuits to
make sure that no dangerous voltage remains.
CHARGING EQUIPMENT FOR ELECTRIC VEHICLES INSTALLATION MANUAL
CONFIDENTIAL – CERTIFIED PARTNERS 74 REV 2.40 EN 04-2024
