3.6.2. Satellite Version 2
NOTE
See the product datasheets for the dimensions and weights of the units. Product
datasheets are available at mediabank.kempower.com.
NOTE
See
9: Unit footprints and clearances for the footprints and required clearances of the
units.
NOTE
The Satellite Version 2 does not have charging status indicator LEDs.
Kempower Satellite Version 2 is the charging point connected to the
charging power unit. The single Satellite has one vehicle connector and the
double has two. See the product datasheet for the available charging cable
and vehicle connector types.

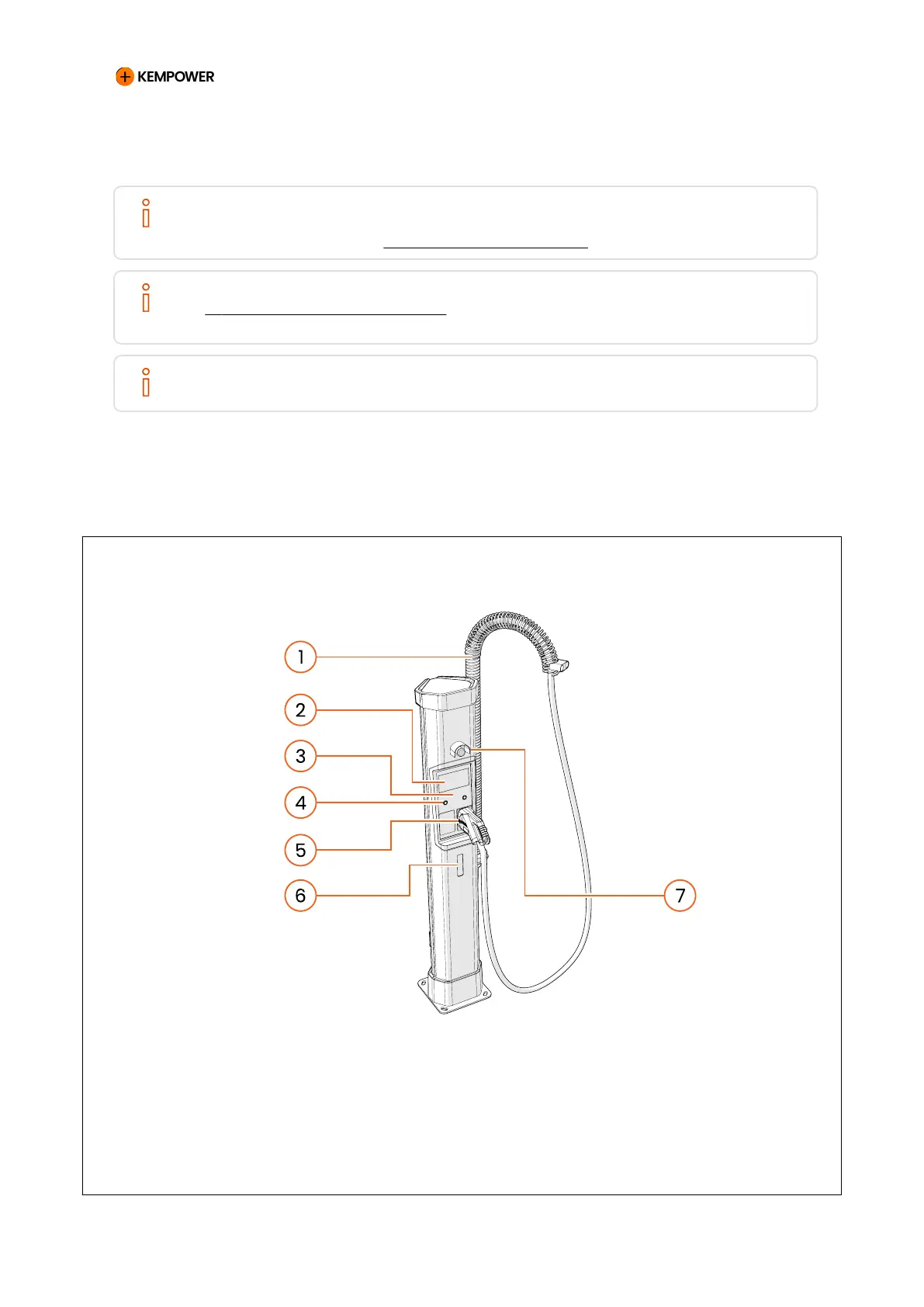

Figure 14. Kempower Satellite Version 2 overview (single, with integrated energy meter)
1 Charging cable support spring 5 Vehicle connector and holder
2 Touch screen 6 Integrated energy meter
3 RFID reader 7 Equipment stop button (option)
4 Function buttons
CHARGING EQUIPMENT FOR ELECTRIC VEHICLES INSTALLATION MANUAL
CONFIDENTIAL – CERTIFIED PARTNERS 25 REV 2.40 EN 04-2024
