5.1.7. Moving and lifting Liquid Cooled Satellite
NOTICE
The Liquid Cooled Satellite is shipped upright in a crate. The total weight is
approximately 150 kg. Use appropriate lifting equipment operated by qualified
professionals.
The charging cables and support springs are installed on the unit at the
factory.
The Liquid Cooled Satellite is delivered with the cooling liquid (Glysofor N)
prefilled inside the unit. The maximum tilting angle of the Liquid Cooled
Satellite is approximately 45 degrees. If liquid comes out of the Liquid Cooled
Satellite during transportation, make sure that the expansion tank in the
liquid cooling unit is approximately 1/3 full before you start operation. The
coolant/water mix ratio is 50/50 when delivered. Use clean water when
refilliing.
The Liquid Cooled Satellite weighs approximately 150 kg and must be lifted
to its installation position with lifting equipment and straps. See Figure 36.

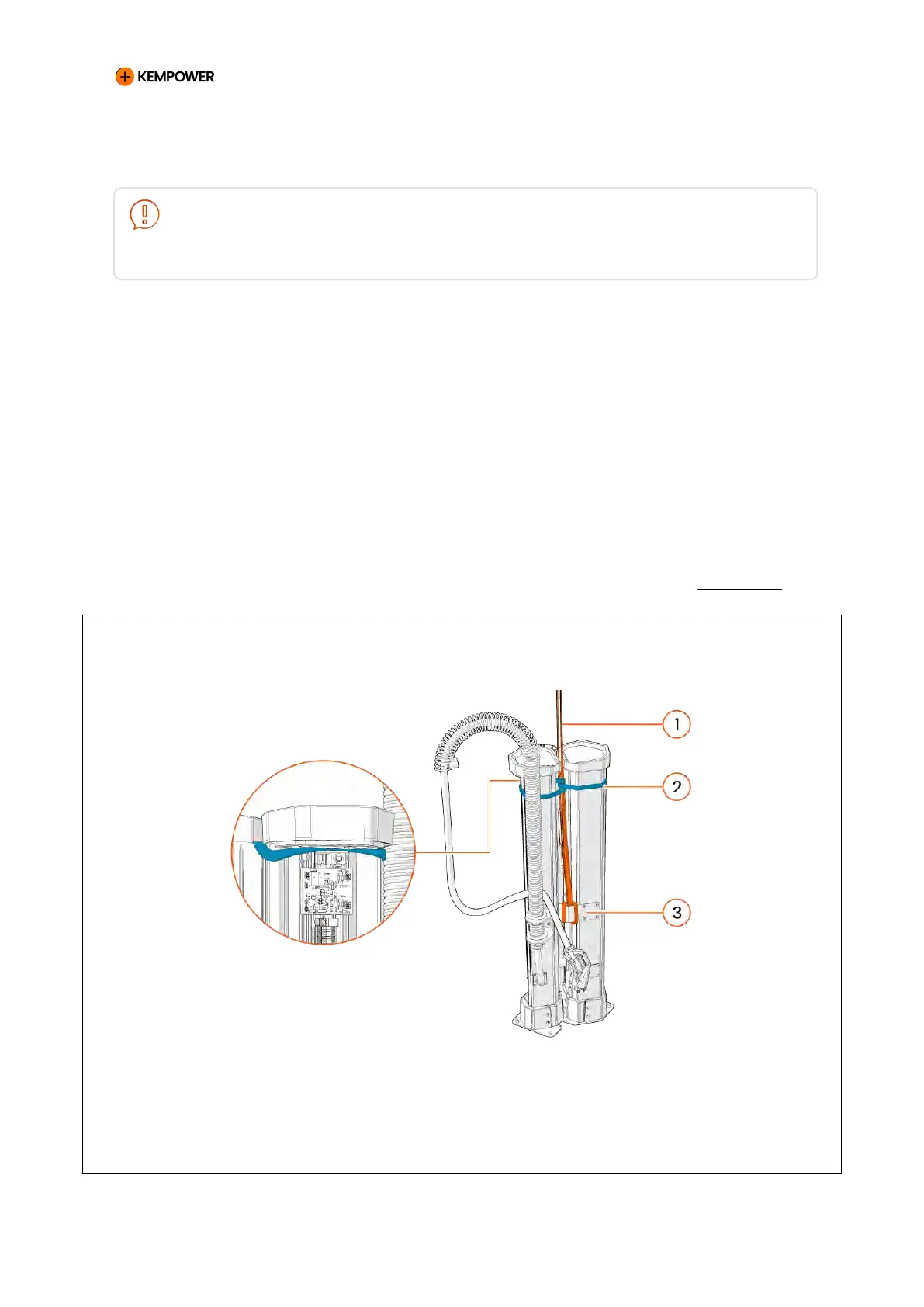

Figure 36. Lifting points of the Liquid Cooled Satellite
1 Lifting strap 3 Fastener between frames
2 Fastening strap
CHARGING EQUIPMENT FOR ELECTRIC VEHICLES INSTALLATION MANUAL
CONFIDENTIAL – CERTIFIED PARTNERS 64 REV 2.40 EN 04-2024
