KEMPOWER Power Unit - AC Charging Cables

• X2 for the charging cable on the right hand side
•
X3 for the charging cable on the left hand side

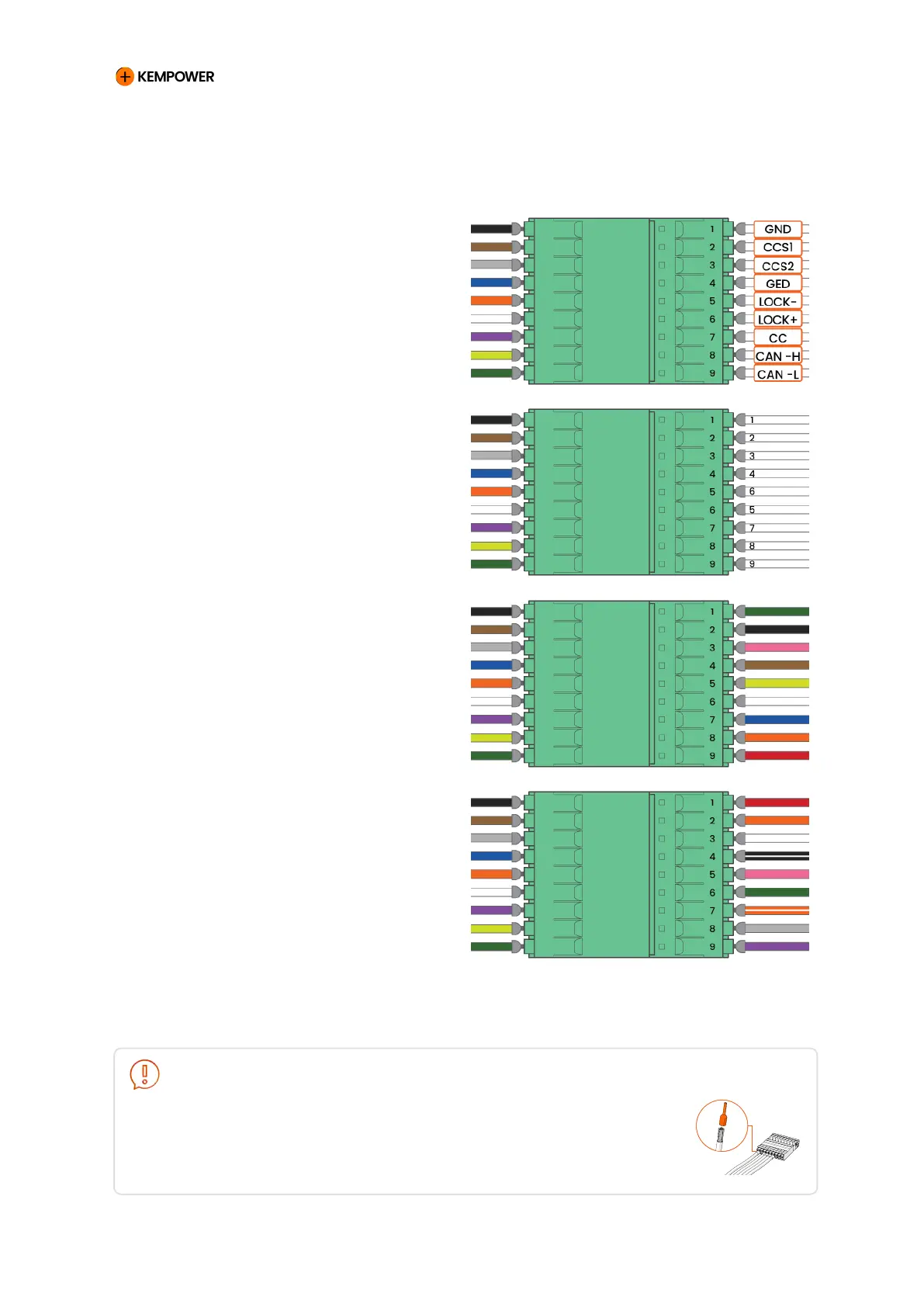

Unit wiring
CHAdeMO 40142
DC+ BROWN
DC- BLUE
CHAdeMO 40147
DC+ WHITE
DC- BLACK
CHAdeMO 40222
DC+ BLACK
DC- BLUE
12.3. AC charging cables
NOTICE
Before you connect the signal wires to the mating connector, terminate
the signal wires with ferrules to protect the wires from corrosion.
