11.13. AC Satellite Version 2 with two sockets or vehicle
connectors
NOTICE
The AC Satellite Version 2 is not connected to the charging power unit. It requires only
AC supply cables that are connected to the main AC supply.
NOTE
If the optional communication cable is used, ground the Ethernet shield at one end
only: AC Satellite Version 2 or network connection switch.

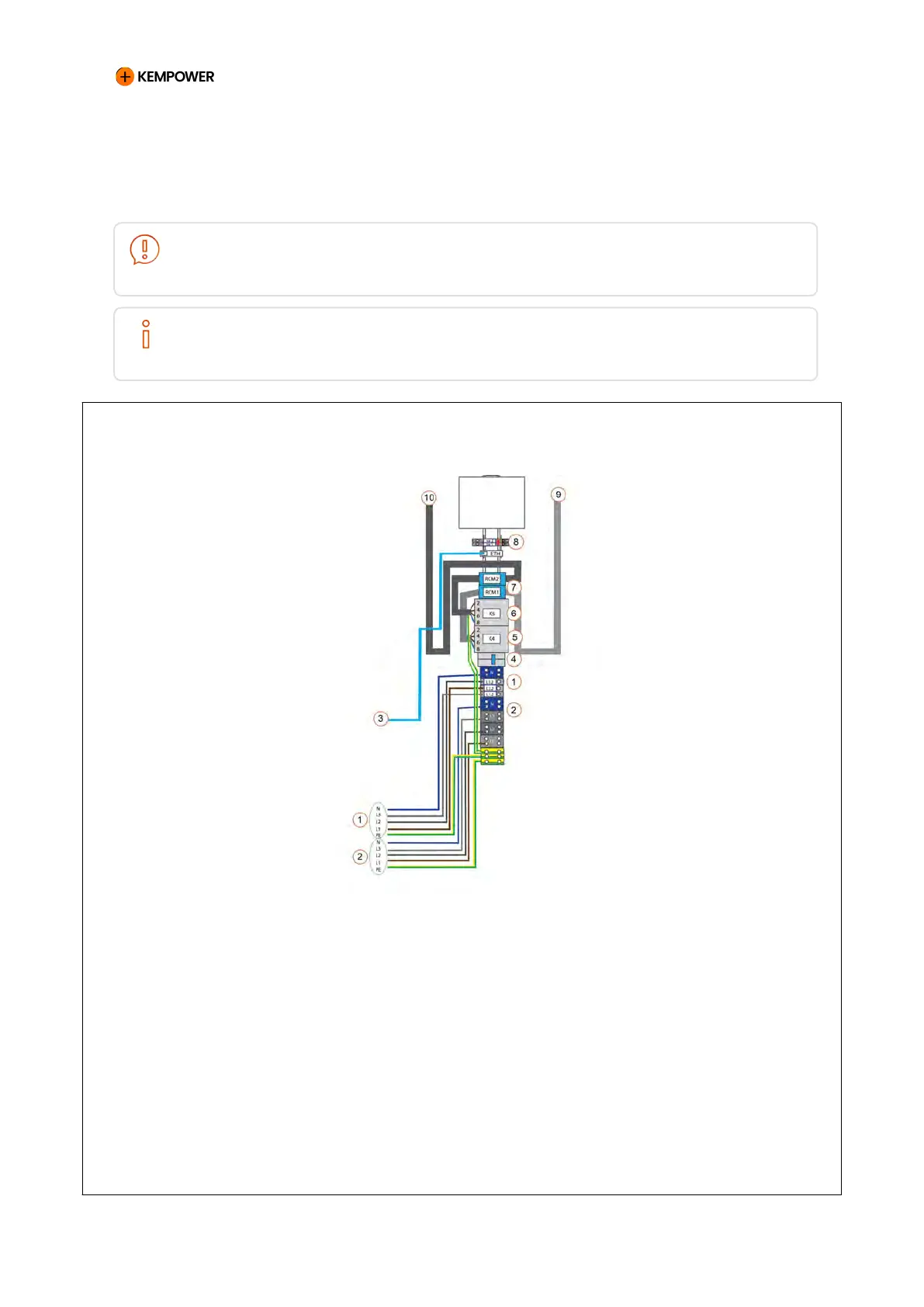

Figure 74. AC Satellite Version 2 with two sockets or vehicle connectors
1 AC input 2
a
6 kWh meter (left)
2 AC input 1 7 Residual current monitoring
sensors
3 Ethernet (public LAN)
communication cable (option)
8 Connection for equipment stop
(optional)
4 Operating power circuit breaker 9 Configuration tag (right)
5 kWh meter (right) 10 Configuration tag (left)
a
If the site has multiple AC Satellites, we recommend shifting the phase order L1→L2.2 | L2→L3.2 |
L3→L1.2 to balance the power consumption in the grid.
CHARGING EQUIPMENT FOR ELECTRIC VEHICLES INSTALLATION MANUAL
CONFIDENTIAL – CERTIFIED PARTNERS 151 REV 2.40 EN 04-2024
