11.8. X-Satellite with one CCS and one CHAdeMO vehicle
connector
NOTE
Grounding of the Ethernet shield at one end only, charging power unit or Satellite.

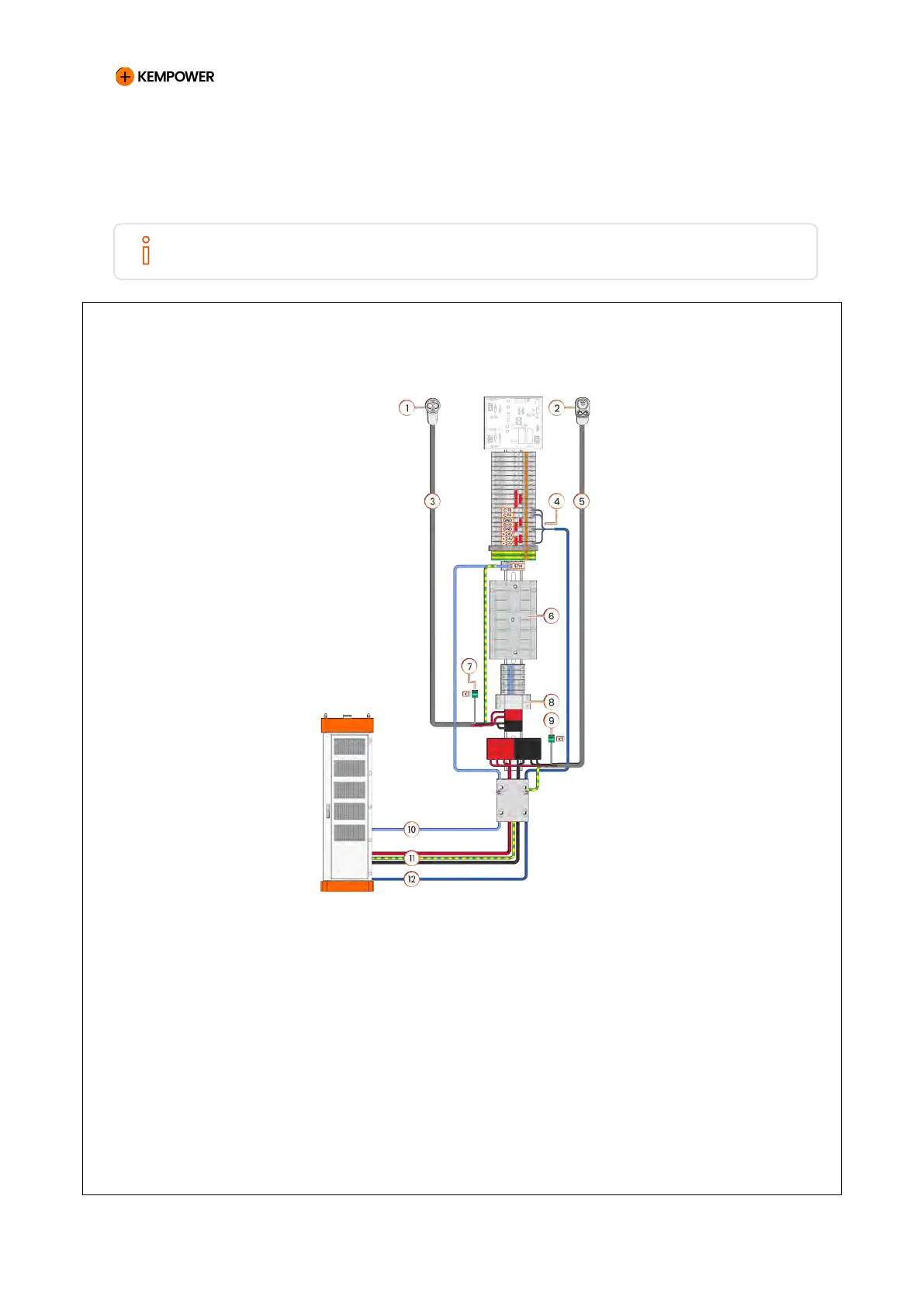

Figure 69. X-Satellite with one combined charging system (CCS) and one CHAdeMO vehicle
connector
1 Configuration tag (left vehicle
connector)
7 Vehicle connector signal wires
(right)
2 Configuration tag (right vehicle
connector)
8 Contactor for CHAdeMO
3 Charging cable (left) 9 Vehicle connector signal wires
(left)
4 CT line signal wires 10 Communication cable
5 Charging cable (right) 11 DC output power cables + PE
6 Relay board 12 Control cable (CT line)
CHARGING EQUIPMENT FOR ELECTRIC VEHICLES INSTALLATION MANUAL
CONFIDENTIAL – CERTIFIED PARTNERS 146 REV 2.40 EN 04-2024
