3.4.2. Dynamic power distribution module
The dynamic power distribution module of the charging power unit routes
and re-routes the power channels to the charging points during the
charging session.

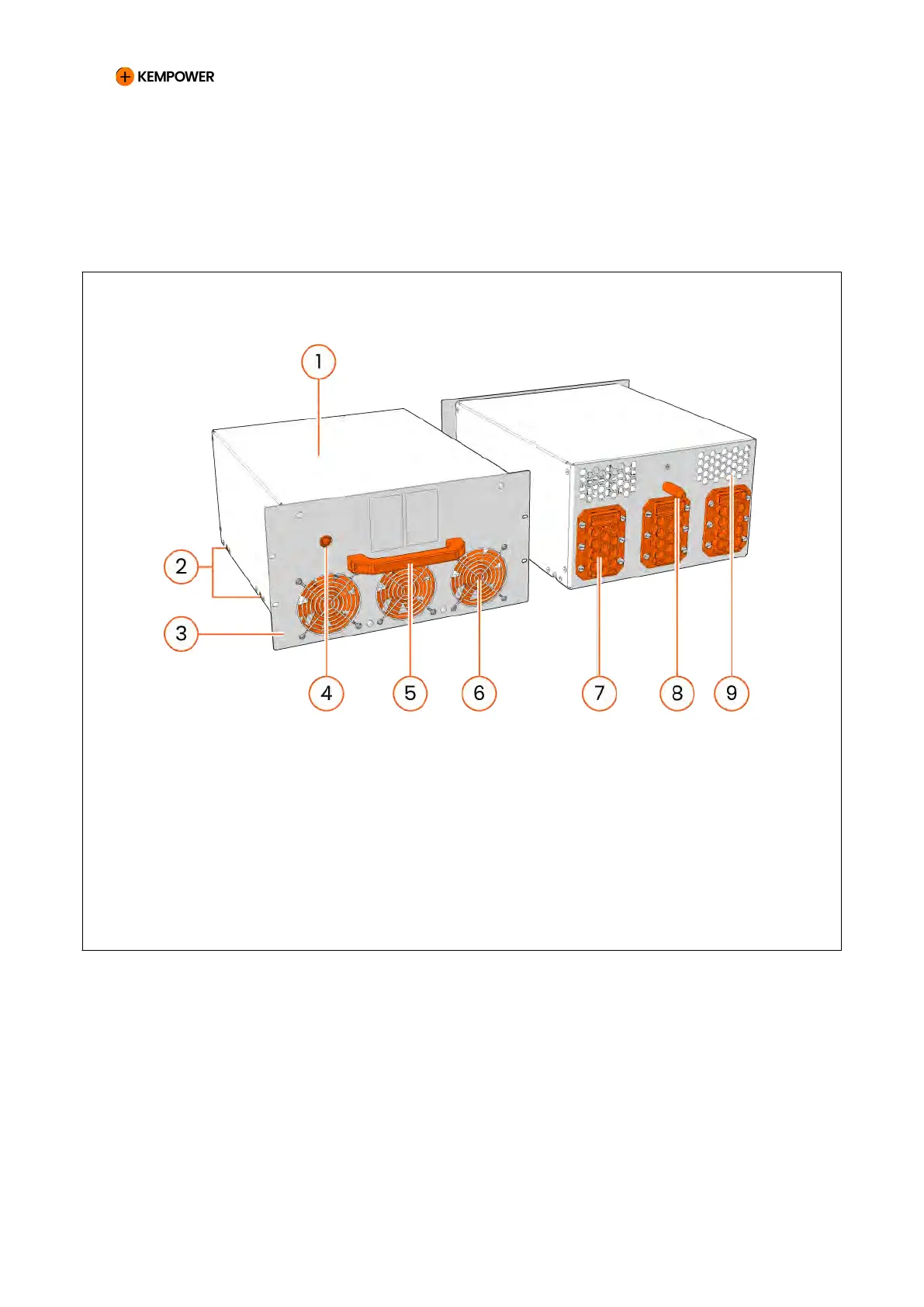

Figure 7. Dynamic power distribution module overview
1 Cover 6 Cooling fans
2 Rollers 7 Multi-quick connectors
3 Front panel 8 Guide pin
4 Status indicator
a
9 Cooling outlets
5 Handle
a
Green: OK, ready for operation. Blue: operation. Red: error.
