KEMPOWER Power Unit - Terminal Blocks (Satellite Version 2)

5.2.4. Terminal blocks (Satellite Version 2)
See also 10: Examples of connecting output and control cables to charging
points and 11: Examples of connecting cables to the Satellites.

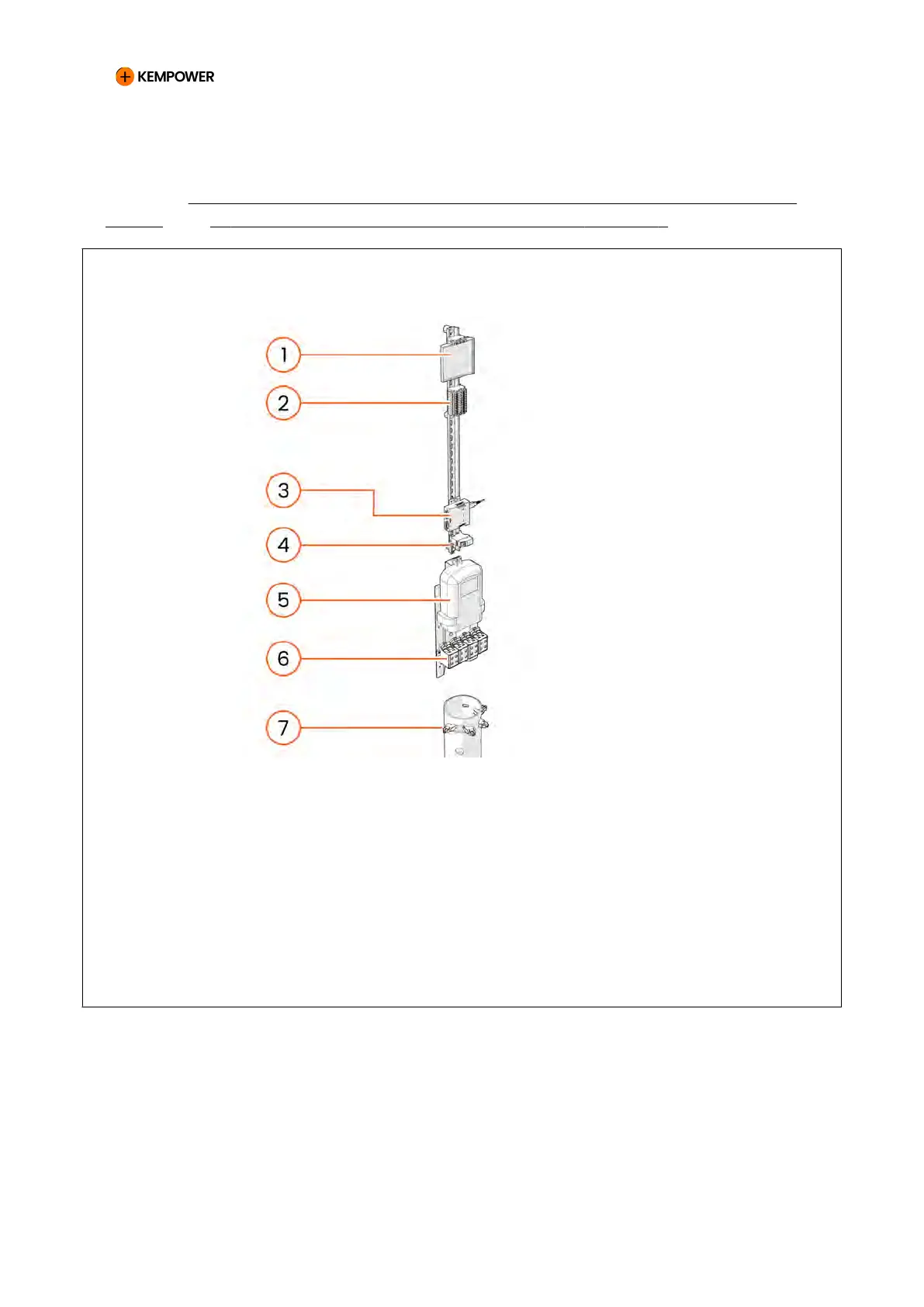

Figure 43. Terminal blocks in the single Satellite Version 2
1 Voltage and insulation monitor 5 kWh meter
2 Terminal blocks for control cable 6 Terminal blocks for DC power
cables (2 x 150 mm
2
screw
terminal)
a
3 USB converter 7 Protective earth (PE) clamps
4 Terminal block RJ45
a
Input left, output right
