5. If the cables are surface-installed, make an opening in the collar
on the bottom of Liquid Cooled Satellite for routing the cables. See
Figure 40.
•
The collar is plastic. Use a suitable tool such as a hole saw.
• To make installing the cables easier, extend the opening to the
bottom edge of the collar.
6. Remove the three security T30H screws and open the front panel of
Liquid Cooled Satellite. Fasten it in the open position with duct tape or
equivalent.
7. Lift Liquid Cooled Satellite to the installation position. Before you set
Liquid Cooled Satellite in place, route the cables into Liquid Cooled
Satellite through the installation flange.
8. Install Liquid Cooled Satellite on the fixing anchors or into the concrete
element.
• Make sure that the unit is horizontally level.
• If you are using a concrete base, fill the base with granular clay or
equivalent when the installation is finished.
9. Connect the cables. See
5.1.13: Installing the charging cable to Satellite.
10.
Connect the cables. See
5.2: Electrical installation.

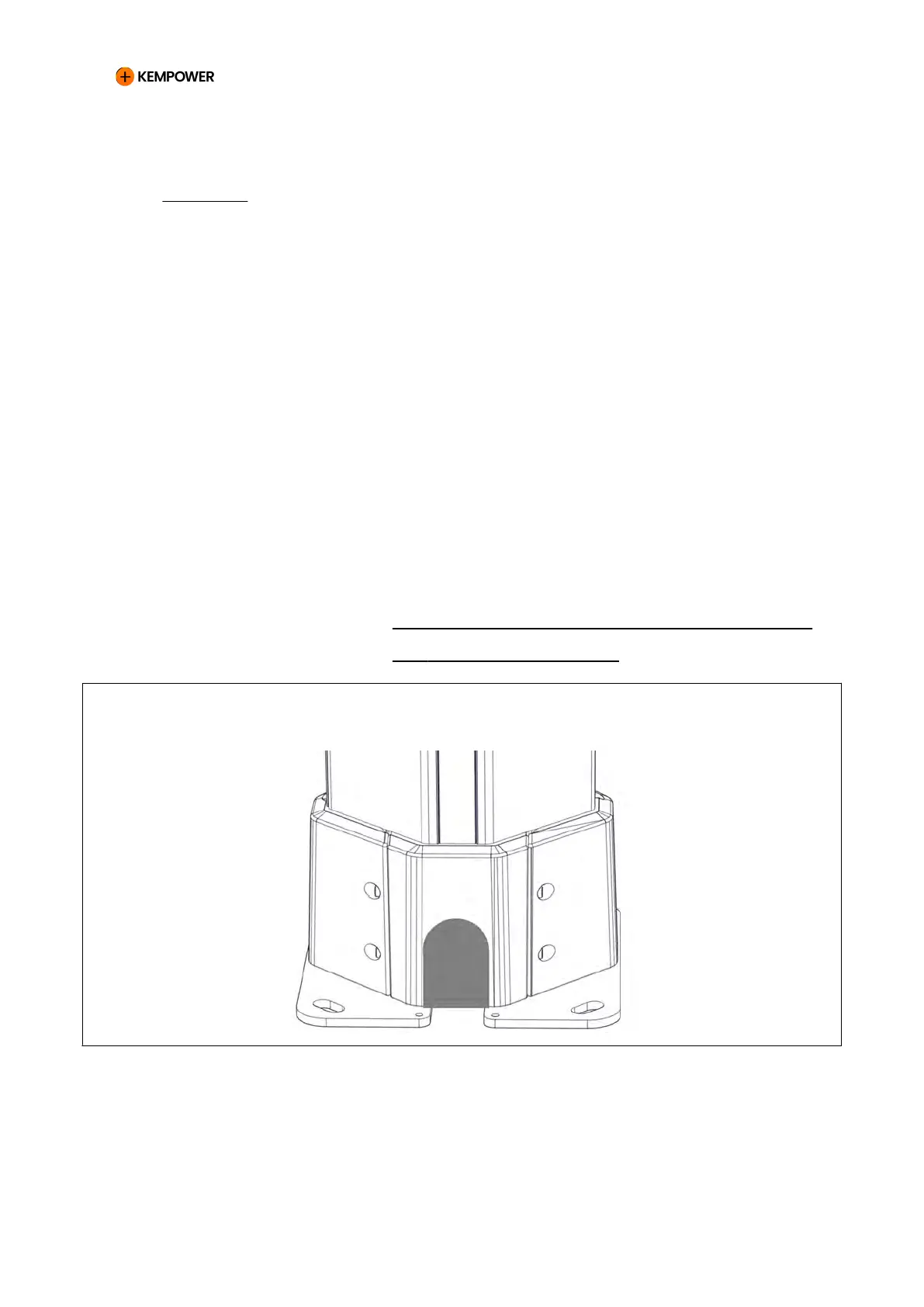

Figure 40. Opening in Liquid Cooled Satellite collar for surface-installed cables
CHARGING EQUIPMENT FOR ELECTRIC VEHICLES INSTALLATION MANUAL
CONFIDENTIAL – CERTIFIED PARTNERS 73 REV 2.40 EN 04-2024
