KEMPOWER Power Unit

To Next Page

To Previous Page

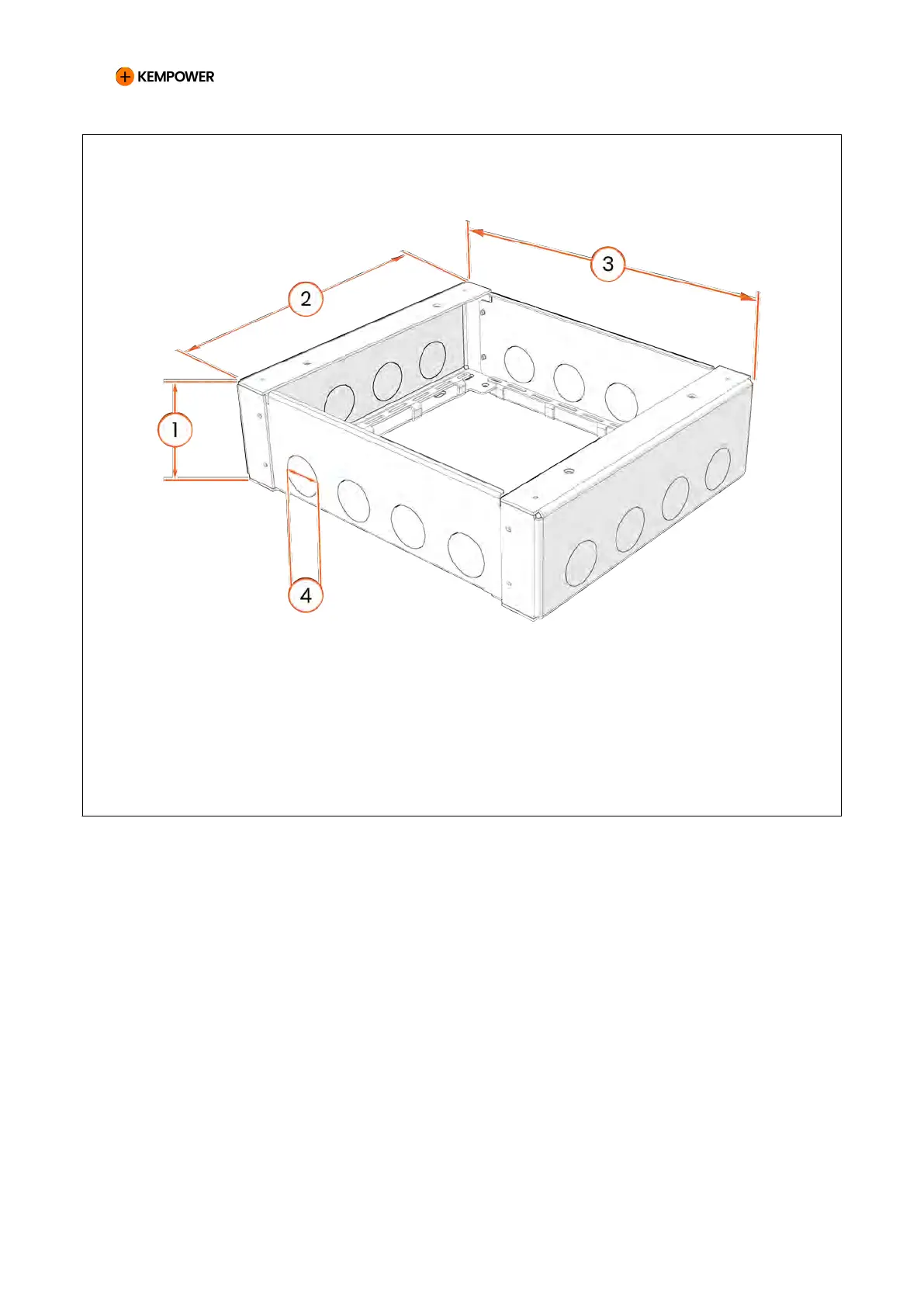

Figure 11. Steel base dimensions

1 Height 200 mm

2 Depth 702 mm

3 Width 600 mm

4 Diameter 80 mm

CHARGING EQUIPMENT FOR ELECTRIC VEHICLES INSTALLATION MANUAL

CONFIDENTIAL – CERTIFIED PARTNERS 22 REV 2.40 EN 04-2024

Main Page
