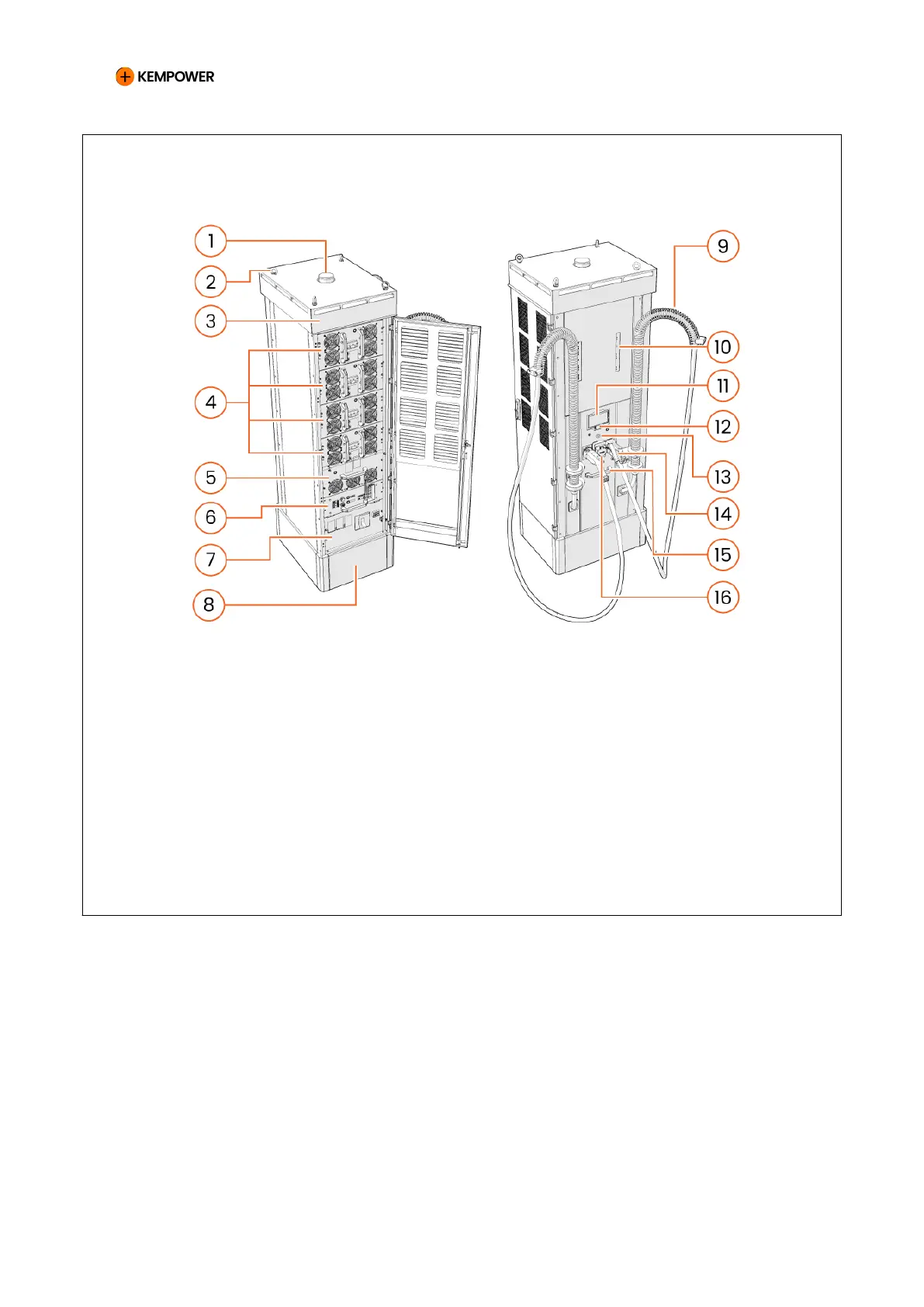

Figure 5. Kempower Station Charger overview (single cabinet, two DC vehicle connectors and
optional AC charging socket)
1 Cellular/Wi-Fi antenna 9 Charging cable support springs
2 Lifting lugs 10 Charging status indicators
3 Unit roof with cooling outlets 11 Touch screen
4 Power modules (1–4 per cabinet) 12 RFID reader
5 Power distribution module 13 Function buttons
6 Control module 14 Vehicle connectors and holders
7 Mains module 15 Front panel
8 Steel base 16 AC charging socket (option)
CHARGING EQUIPMENT FOR ELECTRIC VEHICLES INSTALLATION MANUAL
CONFIDENTIAL – CERTIFIED PARTNERS 16 REV 2.40 EN 04-2024
