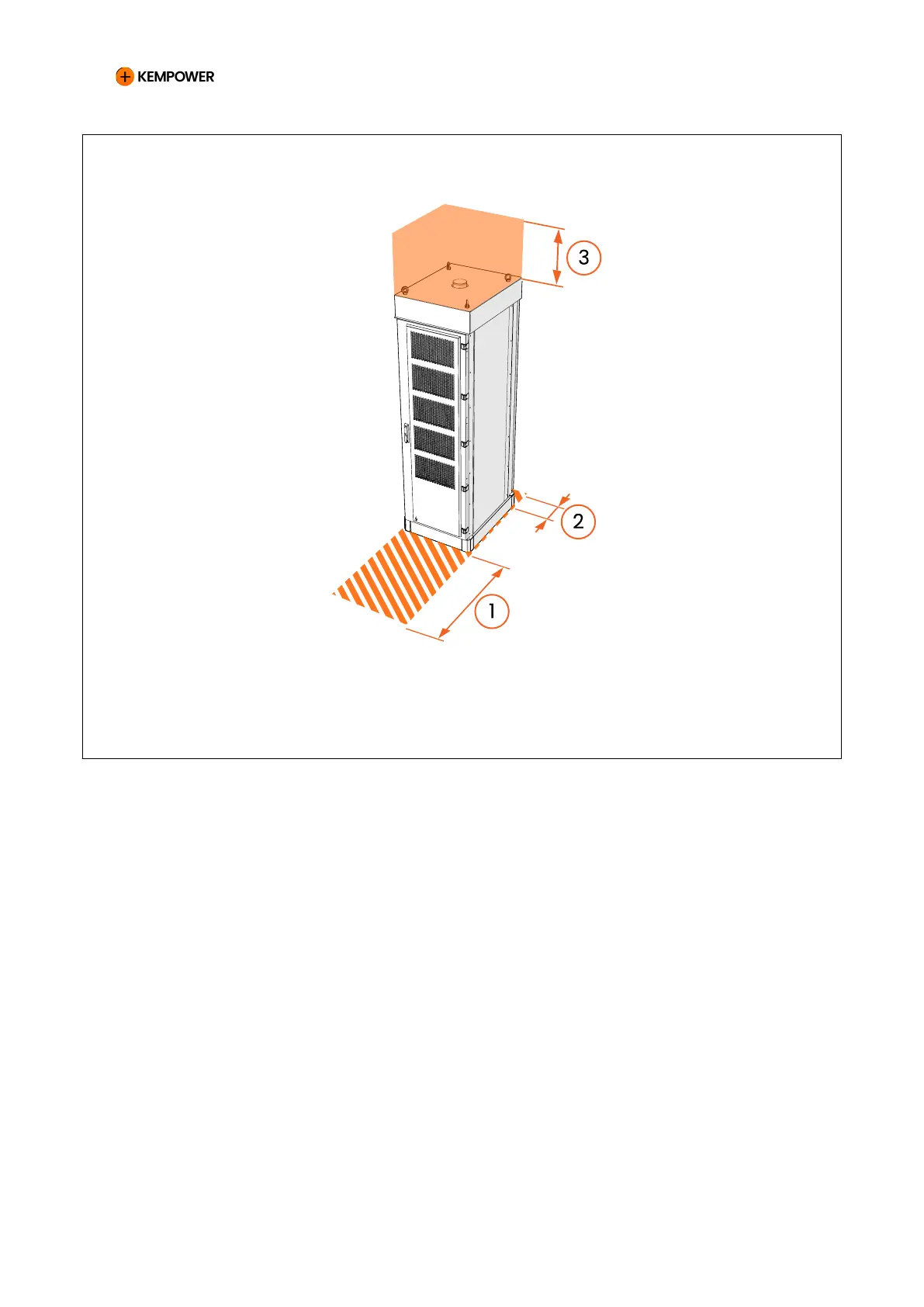

Figure 51. Clearances for Power Unit Version 3

1 1000 mm 3 500 mm

2 200 mm

CHARGING EQUIPMENT FOR ELECTRIC VEHICLES INSTALLATION MANUAL

CONFIDENTIAL – CERTIFIED PARTNERS 122 REV 2.40 EN 04-2024
