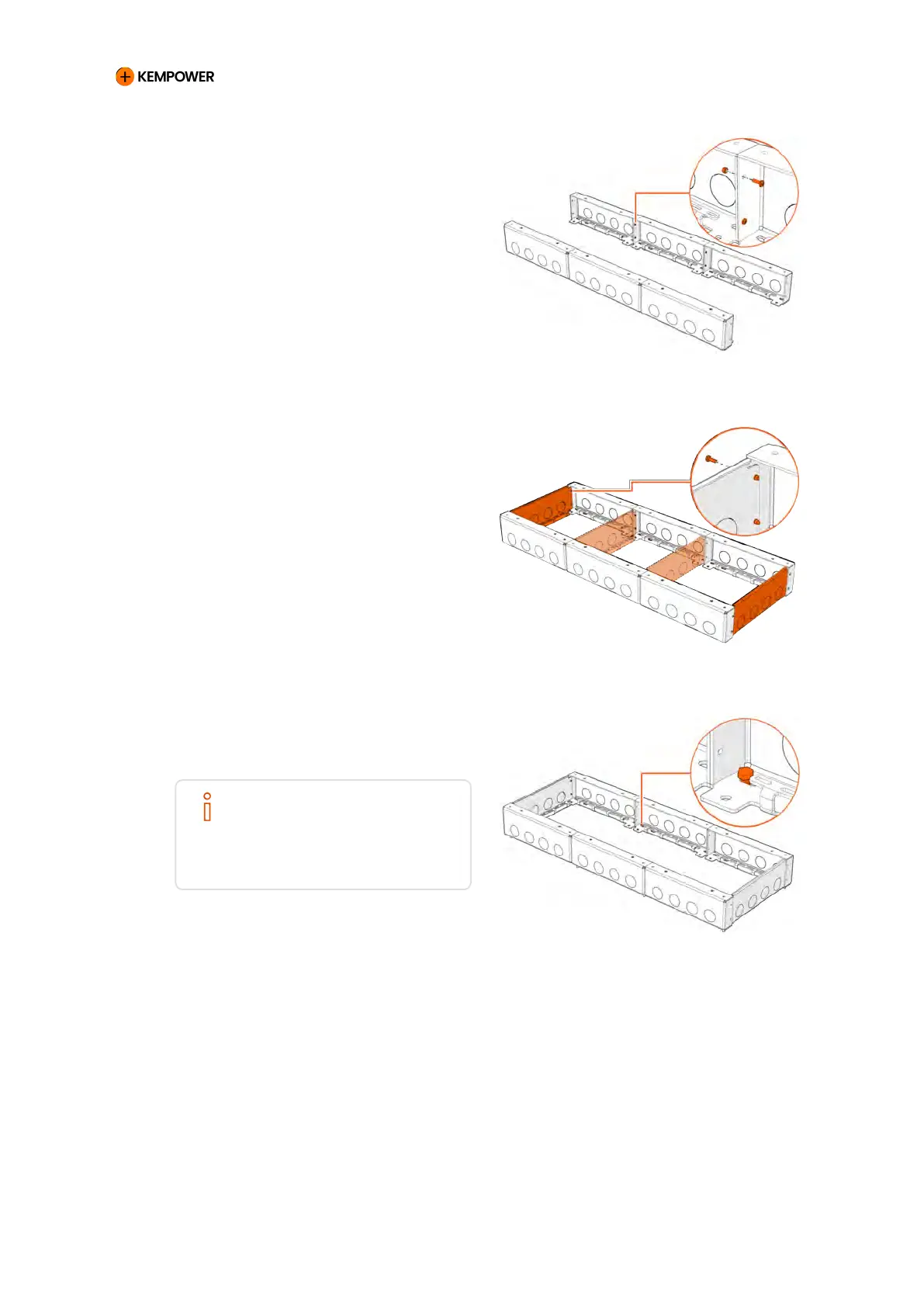

2. Assemble the side panels of the
steel base. Use two M6 bolts and
nuts for each seam to attach
the panels together.
Use the appropriate number of
side panels for your installation.
Two for a double cabinet and
three for a triple cabinet.
3. Attach the end panels using two
M6 bolts per seam.
The middle panels are optional.
4. Use fasteners to install the steel
base to the installation surface.
NOTE
The fasteners used for
installing the steel base to the
installation surface are not
included in the delivery.
