Keysight E5260/E5270 User’s Guide, Edition 6 1-5
Getting Started
Step 3. Setting up SMU2, forcing DC voltage, and measuring DC current
1. Press the
OutCh key until the S-ch status area displays 2. The SMU2 setup
information is displayed in the Setting Parameter area.
2. Press the
MeasCh key until the M-ch status area displays 2. The Meas Value area
displays ------ (no data to display status).
3. Press the
CPL Value key. The cursor appears on the lowest digit of the integral
part of the CPL value. The CPL shows the compliance value.
4. Press the Right arrow key to move the cursor on the arithmetic point.
5. Press the Up arrow key to set the CPL value to 100 mA, and press the
Enter key
to fix the value. Then press the
Enter key again. The cursor disappears.
6. Press the
On/Off key. The SMU2 starts voltage output and current measurement.
In the following example, the measured data is just an example. During the repeat
measurement, you may not be able to read the measured data.
Step 4. Stopping measurement
Press the
Single key. The SMU2 stops the measurement. However, the source output
is still effective.

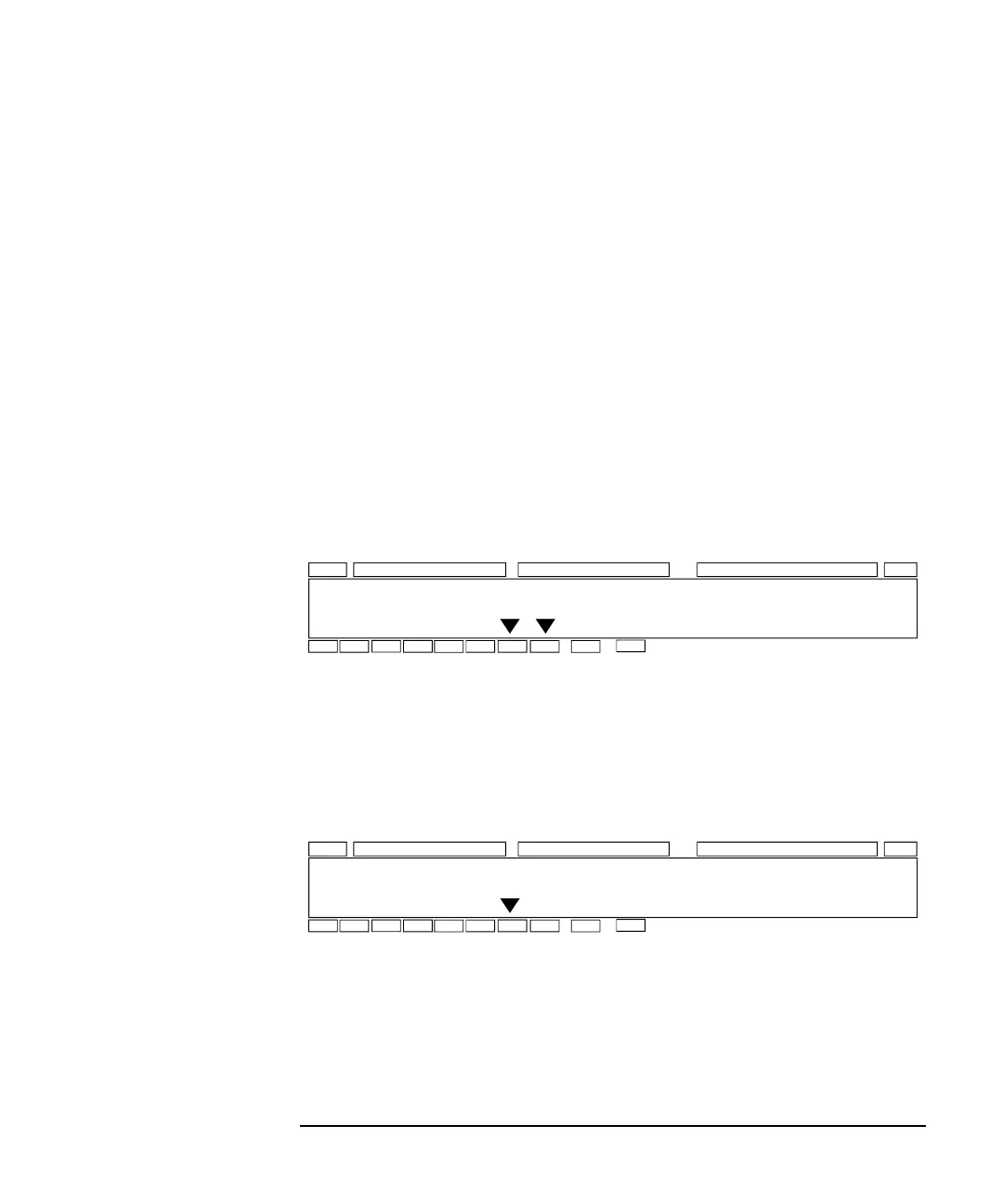

The LCD changes the display as shown below. The following data is just an
example.
Meas Value #1 Meas Value #2 Setting Parameter
Stat
OUT: 0.00 V
CPL: 100.0mA
0.00010nA
Remot e
A 2 2
Shift
Lock
Meas
Trigger
Error
Integ
Re pe a t
Ou tput
S-ch
M-ch
Meas Value #1 Meas Value #2 Setting Parameter
Stat
OUT: 0.00 V
CPL: 100.0mA
0.00015nA
Remot e
A 2 2
Shift
Lock
Meas
Trigger
Error
Integ
Re pe a t
Ou tput
S-ch
M-ch
