4.4.8 Heartbeat
The Heartbeat Protocol defines an Error Control Service without need for remote frames. A Heart-
beat Producer transmits a Heartbeat message cyclically. One or more Heartbeat Consumer
receive the indication. The relationship between producer and consumer is configurable via
object 1016h (➜ # 35) / 1017h (➜ # 35).
The Heartbeat Consumer guards the reception of the Heartbeat within the Heartbeat Consumer
Time. If the Heartbeat is not received within the Heartbeat Consumer Time a Heartbeat Event will
be generated.

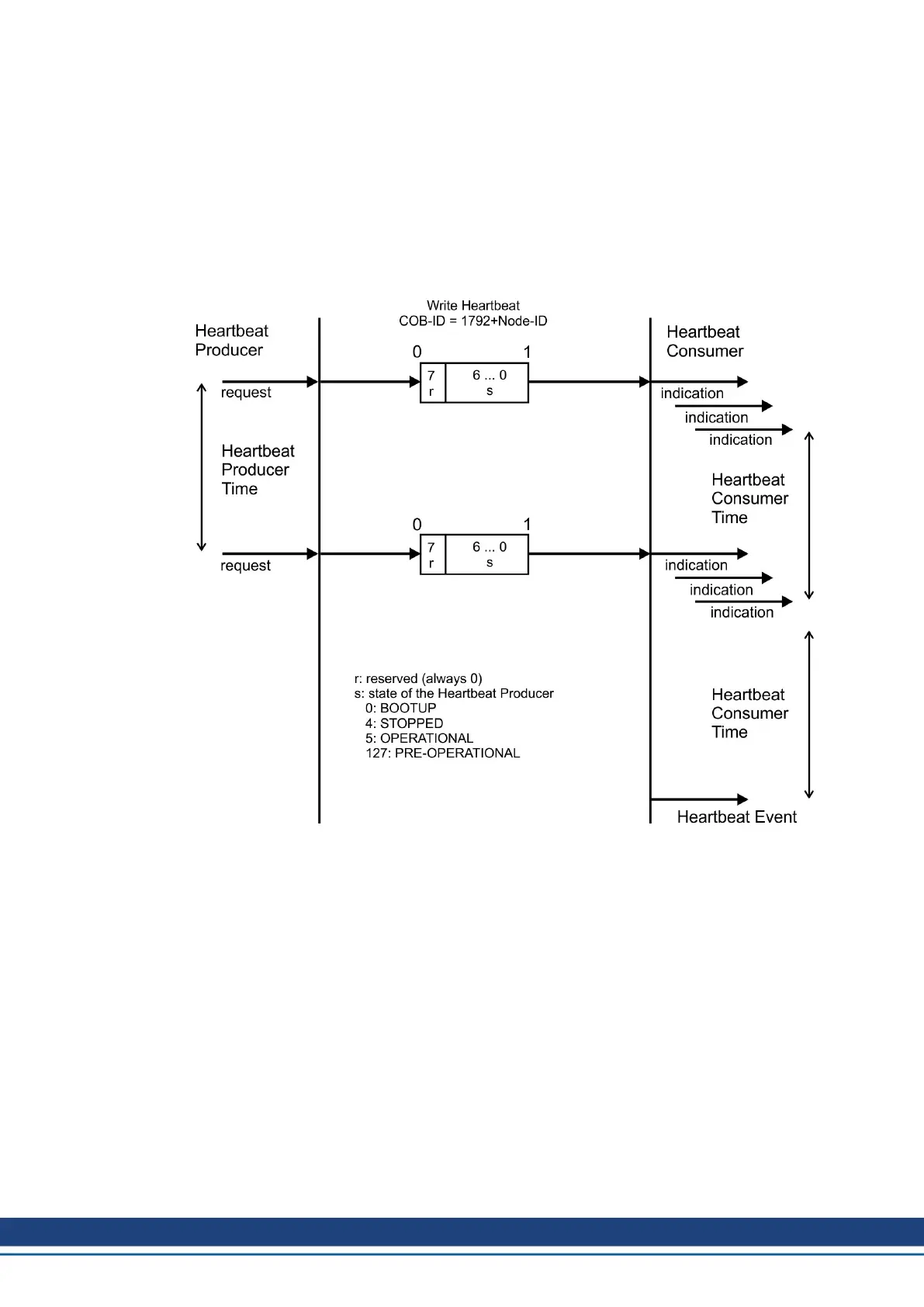

Heartbeat protocol:
