Changeover contact, maximum contact rating AC: Max. 250 VAC/0.25A
DC: Max. 30 VDC/3A
NO contact, maximum contact rating AC: Max. 250 VAC/0.25A
DC: Max. 30 VDC/1A
Suitable for switching operations of contactors with a
maximum start-up current of 10A.
6.6 Dimensions and weights
a
b
c
d
e
F

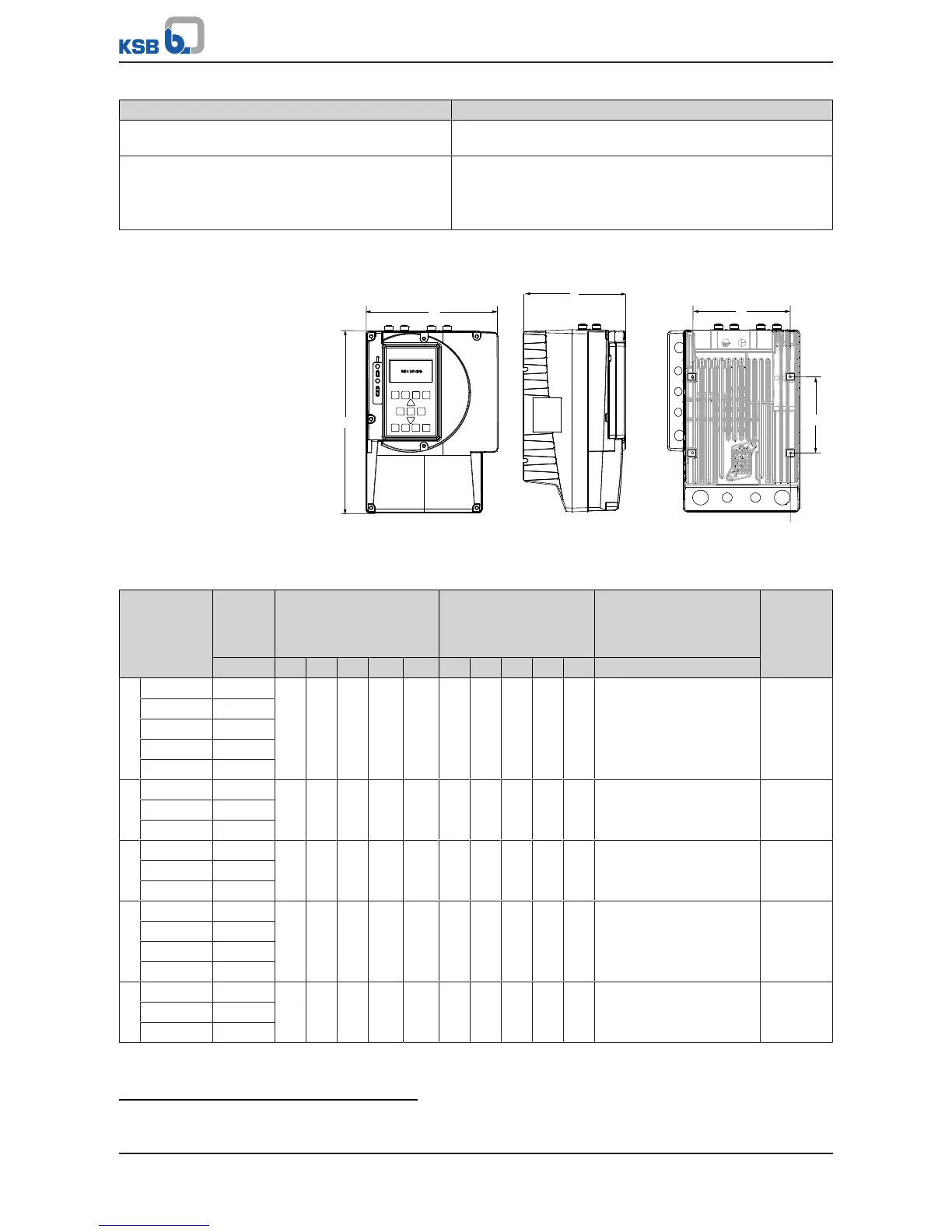

Fig.14: Dimensions
Table25: Dimensions and weights
Size P Motor-mounted model
[mm]
Wall-/
Cabinet-mounted
model
9)
[mm]
Fastening screws/bolts Weight
10)
[kg]
[kW] a b c d e a b c d e F
A ..000K37.. 0,37 260 190 166 140 141 343 190 166 140 333 M4×10 5
..000K55.. 0,55
..000K75.. 0,75
..001K10.. 1,1
..001K50.. 1,5
B ..002K20.. 2,2 290 211 166 155 121 328 211 166 155 318 M4×10 6,5
..003K00.. 3
..004K00.. 4
C ..005K500.. 5,5 330 280 210 219 205 401 280 210 219 387 M6×12 12,5
..007K500.. 7,5
..011K000.. 11
D ..15K000.. 15 460 350 290 280 309 582 350 290 280 565 M8×14 36
..18K500.. 18,5
..22K00.. 22
..30K00.. 30
E ..37K00.. 37 700 455 340 375 475 819 455 340 375 800 M8×14 60
..45K00.. 45
..55K00.. 55
9) The dimensions provided refer to PumpDrive including the wall-mounting brackets.
10) Without motor adapter
