PumpDrive 2
12.2.7 Sensor system

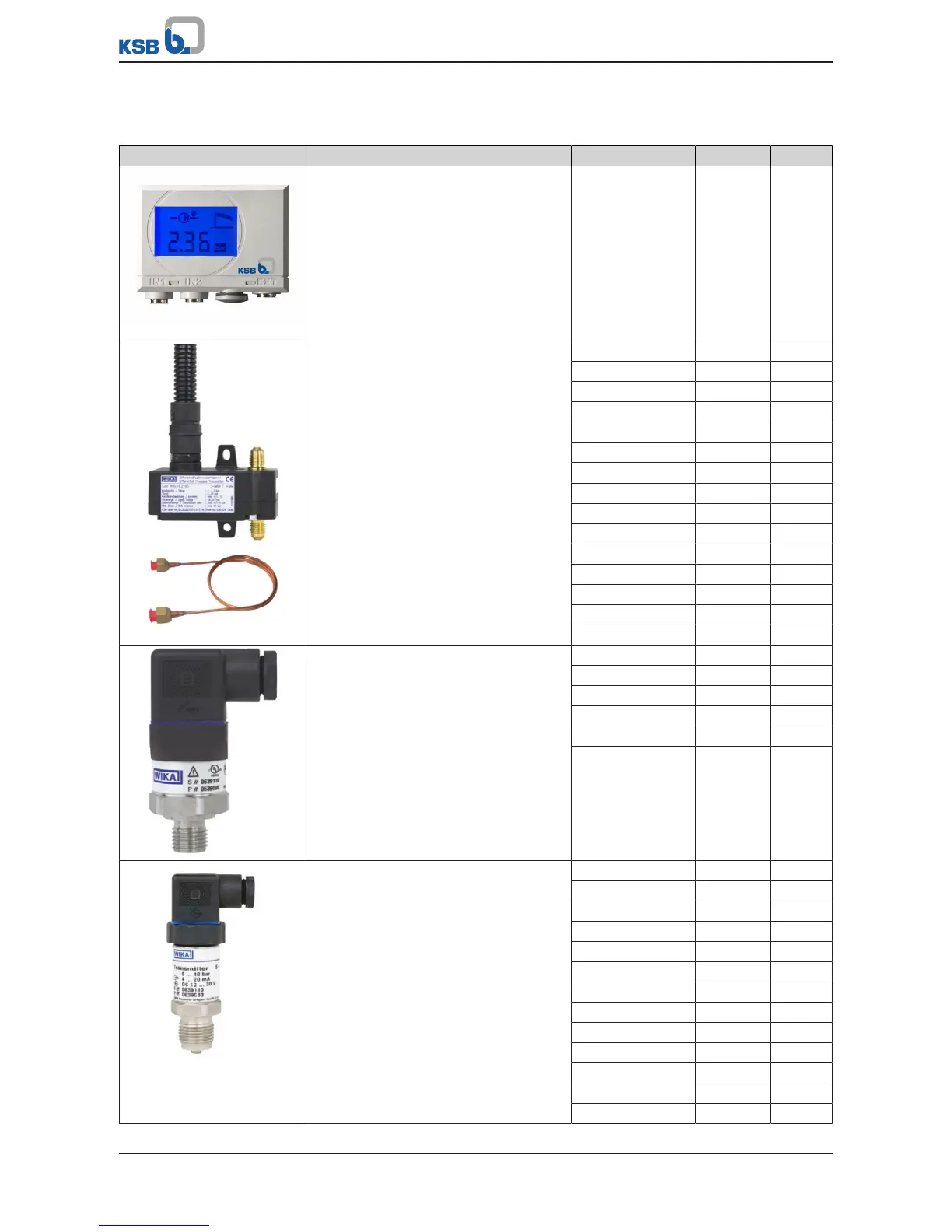

Table129: Accessories: Pressure measurement
Description Design Mat. No. [kg]
The PumpMeter device is an intelligent
pressure transmitter for pumps, with on-
site display of measured values and
operating data.
PumpMeter is parameterised at the
factory in line with pump-specific
requirements. Configuration selections
are made in KSB EasySelect.
Refer to the last section of this type series
booklet for more information.
Pump-specific - 0,1
Differential pressure transducer
With two copper-spiralled pipe sections
measuring 75cm in length for connection
to the discharge or suction nozzles,
complete with retaining plate, spiralled
pipe section and adapter, output 4to
20mA, 3-wire output, supply voltage
18to30VDC, 2.5m connection cable
Ambient temperature -10 to +50°C
Temperature of measured medium -10 to
+80°C
0 - 1 bar, RC3/8 01111180 0,3
0 - 2 bar, RC3/8 01109558 0,3
0 - 4 bar, RC3/8 01109560 0,3
0 - 6 bar, RC3/8 01109562 0,3
0 - 10 bar, RC3/8 01109585 0,3
0 - 1 bar, RC1/2 01111303 0,3
0 - 2 bar, RC1/2 01111305 0,3
0 - 4 bar, RC1/2 01111306 0,3
0 - 6 bar, RC1/2 01111307 0,3
0 - 10 bar, RC1/2 01111308 0,3
0 - 1 bar, RC 1/4 01558789 0,3
0 - 2 bar, RC 1/4 01558790 0,3
0 - 4 bar, RC 1/4 01558791 0,3
0 - 6 bar, RC 1/4 01558792 0,3
0 - 10 bar, RC 1/4 01558793 0,3
A-10 pressure transducer
For general applications, for liquid and
gaseous fluids 0to+ 80°C, measuring
accuracy smaller than or equal to 1%,
2.5% max. (at 80°C), G1/4B process
connection with Cu joint ring, IP67, 2-wire
output 4to 20mA
0 - 2 bar 01152023 0,07
0 - 5 bar 01152024 0,07
0 - 10 bar 01210880 0,4
0 - 16 bar 01073808 0,128
0 - 20 bar 01152025 0,07
0 - 50 bar 01152026 0,07
S-20 pressure transducer
For general applications in industry,
mechanical engineering and hydraulics,
Pneumatics for liquid and gaseous fluids
-30 to +100 °C, Parts in contact with the
measured medium made of CrNi steel (no
gaskets), Mechanical shock load capacity
up to 100g (IEC 60068-2-27), Vibration
load capacity at resonance up to 20g (IEC
60068-2-6), Measuring accuracy <0.5% of
measuring range, G1/2B EN837
connection, IP65 enclosure, 2-wire output
4-20mA, , Maximum line cross-section of
1.5mm², Outer line diameter of 6 to
8mm, Electrical connection via angular
connector to DIN 175301-803A
0 - 1.0 bar 01147224 0,12
0 - 1.6 bar 01147225 0,12
0 - 2.5 bar 01147226 0,12
0 - 4.0 bar 01147267 0,12
0 - 6.0 bar 01147268 0,12
0 - 10.0 bar 01147269 0,12
0 - 16.0 bar 01084305 0,159
0 - 25.0 bar 01084306 0,2
0 - 40.0 bar 01087244 0,2
-1 - 1.5 bar 01150958 0,6
-1 - 5.0 bar 01087507 0,2
-1 - 15.0 bar 01084308 0,2
-1 - 24.0 bar 01084309 0,2
