KSB PumpDrive 2 - Control Terminal Assignment

7 Installation at Site
59 of 212
PumpDrive 2

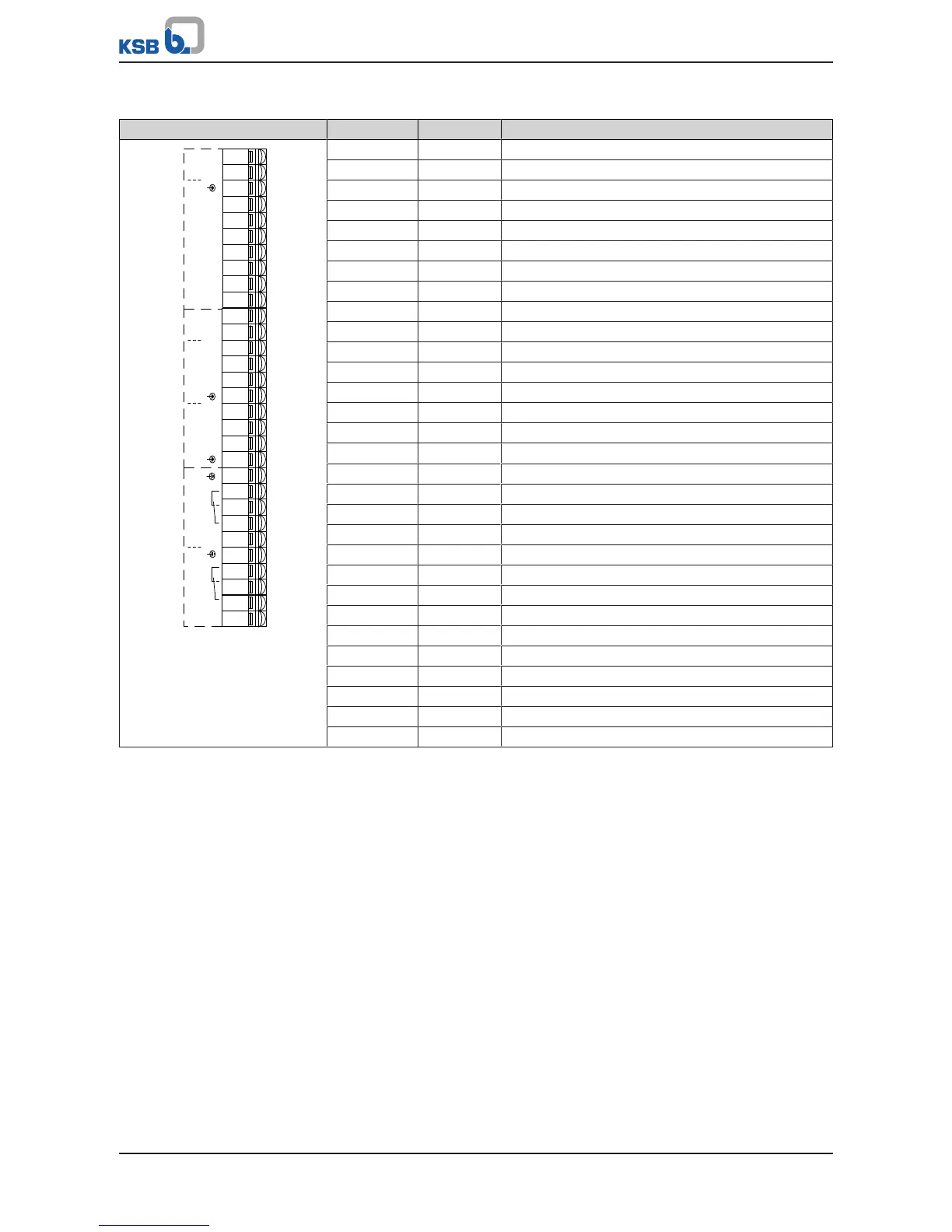

Table35: Control terminal assignment
Terminal strip Terminal Signal Description
C1
C2
C3
C4
C5
C6
C7
C8
C9
C10
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
DI-EN
+24V
GND
DI4
DI3
DI2
DI1
+24V
DICOM1
DI5
AO1-GND
AO1
AIN2 +
+24V
AIN1 +
+24V
GND
GND
COM2
NO2
COM1
NC2
+24V
GND
+24V
AIN2 -
AIN1 -
GND
NC1
NO1
C10 DI-EN Digital enable input
C9 +24V +24 V DC voltage source
C8 GND Ground
C7 DICOM1 Ground for digital inputs
C6 DI5 Digital input 5
C5 DI4 Digital input 4
C4 DI3 Digital input 3
C3 DI2 Digital input 2
C2 DI1 Digital input 1
C1 +24V +24 V DC voltage source
B10 AO1-GND Ground for AN-OUT
B9 AO1 Analog current output
B8 +24V +24 V DC voltage source
B7 AIN2 + Differential analog input HI
B6 AIN2 - Differential analog input LO
B5 GND Ground
B4 +24V +24 V DC voltage source
B3 AIN1 + Differential analog input HI
B2 AIN1 - Differential analog input LO
B1 GND Ground
A10 GND Ground
A9 NC2 Relay, NC contact, "NC" No. 2
A8 NO2 Relay, NO contact, "NO" No. 2
A7 COM2 Relay, reference "COM" No. 2
A6 +24V +24 V DC voltage source
A5 GND Ground
A4 NC1 Relay, NC contact, "NC" No. 1
A3 NO1 Relay, NO contact, "NO" No. 1
A2 COM1 Relay, reference "COM" No. 1
A1 +24V +24 V DC voltage source
Digital inputs
▪ The frequency inverter is equipped with 6 digital inputs.
▪ Digital input DI-EN is permanently programmed and is used to enable the
hardware.
▪ The functions of digital inputs DI1 to DI5 can be parameterised as required.
The digital inputs are electrically isolated. The DICOM1 reference ground for the
digital inputs is thus also electrically isolated. If the internal 24V source is used, the
internal GND must also be connected to the electrically isolated DICOM1 ground of
the digital inputs. A wire jumper can be used between GND and DICOM1 for this
purpose.
