7 Installation at Site
39 of 212
PumpDrive 2
Protective cover

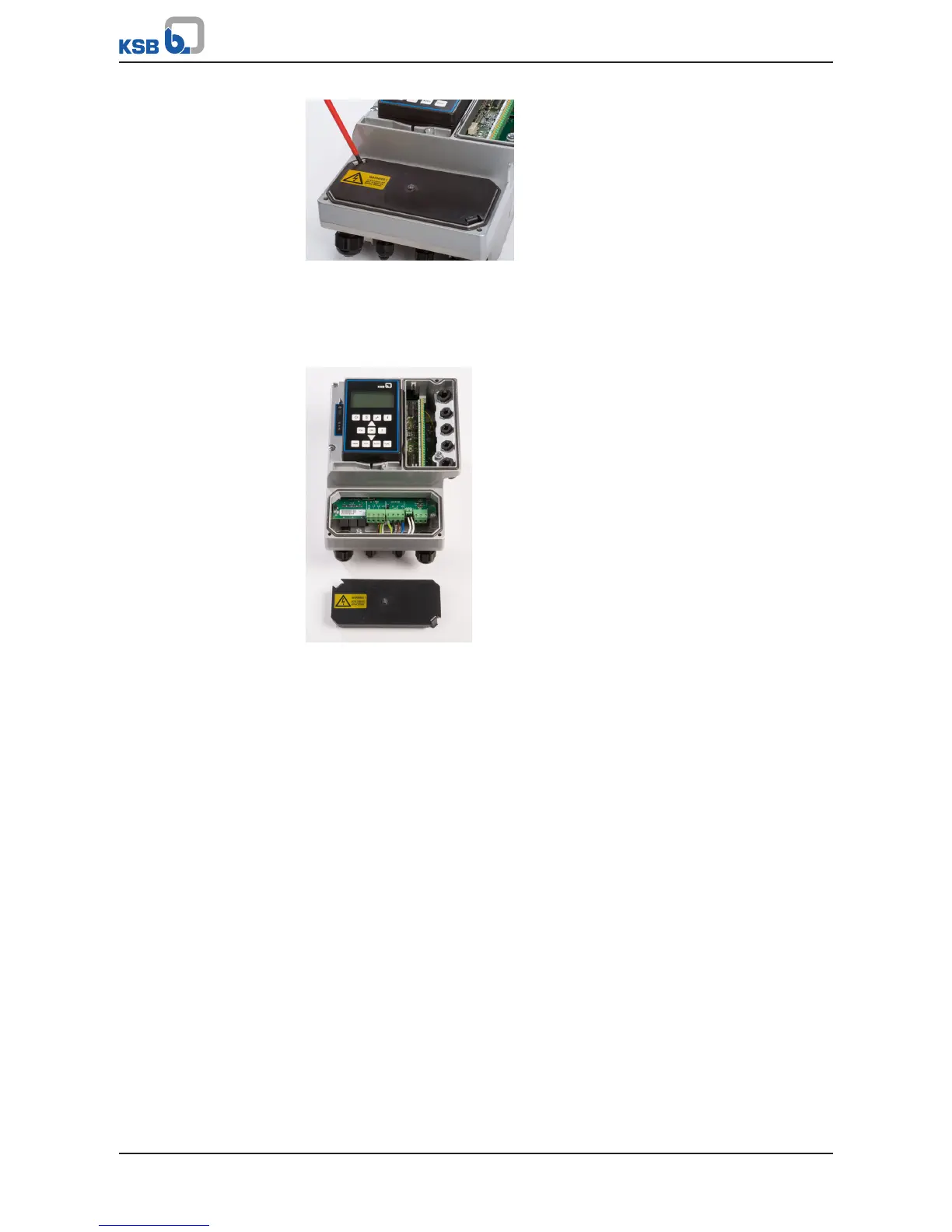

Fig.18: Prying open the protective cover
1. Sizes A, B and C: The protective cover for connecting the power and motor
connection cables is push-fit. Before connecting the power and motor
connection cables, carefully pry open the protective cover using a wide
screwdriver.
Sizes D and E:Undo the screws on the protective cover.
Fig.19: Removing the protective cover
2. Remove the protective cover.
