12.2.8 Control cabinet mounting

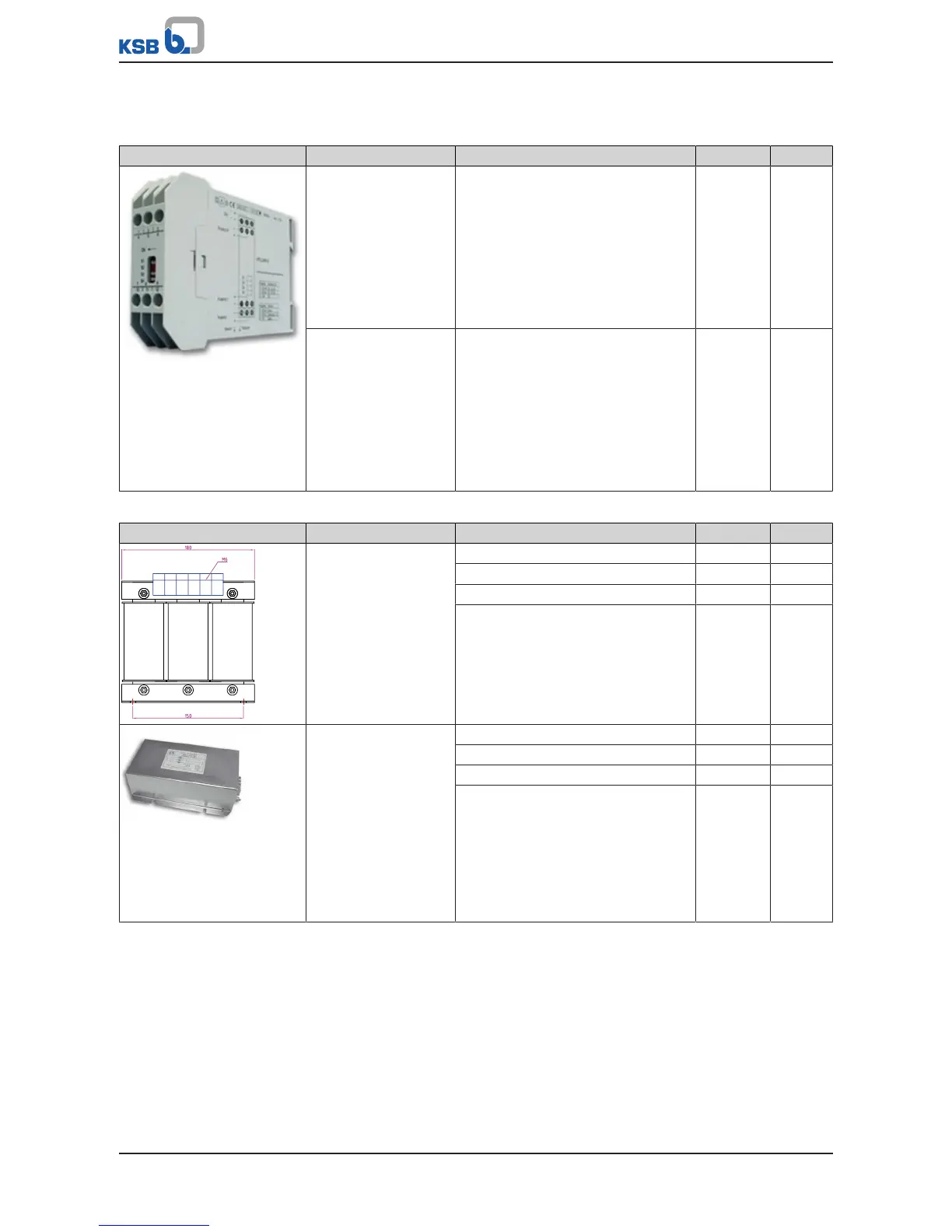

Table133: Accessories: Potential separator
Description Design Mat. No. [kg]
Potential separator
For volt-free signal
transmission between
the frequency inverter
and external
controllers.
Differences in
potential can damage
analog and digital
inputs.
Top hat rail mounting, external
supply voltage 24 V DC, IP40 housing,
IP20 terminals, 22,5 x 82 x 118,2 mm
(WxHxD)
01085905 1,2
Potential separator
For volt-free signal
transmission between
the frequency inverter
and external
controllers.
Differences in
potential can damage
analog and digital
inputs.
Top hat rail mounting, external
supply voltage 230 V AC, IP40
housing, IP20 terminals, 22,5 x 82 x
118,2 mm (WxHxD)
01086963 1,2
Table134: Accessories – Filters
Category Description Design Mat. No. [kg]
Line choke for
frequency inverter for
preventing mains
feedback
Protection of
frequency inverter
from peak voltages
IP00 enclosure
2,2 - 4 kW 01093105 3,6
5,5 - 11 kW 01093106 8,3
15 - 18,5 kW 01093107 9,17
22 - 37 kW 01093108 10,8
Output filters dv/dt for
motor cables up to
50/80m
Line chokes for
reducing
electromagnetic
interference emissions
Reduction of current
peaks in long motor
power cables
0,55 - 2,2 kW (FOVT-008B) 47121240 1,6
3 - 5,5 kW (FOVT-016B) 47121247 2,2
7,5 kW (FOVT-025B) 47121248 4,5
11 - 15 kW (FOVT-036B) 47121249 5,8
