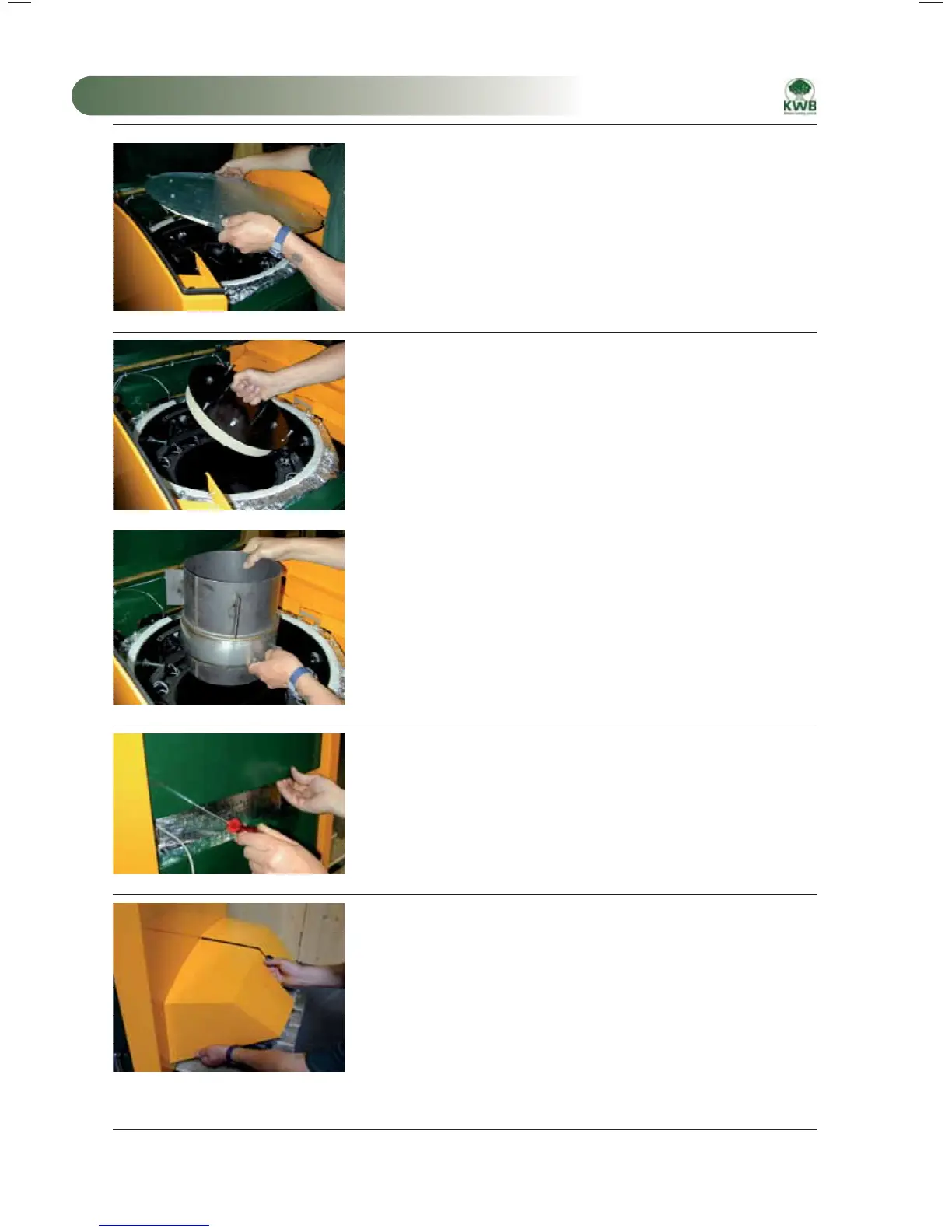

2 System installation
2 System installation
Loosen the 4 fixing screws:
Turn the boiler cover counter clockwise.
Remove the boiler cover.
Boiler cover
4.) Remove the combustion chamber parts
Remove the combustion chamber cover.
Combustion chamber cover
Lift the post-combustion ring out of the holder.
Post-combustion ring
5.) Open the junction box
Loosen the screws.
Remove the cover.
Control unit cover
6.) Dismount the burner cladding
6a Design cladding:
Slightly lift the cladding and remove it.
Loose the screws under the cover if necessary.
Design cladding
