KWB Easyfire Installation And Maintenance Manual

© KWB – Kraft und Wärme aus Biomasse GmbH IM Easyfire 10/2008 Page 15
2 System installation
2 System installation

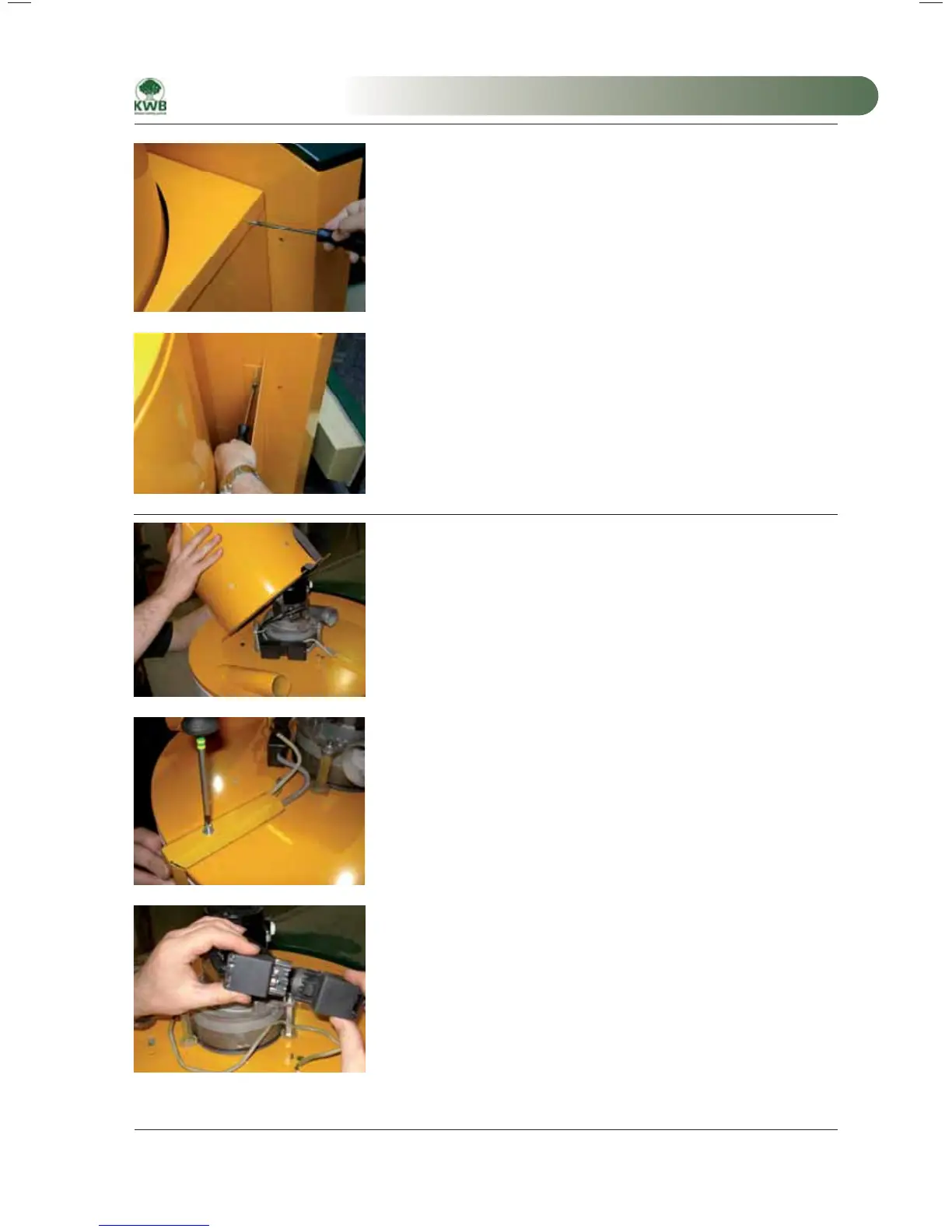

6b Suction tank GS, GL:
Loosen the screws of the cover.
Lift off the cover from the top.
Cover of the full cladding
Loosen the two fixing screws.
Unhook the full cladding.
Tip: If space is at a premium:
Remove the bolted connection of the division joint
on the full cladding.
Full cladding
7.) Dismount the suction tank GS, GL:
Loosen the 4 screws of the acoustic insulation hood.
Lift the acoustic insulation hood off from the top.
Acoustic insulation hood
Loosen the screw of the cable channel.
Pull the cable channel upward and out of the guide
Cable channel
Unplug the connector.
Suction removal
MA-Easyfire 10.2008_EN.indd 15MA-Easyfire 10.2008_EN.indd 15 30.03.2009 13:29:47 Uhr30.03.2009 13:29:47 Uhr
