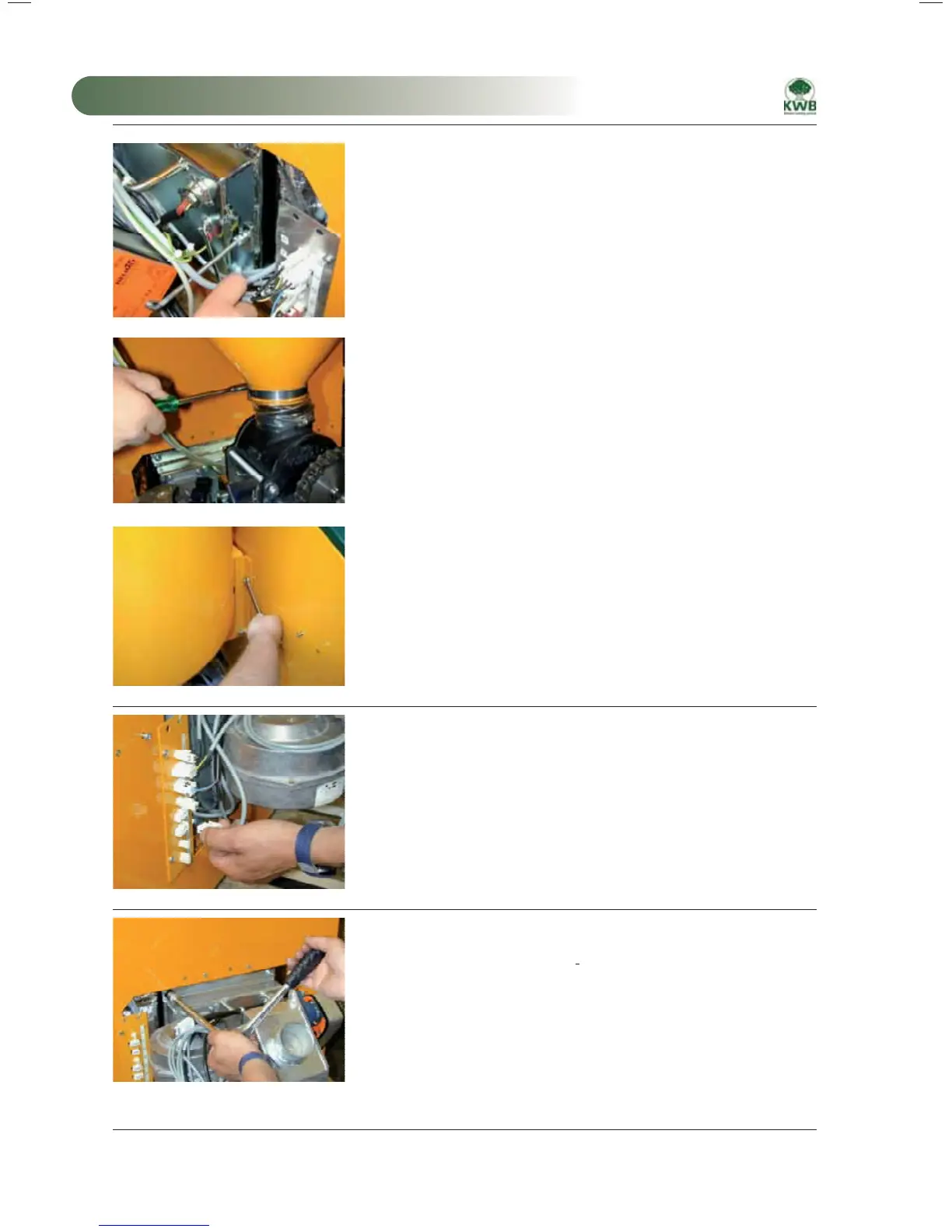

Page 16 IM Easyfire 10/2008 © KWB – Kraft und Wärme aus Biomasse GmbH

2 System installation

Disconnect the earth connection on the burner.

Unplug the plug-type connector 23 (overfill-protection sensor).

Unplug the plug-type connector

Remove the hose clamp from the connecting hose between the suction

tank and the cellular wheel sluice.

Connecting hose

Loosen the screws.

Unhook the suction tank.

Tank holder

All types

Unplug all connectors from the plug-in panel.

Unplug the connector of the radial fan.

Unplug the burner

8.) Dismantle the burner

Unscrew the burner from the boiler

Loosen the burner flange

MA-Easyfire 10.2008_EN.indd 16MA-Easyfire 10.2008_EN.indd 16 30.03.2009 13:29:48 Uhr30.03.2009 13:29:48 Uhr
