General Maintenance 91

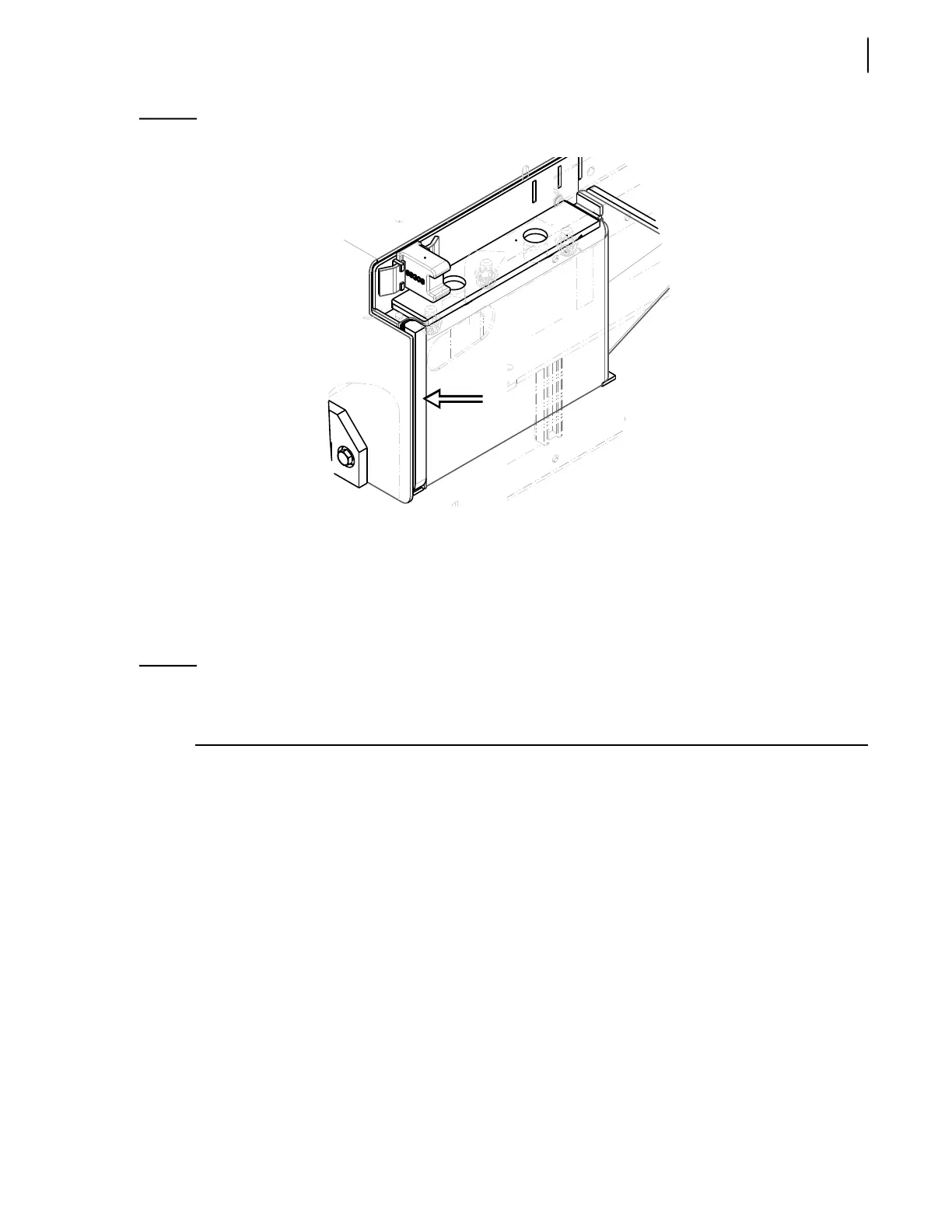

Figure 3-104
Plastic wiper blade
3. Reinstall all parts that have been removed by applying the following procedures in reverse order:
B. Removing Packer Panel - Standard Units W/O Loading Arm on page 83, B. Disconnecting Packer
- Standard Units W/O Loading Arm on page 74 and B. Accessing Packer - Standard Units W/O
Loading Arm on page 52.
4. Once finished re-assembling the removed components, lubricate and check for proper operation
of the packer.
NOTE: If the packer moves vertically by more than 3/16”, the upper wear pads must be replaced or
adjusted (see Upper Wear Pads on page 135 and Replacing and Adjusting Upper Wear Pads on
page 163).
C. Installing New Packer - Co-Mingle Units W/ Loading Arm
To install a new packer:
1. Using a lifting device, lower the new packer into the hopper, properly aligning the packer with the
floor guides.
2. Install a new wiper blade on each side of the packer (see Figure 3-105).
These wiper blades may require to be adjusted with shims to reduce the play between the blades
and the packer (see Figure 3-105 and Figure 3-257).
