Labrie EXPERT Service Manual

142 General Maintenance

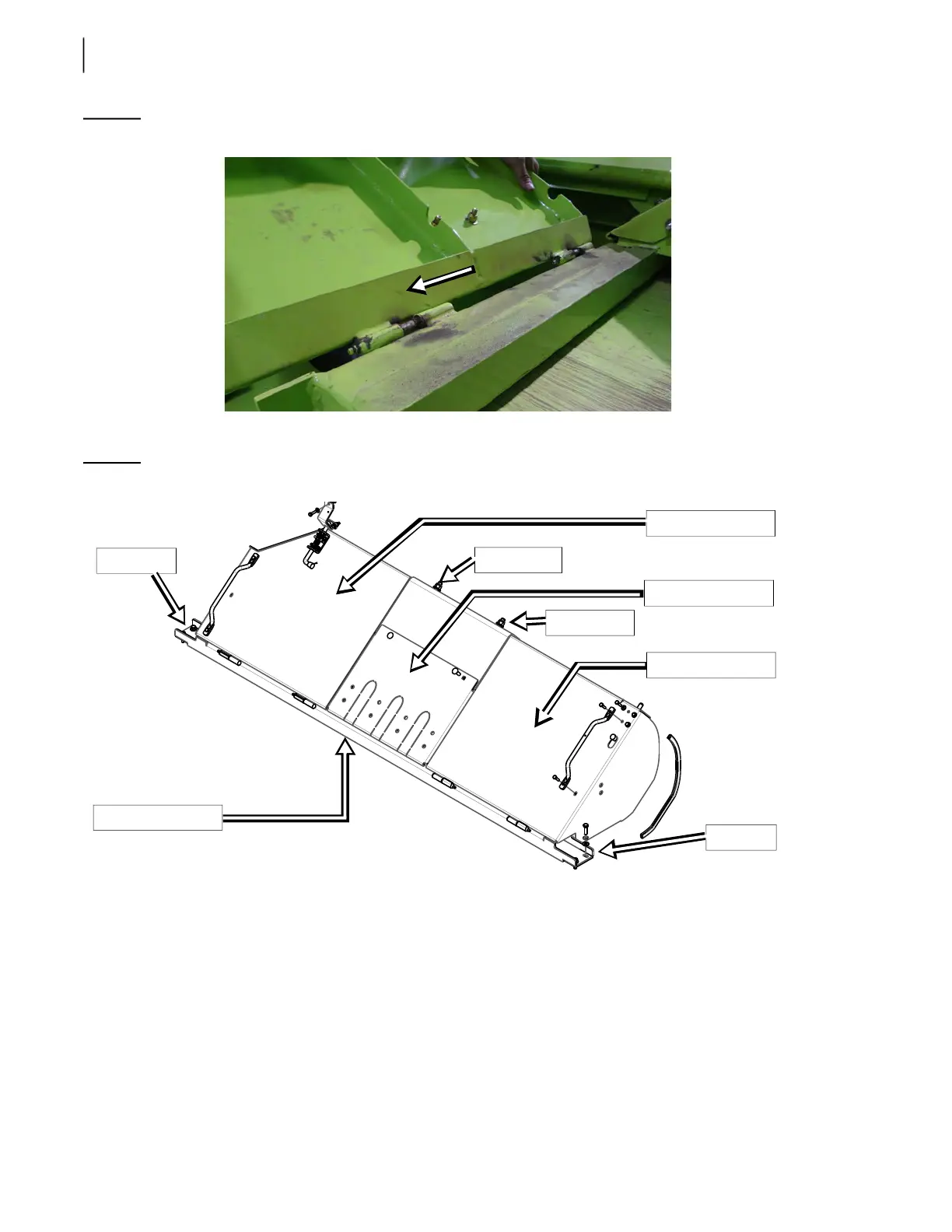

Figure 3-190 Removing RHS floating panel
8. Remove the transversal beam (see Figure 3-191).
Figure 3-191 Floating panel assembly
6 bolts are to be taken out including 2 carriage bolts to remove the beam and unloose the central
cover (see Figure 3-32).
9. Remove the upper part of both side rails (one on each side of the hopper).
6 bolts are to be taken out to remove this section of the side rail (see Figure 3-192).
Transversal beam
Central cover
RHS floating panel
LHS floating panel
Bolts (2)
Carriage bolt
Carriage bolt
Bolts (2)
