7.4.2 Open the Multiple Function Box
Open
1. Remove the middle cover (page 7-6).
2. Open the upper cover (page 7-6).
3. Use a screwdriver to turn the locks (1, fig. 30,
page 7-11) 90°
counterclockwise to release the cover of the multiple function box.
4. Pull the bottom edge of the cover toward you to open the multiple
function box.
7.4.3 Close the Multiple Function Box
Close
1. Pull the cover down to close the multiple function box.
2. Use a screwdriver to turn the locks (1) and (3) 90° clockwise.

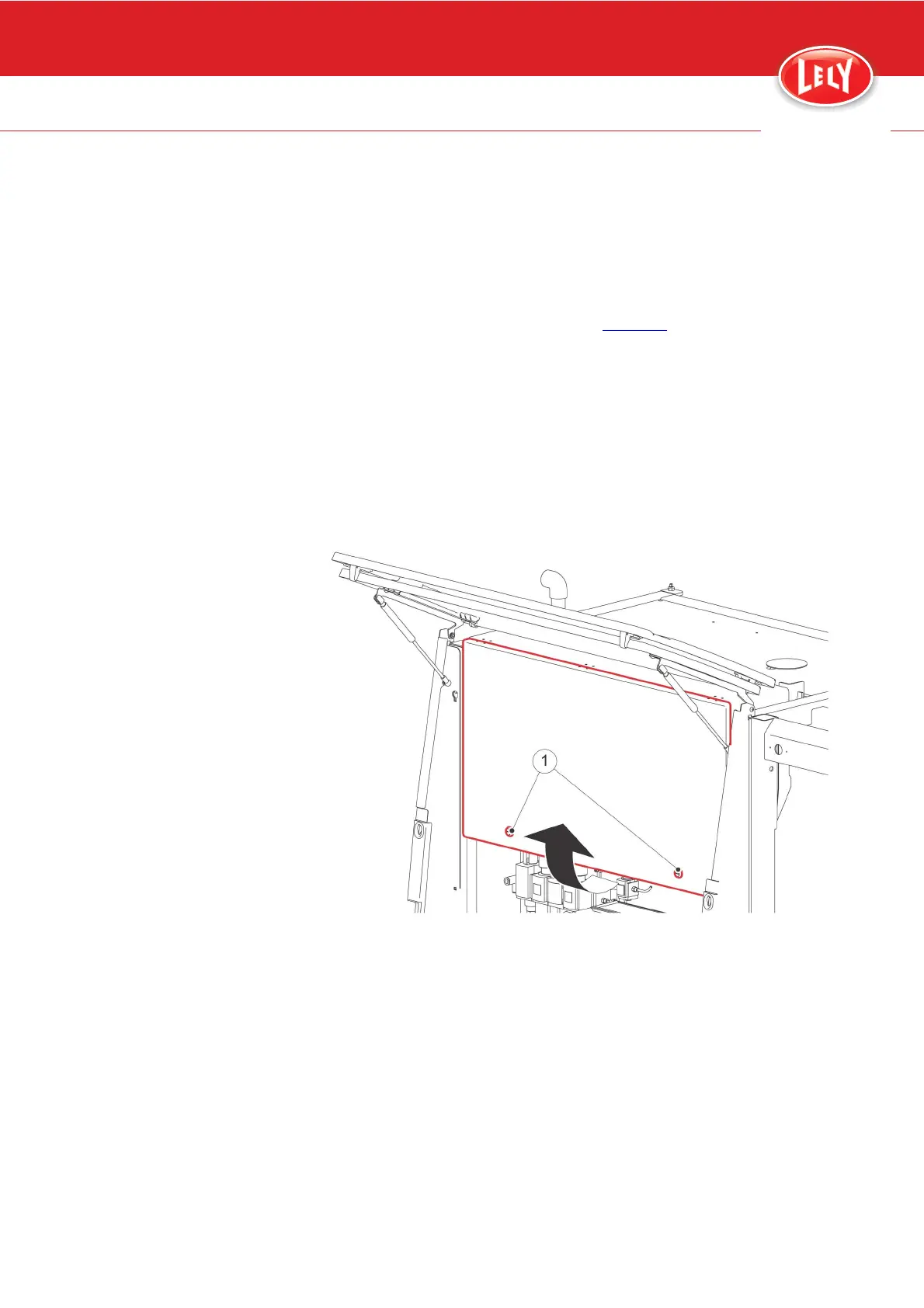

Figure 30. Open the multiple function box
