Maintenance 7-13
D-H023.0906EN
innovators in agriculture
5. Carefully move the mothership cover away from the teat cups and
the mothership.
6. Carefully put the mothership cover on the ground next to the
mothership.
Installation
CAUTION
Make sure the sTDS cable does not get stuck between the mothership and the
mothership cover.
1. Carefully position the mothership cover (3, fig. 32, page 7-13) on
the mothership.
2. Tighten the two bolts (1) and (2).
3. Install the threaded bracket (5) and the screw (6).
4. Install the lower arm cover (page 7-12).

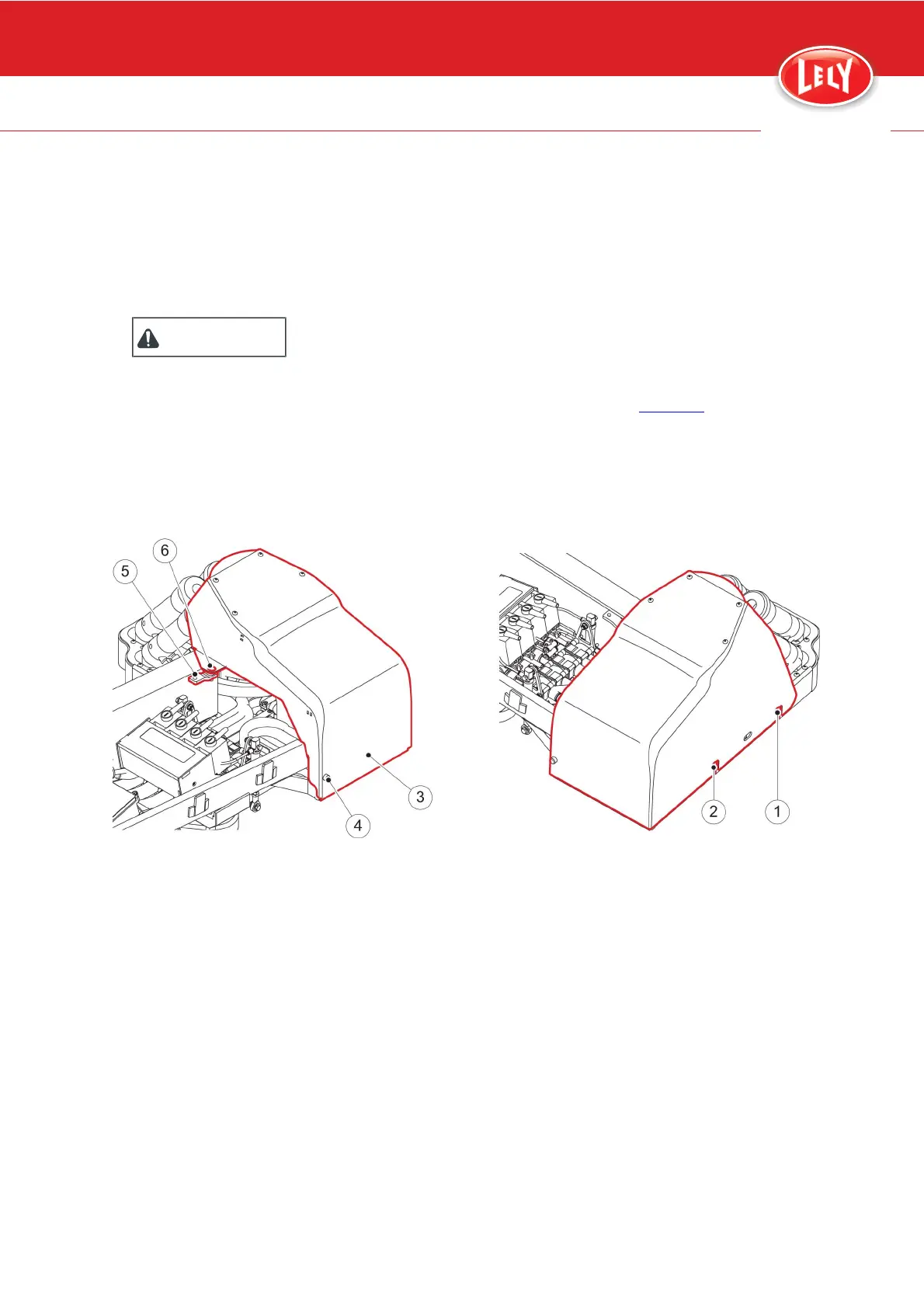

Figure 32. Remove or install the Mothership Cover
7.5 Box
There are no maintenance procedures for the box.
