7-6 Maintenance
D-H023.0906EN
innovators in agriculture

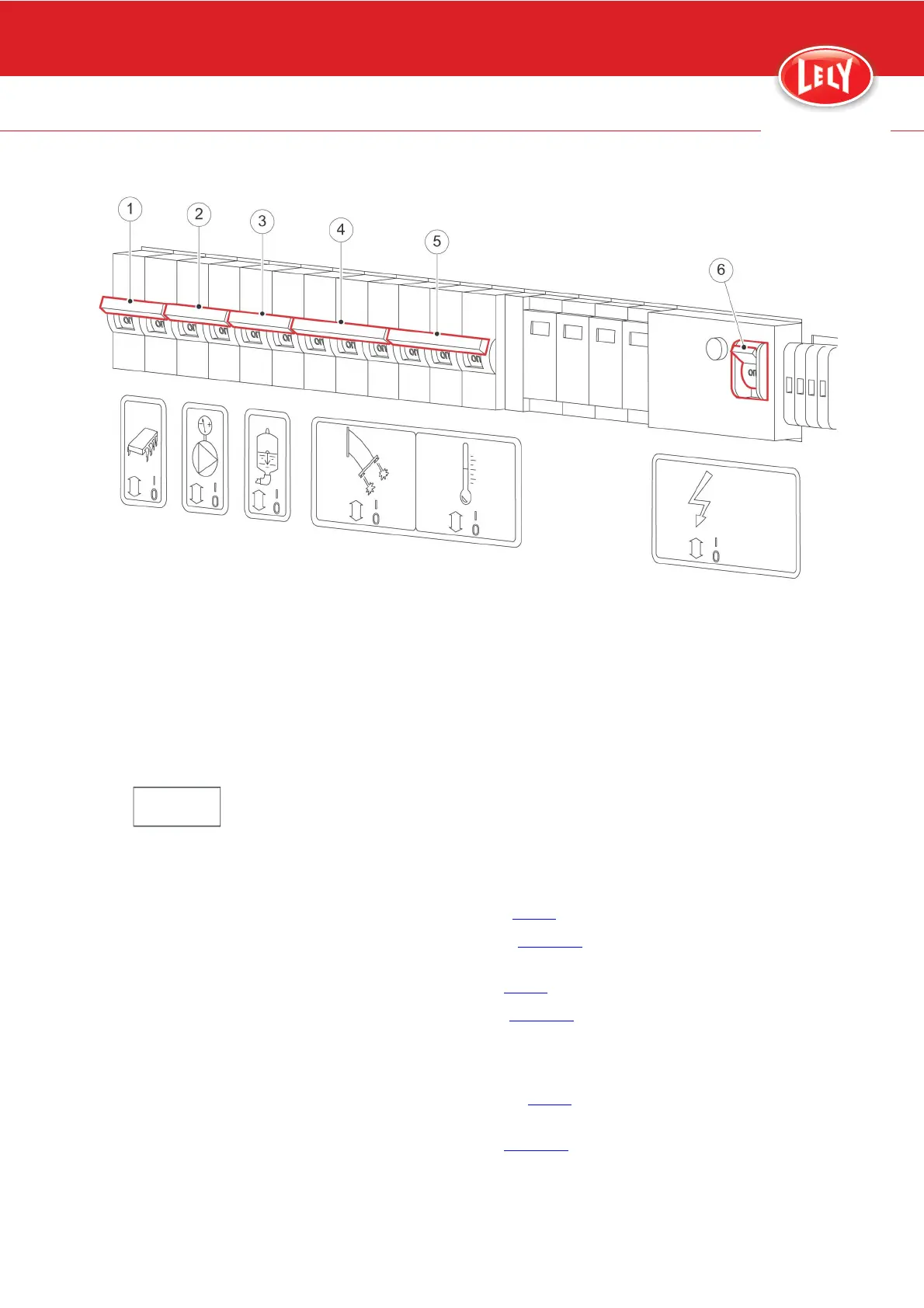

Figure 23. Switch OFF or ON the circuit breakers
7.4 Covers and Doors
7.4.1 Remove or Install the Covers on the Robot Arm Side
Middle and lower cover
Note:
Both middle and lower cover must be removed to get access to the major
parts of the milk system.
Removal
1. Push the middle cover (fig. 24
, page 7-7) up and pull it toward you.
2. Hang the middle cover (3, fig. 29,
page 7-10) with the brackets (1)
on the upper cover (2).
3. Push the lower cover (fig. 26
, page 7-8) up and pull it toward you.
4. Hang the lower cover (4, fig. 29,
page 7-10) with the brackets (1) on
the middle cover (3).
Installation
1. Remove the lower cover (fig. 29
, page 7-10) from its position on the
middle cover.
2. Push the lower cover (2, fig. 27,
page 7-9) with its pins into the
corresponding holes (1) in the frame and push it down.
