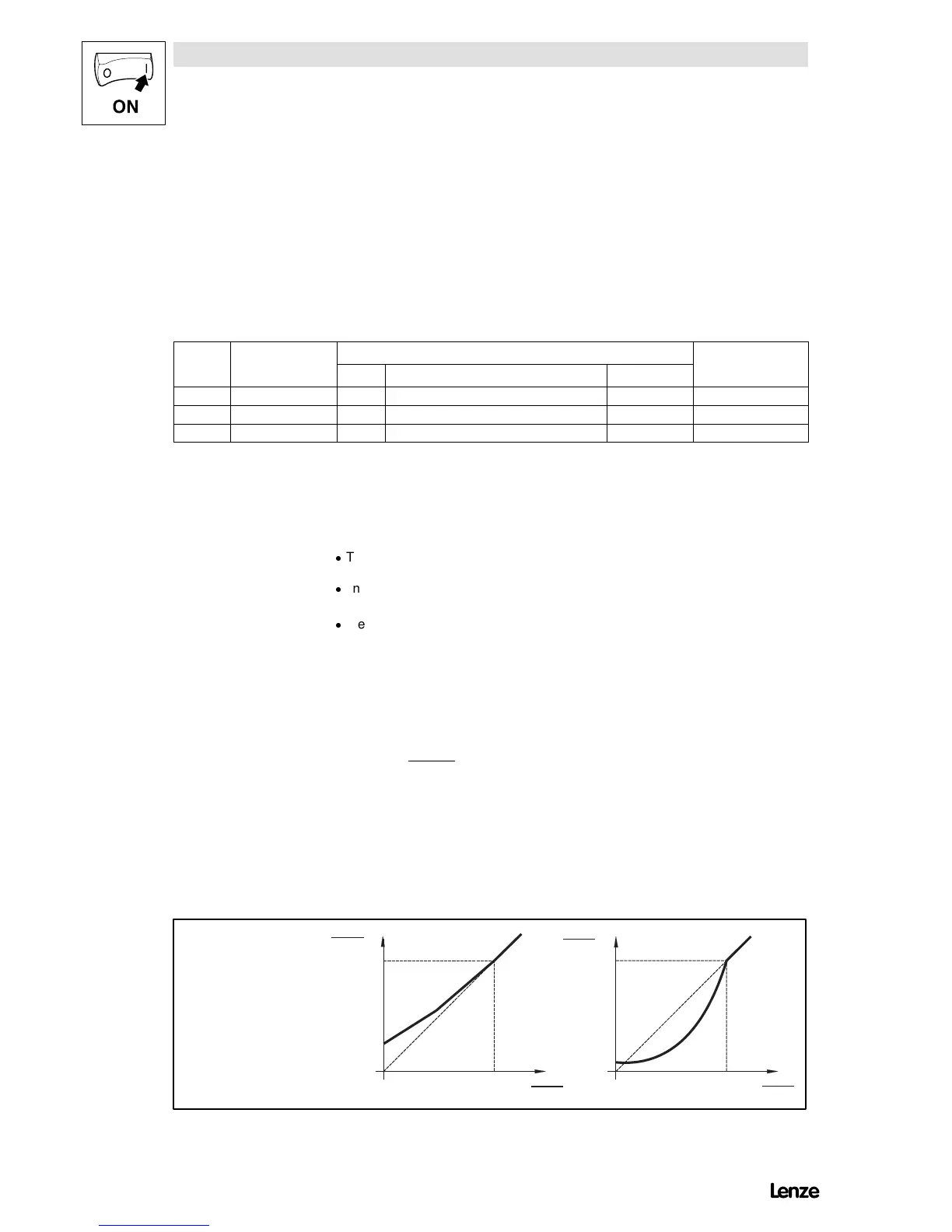

Lenze 8200 - Page 116

Commissioning
8200SHB01995-10
5.4.2.2 Optimise V/f-characteristic control with auto boost
(C014 = -0-/-1-)
821X/822X/824X setting range: Function is not available
820X setting range:
Required codes
Code Name Possible settings IMPORTANT
Lenze Choice Info
C015 V/f-rated frequency 50.00 30.00 {0.05 Hz} 960.00
C016 V
min
setting * 0.00 {0.02 %} 40.00 *depends on the unit
C021 Slip compensation 0.0 0.0 {0.1 %} 12.0
Setting sequence
1.If necessary, select V/f
characteristic with auto boost
(C014 = -0- or -1-).
2.Select V/f-rated frequency
(C015).
- The V/f-rated frequency determines the slope of the V/f characteristic and has considerable
influence on the current, torque and power performance of the motor.
- An internal mains voltage compensation compensates deviations in the mains during operation.
Therefore, they donot have to be considered for the setting of C015.
- Use standard motors with 230/400 V with a connection, since with an input voltage of 230 V a
max. of 3AC 230 V is at the output.
Adjustment
Calculate the frequency to be set under C015:
C015 [Hz] 
230 V
V
rmotor
[V]
ô f
dr
[Hz]
V
rmotor
Rated voltage to motor nameplate [V]
Observe the connection mode (e.g. with a
motor voltage to nameplate 230/400 V / D
V
rmotor
= 230 V AC.
f
dr
Rated frequency to motor nameplate [Hz]
C014 = -0-
Linear characteristic
C014 = -1-
Square characteristic (e.g. for pumps, fans)
out
r m o to r
V
V
1
V
min
0
0
1
C 015
f
d r m otor
out
r m o to r
V
V
V
min
0
0
1
C 015
f
d r m otor
K 35.0066G B
