Doc #: L-2600-1023 Page 66 Rev. 02
The “Rod/Stroke Units” can be changed at any time between inches and millimeters. The “Rod Length”
and “Stroke Length” values are automatically converted when the unit is changed and the “Distance to
Bottom”, if displayed in the top info area, is also converted to the new unit that was selected.
4.11.3 Setting the Date and Time
The operator terminal contains a real time clock.
To set the time and date, press the
Set Date and Time softkey shown in Figure 56. The
screen of Figure 57 will be displayed. Set the date
and time to the desired values and then press the
Enter softkey to keep the changes. Note that the
date and time change only occur at the time the
Enter softkey is actually pressed. Press the Cancel
softkey to abandon any changes and keep the
current date and time.
4.11.4 Access Configuration
As described in section 3.1.7 on page 14 the user
must gain Access Control in order to perform
certain operations and change certain parameters.
This access control can be obtained by two means,
RUN/PROG key or a user password system.
These two means can be used alone or in
combination with each other.
Press the Access Config softkey from the Operator
Terminal Configuration screen (see Figure 56) will
display the Access Configuration screen shown in
Figure 58.
In addition to some basic parameters that determine
how access control will work, this screen lists the
“Users” that can operate the system. Note that “Users” are ignored if the “Access Mode” is set to “Key
Only”. The Next Page and Previous Page softkeys are used to page through up to 16 possible “Users”.
The following sections discuss the parameters and features of this screen.
4.11.4.1 Access Mode Configuration
There are four access modes. These are “Key and Code”, “Code Only”, ” Key or Code”, and “Key
Only”. These modes are explained in section 3.1.7 on page 14.
Cancel
After the Date and Time are set, press “Enter” to update
the clock or “Cancel” to exit this screen without changing
the clock.
Operator
Terminal
Enter
Month
Day Year
Hour Minute Second
/
/
::
7 15 2009
12 35 17 PM
0.0
Cycle
Rate
Part Count
ACC
Espanol
CPM
3600
Mode:
Production

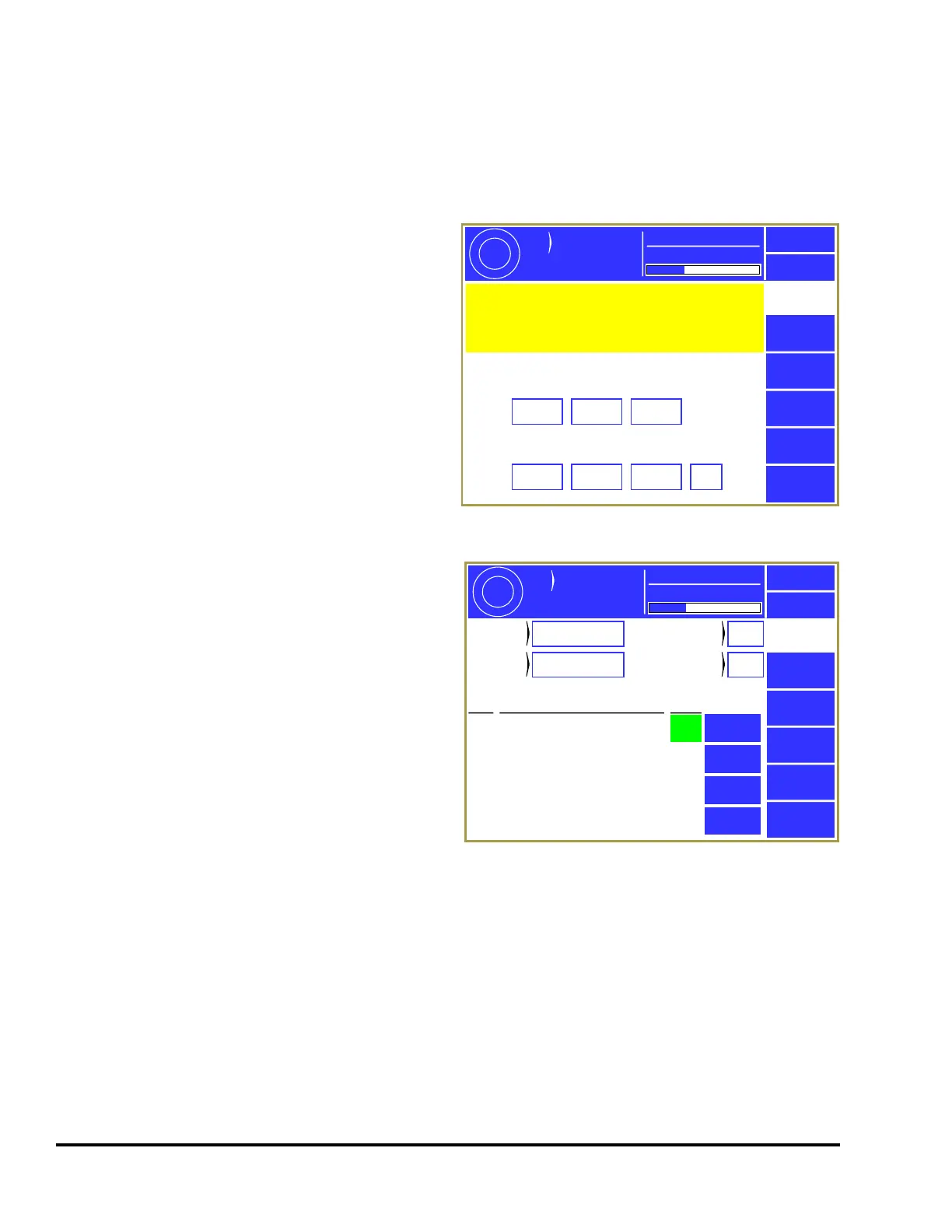

Figure 57: Date and Time Setting Screen
Exit
Key OR Code
Access
Config
Restrict /
Unrestrict
Next Page
Access
Mode
Access
Timeout
1
2
3
4
Edit
30 sec
0
Store
Job Code
Access
Strokes
5
Set Config
Code
Num
Edit
Edit
Edit
UsedUser Description
User 1
User 2
User 3
User 4
Yes
No
No
No
0.0
Cycle
Rate
Part Count
ACC
Espanol
CPM
3600
Mode:
Production
Figure 58: Access Configuration Screen
