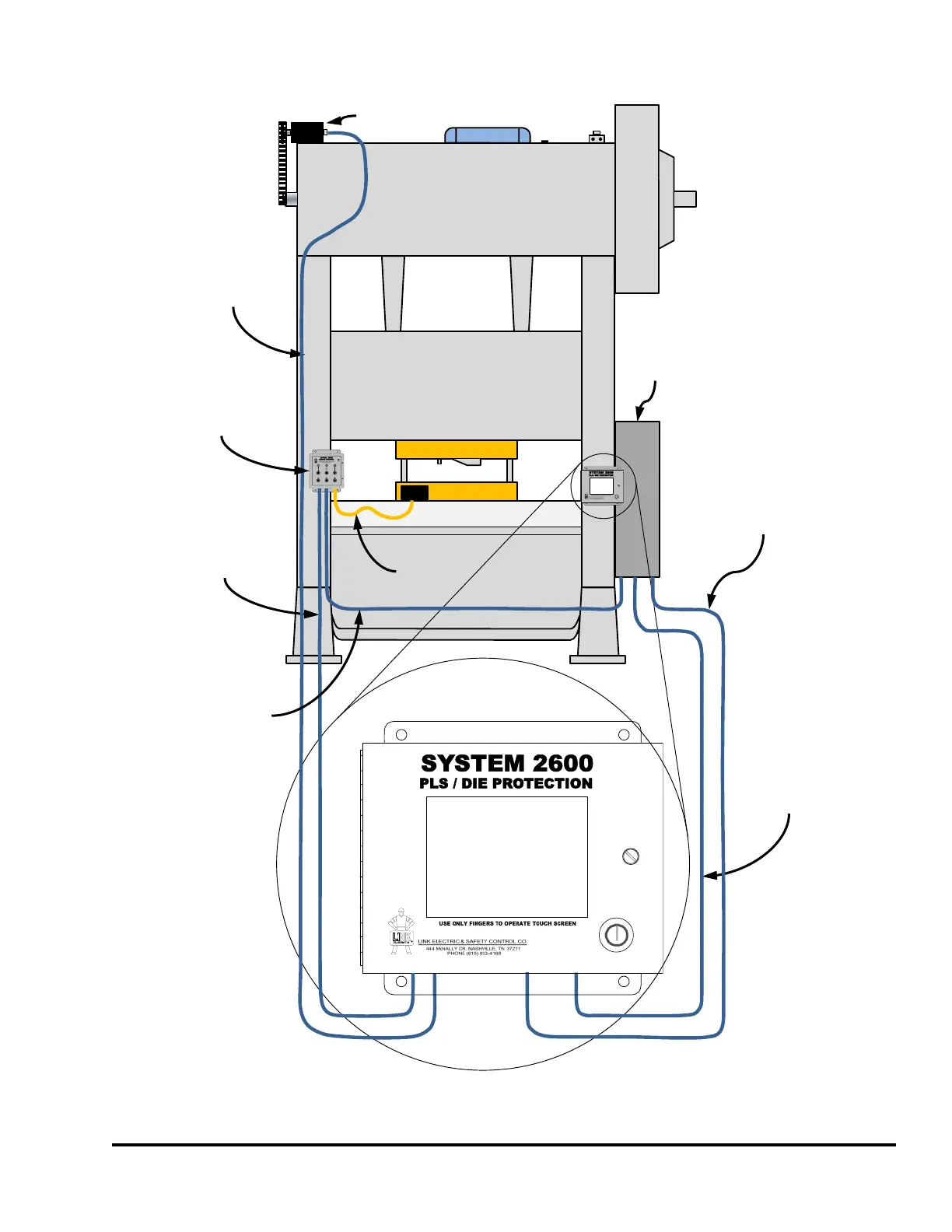

Link 2600 - Figure 75: General View of Wiring Runs for Installation

Doc #: L-2600-1023 Page 85 Rev. 02
Encoder
Press
Press
Control
½” flexible liquid
tight conduit with
ground for 115VAC
from press control
Transformer and
connections to
stop outputs.
½” flexible
liquid tight
conduit with
ground for
any optional
low voltage
connections:
setup mode
input etc.
½” flexible
liquid tight
conduit with
ground for
5100-11
encoder
cable.
½” flexible
liquid tight
conduit with
ground for
Die Protection
Inputs
RUN
PROG
RUN
PROG
Model 2620
Powered
Sensor
Interface
½” flexible
liquid tight
conduit with
ground for
115VAC
from press
control
transformer
to power
Sensor
Interface
flexible cable to die
mounted junction box
Figure 75: General View of Wiring Runs for Installation
