Link 2600 - Wiring Power for the System; Figure 76: 2600-2 Board Connections

Doc #: L-2600-1023 Page 86 Rev. 02
7.5.2 Wiring Power for the System
WARNING:
National Codes and standard (NEC, VDE, BSI, etc.) and local codes
outline provisions for safely installing electrical equipment. Installation
must comply with specifications regarding wire types, conductor sizes,
branch circuit protection, and disconnect devices. Failure to do so may
result in personal injury and/or equipment damage.
The System 2600 can be powered from 120VAC, 240VAC, or +24VDC. +24VDC is sometimes used
when building low voltage panels for Arc Flash compliance.
Pull wires with the appropriate color code in conduit between the System 2600 enclosure and the press
control. Remember to run high voltage wiring in one conduit and low voltage wiring in a separate
conduit.
The control transformer in the press control will preferably be used to supply the 120VAC power for the
System 2600. Make sure the control transformer will be able to supply the necessary power (about
17VA or 0.15 Amps at 120VAC). If not, an additional control transformer will be needed.
WARNING:
The System 2600 can be powered from EITHER 100-240 VAC OR
+24VDC. Never hook up both AC and DC power at the same time.
The +24VDC power input is provided to allow low voltage for Arc
Flash compliance.
2600-2 Board
Top Stop
Relay
+24
-T
+T +R
-R
GND SLD
FUSE 5X20
E-Stop
Relay
Power Supply
WARNING
Hazardous Voltage
Contact may cause Injury or death. Remove power Before servicing.
FUSE 5X20
Fuse for +24VDC
(250VAC 2 Amp)
Fuse for
AC L1
(250VAC
2 Amp)
Auxiliary
Inputs
Connector
Encoder
Connector
Ribbon Cable
Connector
(to 1200-1
Board)
L1 L2
PE
+24
GND
+24V
GND
I1 I2 I3 I4 I5
T-STOP
E-STOP
Power Connector
Top Stop Connections
Immediate Stop Connections
Run/Stop Connector
IN1 IN2 IN3 IN4 IN5 IN6 GND +24V
+RY CRY BRY ARY
Relays
Connector
Die Protection
Inputs
Connector
RUN
RUN (Clutch/Brake)
Connections

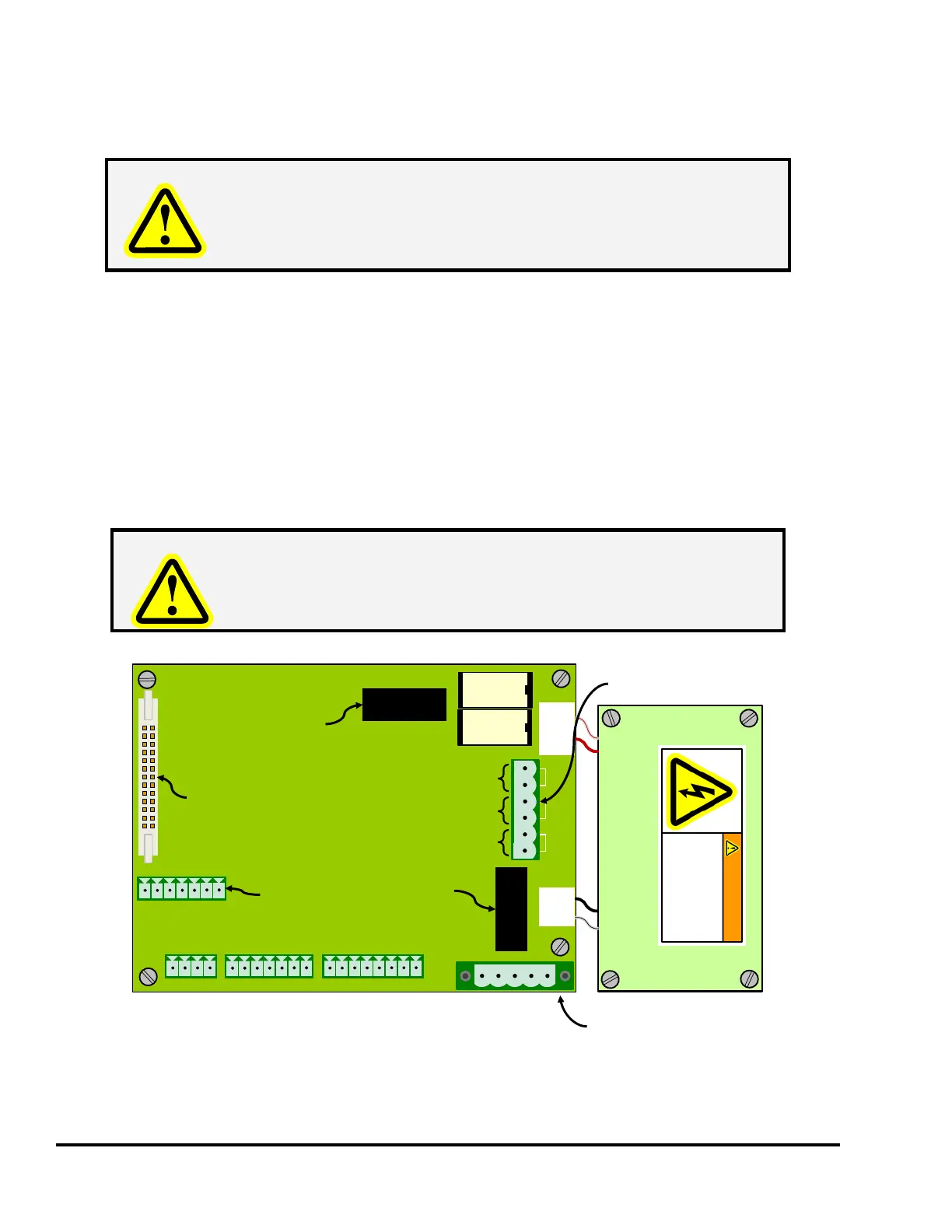

Figure 76: 2600-2 Board Connections
