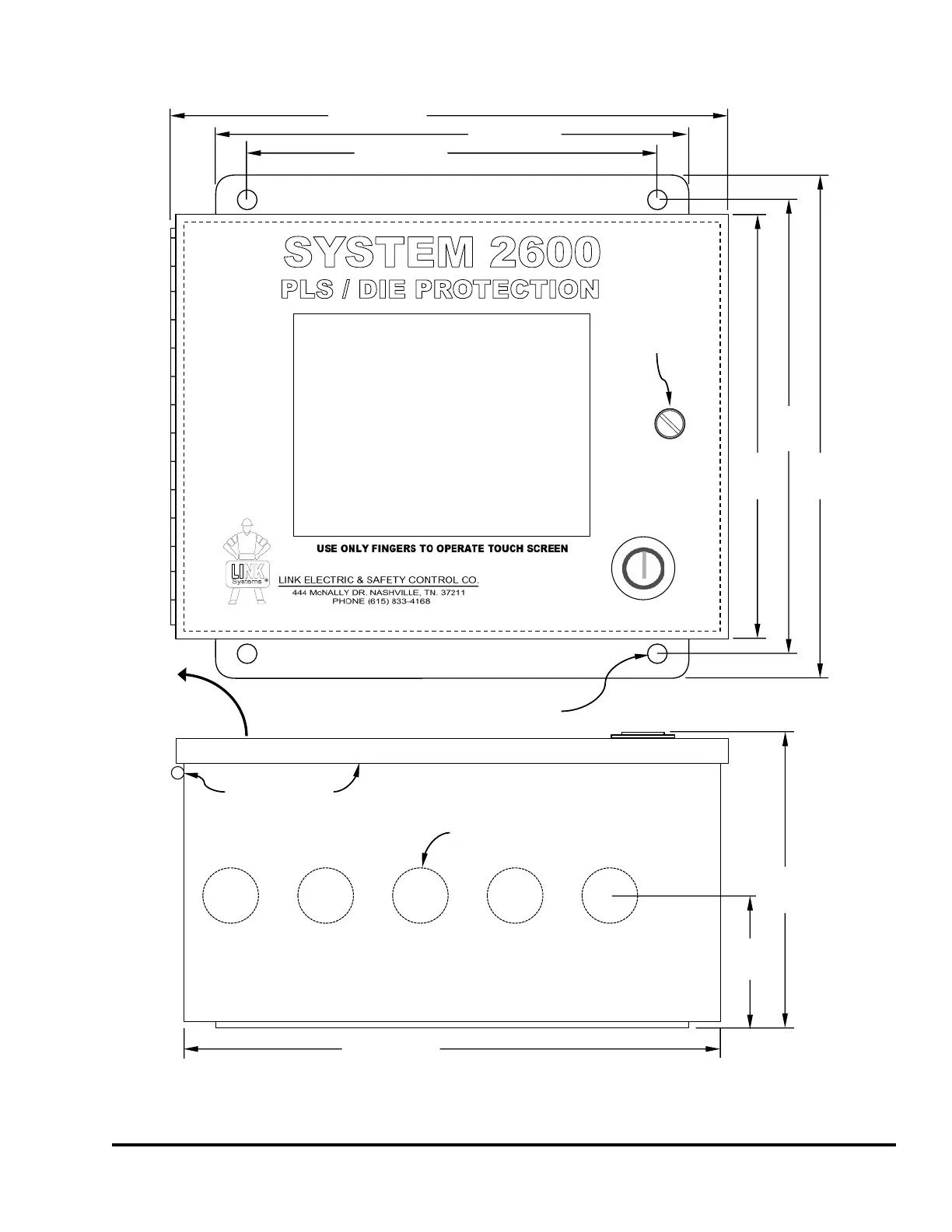

Link 2600 - Figure 69: Enclosure Dimensions

Doc #: L-2600-1023 Page 79 Rev. 02
7.25”
(184)
8.8” (223)
6.75”
(171)
7.5” (190)
6.5” (165)
Values in parentheses
are in millimeters
Door Latch
0.31” (7.9)
diameter
(4 places)
8”
(203)
Hinge
Door
8.5” (216)
4.6”
(117)
Door
Opens
7/8 Knockouts
(5 places)
2”
(51)
RUN
PROG
Figure 69: Enclosure Dimensions
