3-87

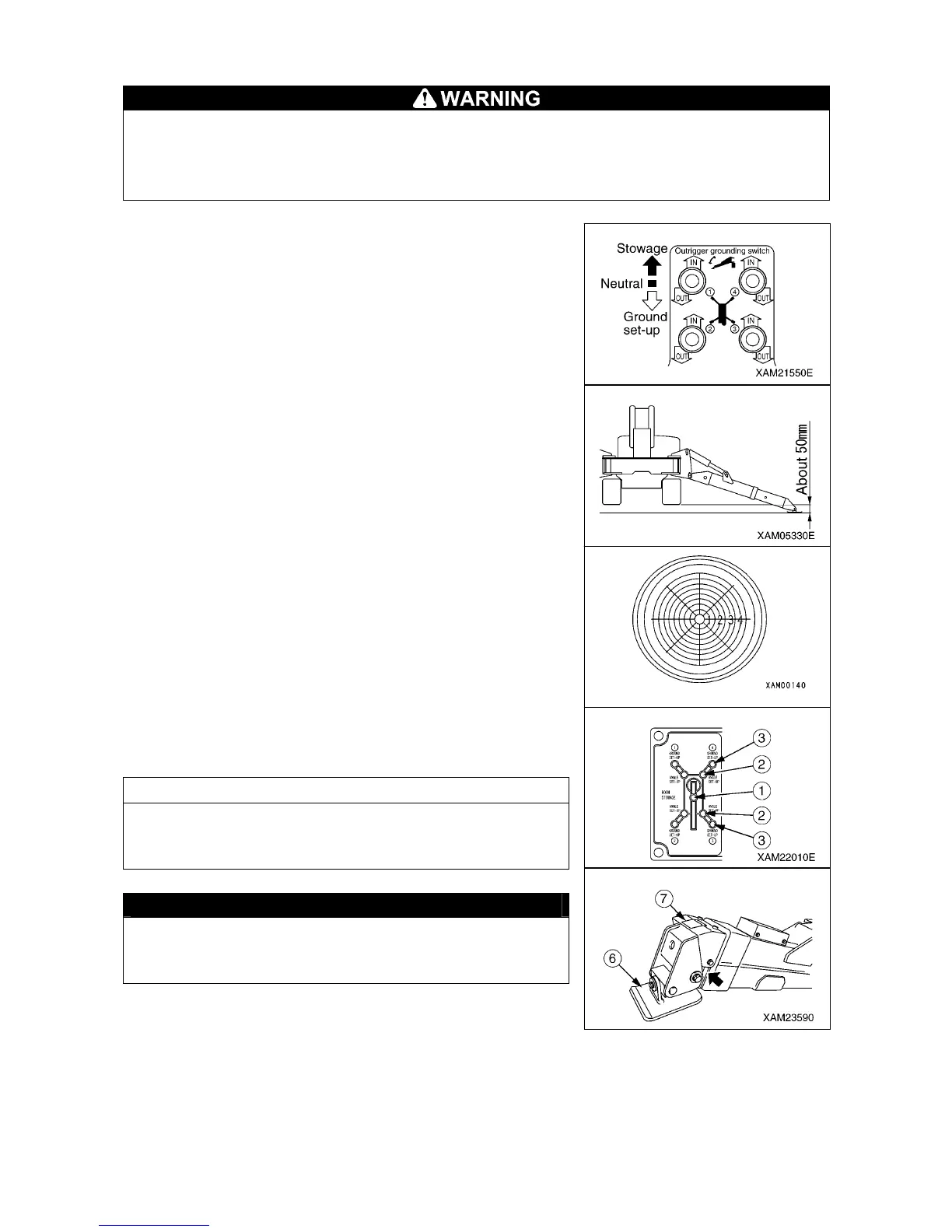

When operating two outrigger setting switches at the same time, choose two front switches
(outrigger (1) and (4)) or two rear switches (outrigger (2) and (3)). Operating two left or right
switches at the same time will suddenly raise two outriggers on one side, causing overturning
of the machine.
6. After all the trays were set, push down an outrigger setting
switch or two of them at the same time to the “OUT” (downward)
position.
When the setting cylinder extends and the machine is slightly
raised, set the switch to the “NEUTRAL” position.
Operate the remaining switches in the same way so that the four
outriggers are raised to the same height. Set the switch to the
“NEUTRAL” position.
Repeat this operation to gradually raise the machine until the
rubber tracks will be at the height of about 50 mm above the
ground.
7. When the machine was raised to about 50 mm above the ground,
operate the outrigger operation switches while checking the
position of the bubble in the level to adjust the machine to be
leveled.
8. After setting the outriggers, operate all the outrigger operation
switches to the “NEUTRAL” position.
9. Verify that the four outrigger setting lamps (3) (green) on the
outrigger display are ON.
NOTES
On the outrigger display, all the boom stowing lamp (1), four
outrigger extension lamps (2), and four outrigger setting lamps
(3) are illuminated in green.
CAUTION
If any of the setting lamps (3) is flashing in red, remove the
cover (7) of the outrigger tray (6) and check if there is any
foreign object pinched in the bending section.
