[2] TASKS TO BE PERFORMED UPON ENGINE STOP

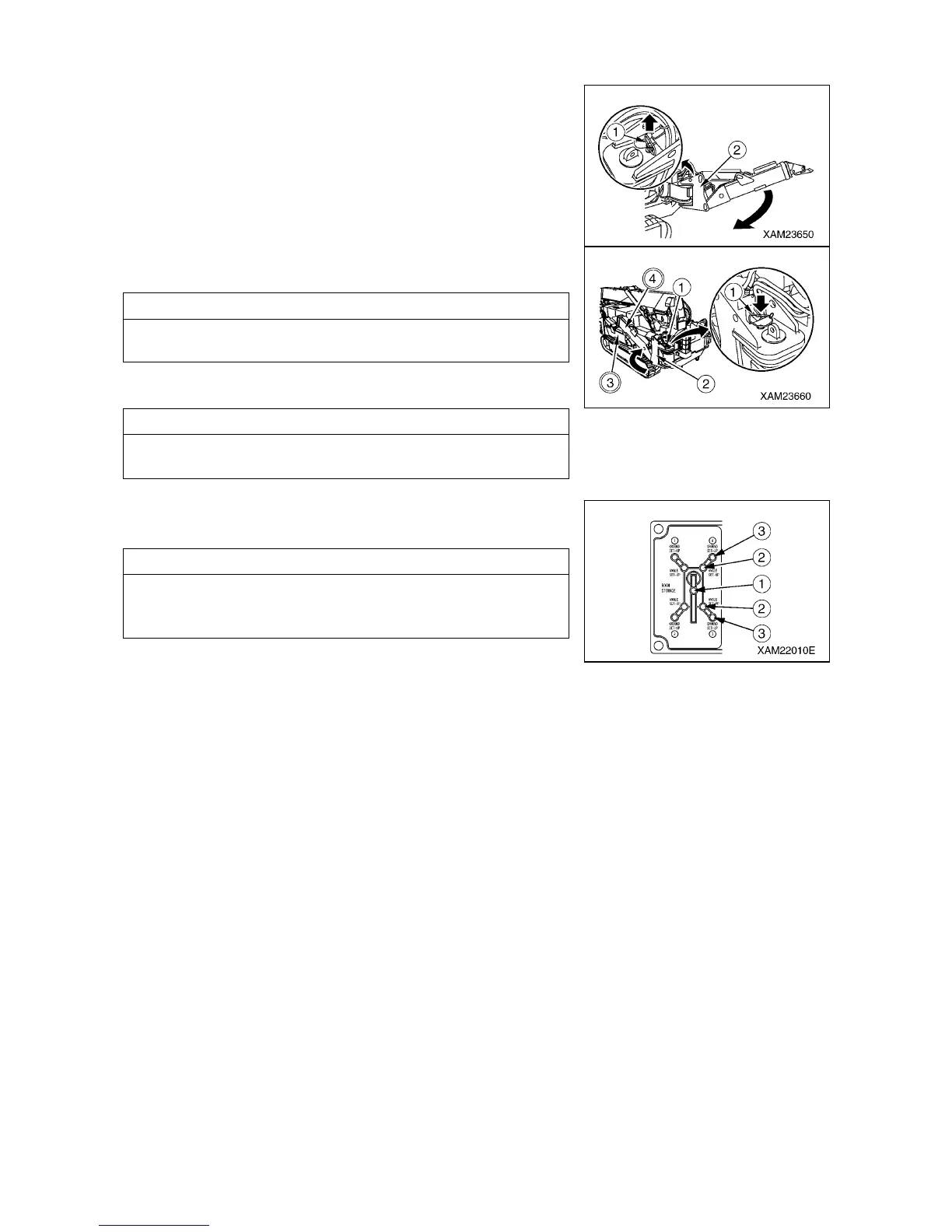

1. Pull the position pin (1) out of the rotary (2) and rotate the rotary
inward.
2. Insert the position pin (1) to the end at the position where the pin
holes are aligned after rotating the rotary (2) inward.
NOTES
The position pin (1) has a wire to prevent the loss of the pin.
3. Stow the other three outriggers in the same way.
NOTES
After stowing the outriggers, verify that the position pin (1) is
securely inserted.
4. Verify that the four outrigger extension lamps (2) on the
outrigger display went off.
NOTES
On the outrigger display, the boom stowing lamp (1) (green) is
illuminated and four outrigger extension lamps (2) and four
outrigger setting lamps (3) are flashing in red.
To Next Page
