[REMOVAL WINCH WIRE ROPE]
Use the following procedure to remove the wire rope.
1. Place the machine on a level and firm surface.
2. Place the boom telescoping lever in the “Extend” position (push
it toward the front) to extend the boom slightly.
3. Place the winch lever in the “Down” position (push it toward the
front) to lift down the hook block on the ground.

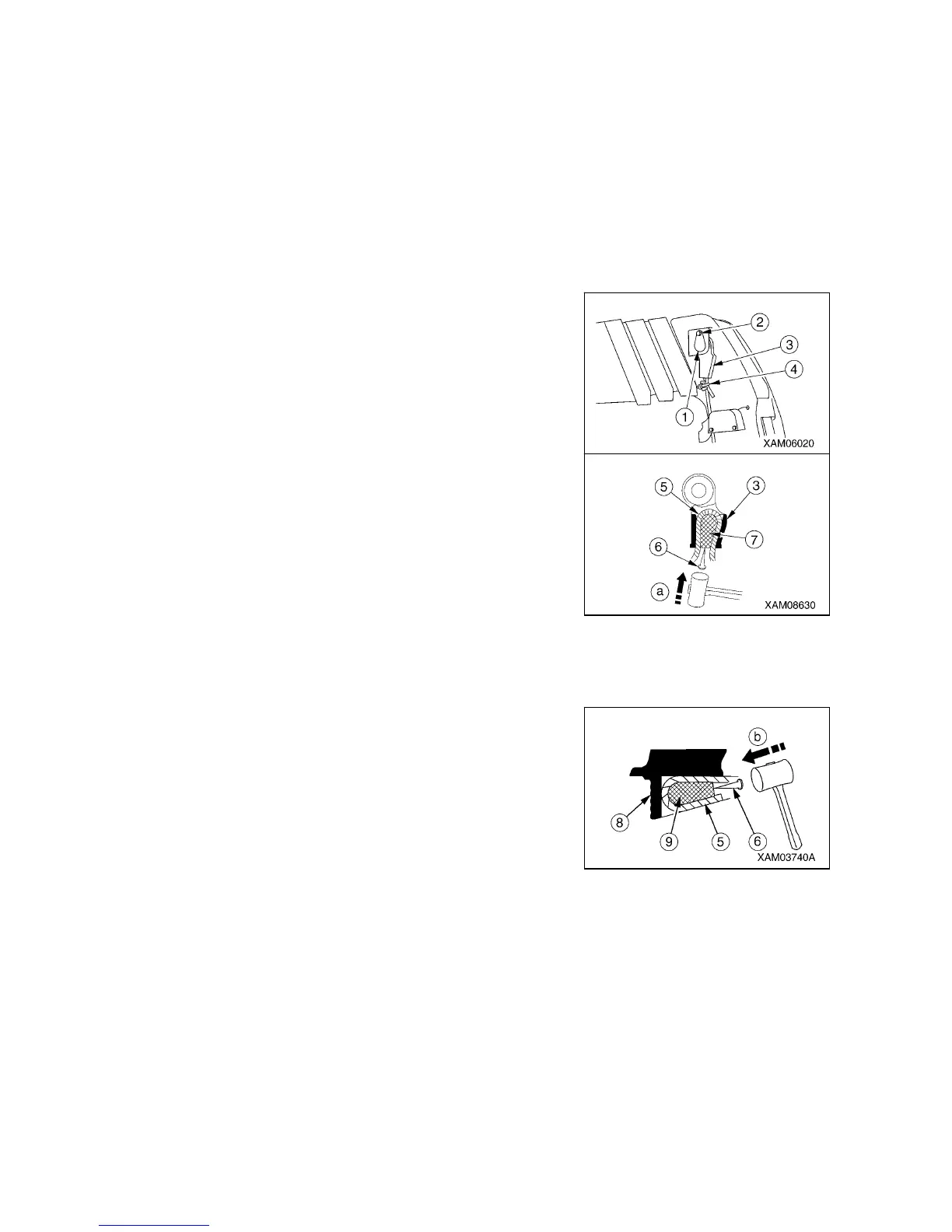

4. Undo the wedge socket fixing bolt (2). Remove the wedge
socket pin (1) and remove the wedge socket (3).
5. Remove the wire clip (4).
6. Pull the wire rope (5) out of the wedge socket (3), following the
procedure provided below.
(1) Bring a 4 to 6mm round bar (6) into contact with the rope
wedge (7).
(2) Remove the rope wedge (7), lightly tapping the round bar (6)
with a hammer in the direction indicated by the arrow (a).
7. Place the winch lever in the “Down” position (push it toward the
front) to wind up the wire rope (5) from the winch drum.
8. With the wire rope winded up from the winch drum, detach the
end of the wire rope (5) from the winch drum (8) by following the
procedure provided below.
(1) Bring a 4 to 6mm round bar (6) into contact with the rope
wedge (9).
(2) Remove the rope wedge (9), lightly tapping the round bar (6)
with a hammer in the direction indicated by the arrow (b).
9. Wind up the remaining wire rope (5) completely.
Removal of the winch wire rope is completed.
