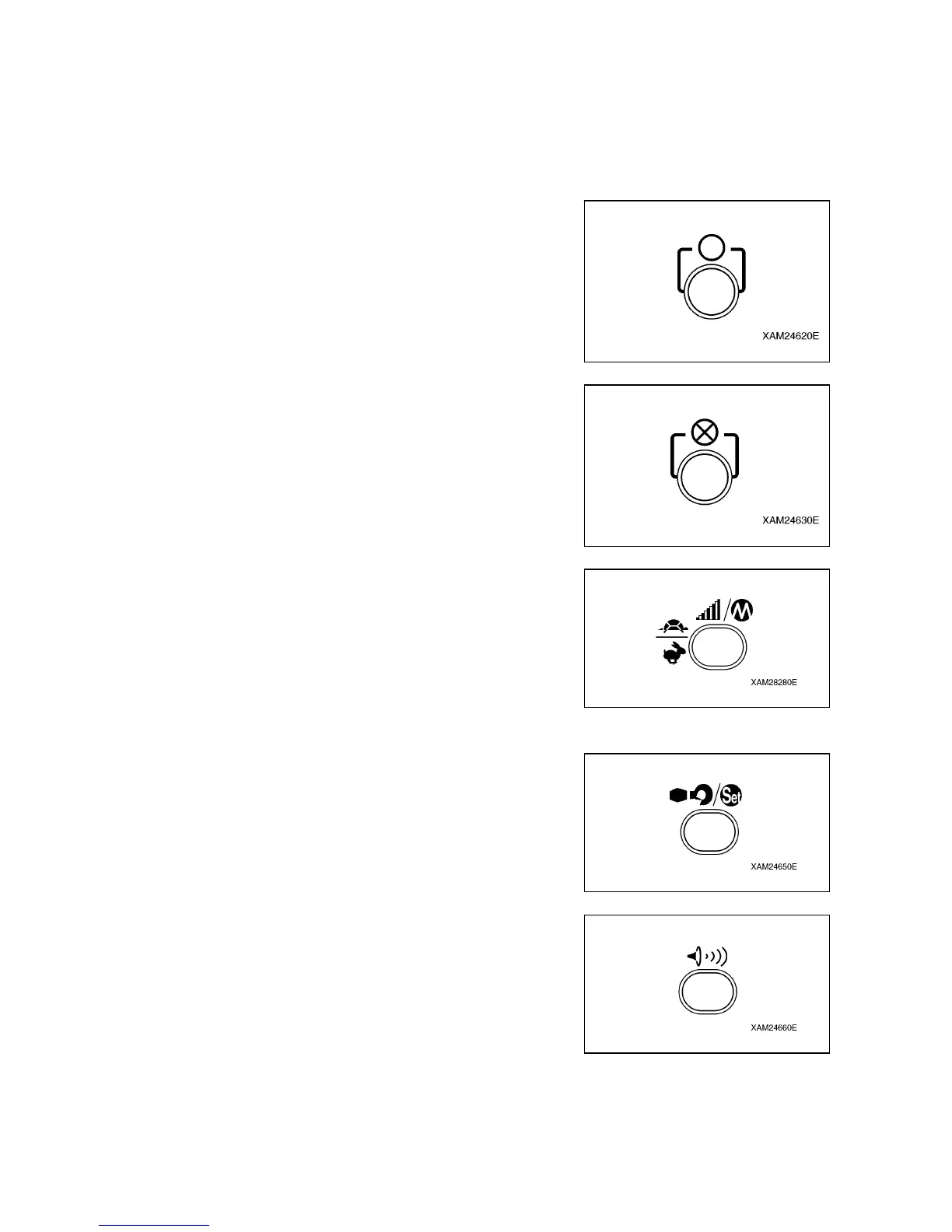

[1] LCD SCREEN (1)
The LCD screen displays the status of the Transmitter in operation,
the established values for each mode, or error messages by
symbols, comments or signs.
[2] START/RESET BUTTON (2)
This button has two usages as below:
• To push this button starts the engine.
• This button resets the “Emergency Stop” and “Abnormal Signal
Detect” conditions.
[3] STOP/EMO BUTTON (3)
This button also has two usages as below:
• To push this button stops the engine.
• In an emergency event where the Crane does not stop by normal
operations, or such, this button provides the forced stop function.
[4] SPEED/MODE BUTTON (4)
This button also provides two usages as below:
• During crane operations, to push this button decelerates the
operation speed.
• During the crane operation is in a pause, this button provides the
selection of the Transmitter operation modes.
The current active mode will be displayed in the LCD screen.
[5] HOOK STOW/SETTING BUTTON (5)
This button also serves two usages as below:
• To push this button automatically stows the hook.
• For each of the setting of the modes, use this button to fix to one
of the choice from the menu in the LCD screen.
[6] HORN BUTTON (6)
Push this button to toot the horn.
