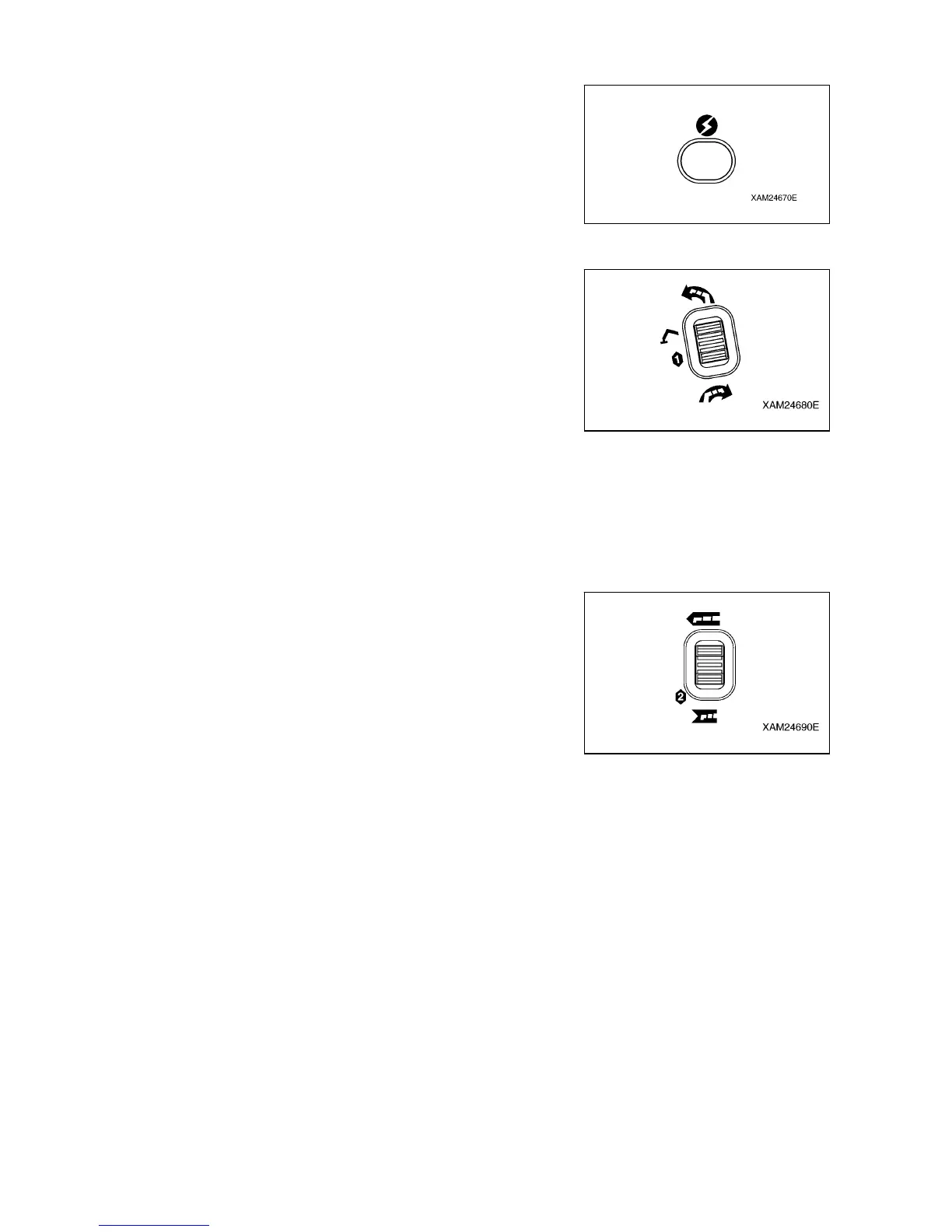

[7] POWER SWITCH (7)
To push this button switches ON and OFF the power of the
Transmitter. Each push will turn ON or OFF alternately.
[8] SLEWING/No.1 OUTRIGGER OPERATION LEVER (8)
This operation lever functions in two ways as below:
1. In the CRANE MODE, this lever controls slew of the Crane
structure:
• Counterclockwise: Push the upper end of the lever.
• Neutral: Release your finger from the lever.
• Clockwise: Push the lower end of the lever.
2. In the OUTRIGGER MODE, this lever controls extension
(setting) and retraction (stowing) of either only No.1 or all of the
outriggers at once:
• Retraction (stowing): Push the upper end of the lever.
• Neutral: Release your finger from the lever.
• Extension (setting): Push the lower end of the lever.
[9] BOOM TELESCOPING/No.2 OUTRIGGER OPERATION LEVER (9)
This operation lever functions in two ways as below:
1. In the CRANE MODE, this lever controls the telescopic boom
length:
• Boom extension: Push the upper end of the lever.
• Neutral: Release your finger from the lever.
• Boom retraction: Push the lower end of the lever.
2. In the OUTRIGGER MODE, this lever controls extension
(setting) and retraction (stowing) of either only No.2 or all of the
outriggers at once:
• Retraction (stowing): Push the upper end of the lever.
• Neutral: Release your finger from the lever.
• Extension (setting): Push the lower end of the lever.
