9-11

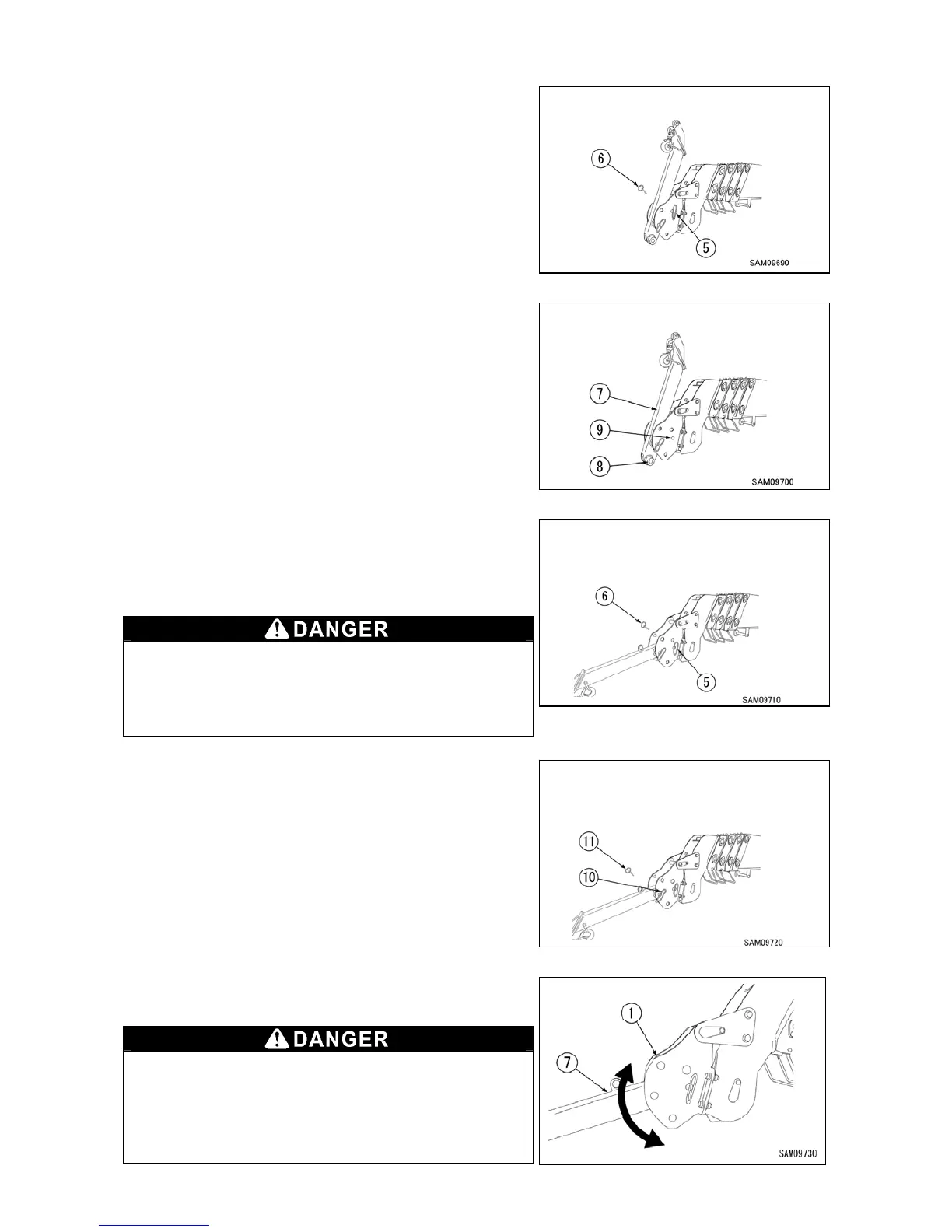

4. Remove the Linch pin (6) from the end of position pin (5), and
remove the position pin (5).
5. Line up the hole (8) in E-boom (7) tip and hole (9) in bracket.
6. Insert the removed position pin (5) (in procedure 4.) through
the hole of bracket (9), and secure with lynch pin (6) to the tip
of position pin (5).
Always secure the position pin (5) with the lynch pin (6). If
the position pin falls out during operations, serious injury
or damage to the machine may result.
7. Remove lynch pin (11) from the tip of position pin (10), and
remove the position pin (10).
8. Move E-boom (7) to the required angle for the work, and line
the holes (1) in the E-boom (7).
E-boom and hook may interfere with each other in
RESTRICTED AREA on Rated Total Load chart, and it may
cause a serious accident. Always adjust boom angle to
proper position for the work.
