Maeda MC-305C-2 - Crane Operation Checks

3-4

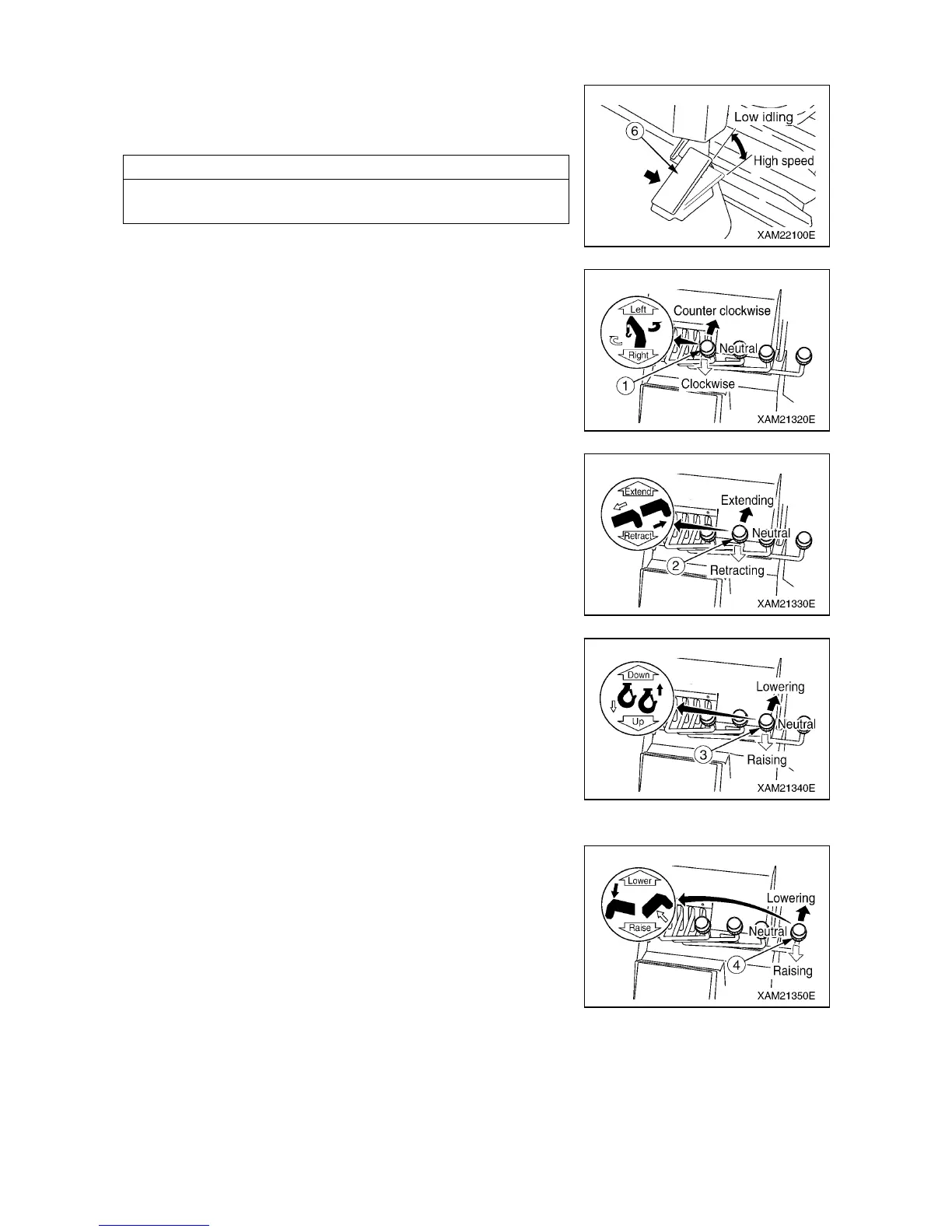

[1] ACCELERATION PEDAL (6)
Use the pedal to adjust the engine speed or output.
• Low idling: Release your foot from the pedal.
• Full speed: Press down fully on the acceleration pedal.
NOTES
Press down on the acceleration pedal to the position necessary
for the work.
[2] SLEWING LEVER (1)
Use the lever to slew the crane boom and post.
• Slew counter clockwise: Press the lever forward (Left).
• Neutral: Release your hand from the lever.
The lever returns to the ”NEUTRAL” position and the
slewing stops.
• Slew clockwise: Pull the lever toward you (Right).
[3] BOOM TELESCOPING LEVER (2)
Use this lever for telescoping the crane boom.
• Extend: Push the lever forward (Extend).
• Neutral: Release your hand from the lever.
The lever returns to the ”NEUTRAL” position and the
boom telescoping stops.
• Retract: Pull the lever toward you (Retract).
[4] WINCH LEVER (3)
Use this lever to raise/lower the hook block of the crane.
• Lower: Push the lever forward (Down).
• Neutral: Release your hand from the lever.
The lever returns to the ”NEUTRAL” position and the
machine automatically brakes. The lowering/raising of the
hook block stops.
• Raise: Pull the lever toward you (Up).
[5] BOOM DERRICKING LEVER (4)
Use this lever to raise/lower the hook block of the crane.
• Lower: Push the lever forward (Lower).
• Neutral: Release your hand from the lever.
The lever returns to the ”NEUTRAL” position and the
boom derricking stops.
• Raise: Pull the lever toward you (Raise).
