OPERATING PROCEDURES GRT8120 OPERATOR MANUAL
4-104 Published 3-22-2021, Control # 702-02
Leveling the Crane Using Auto-level
To level the crane using the auto-level function, perform the
following procedure:
1. Fully extend the four outrigger jacks.
2. Using the Jog Dial, or the Arrow Buttons at the
Navigation Control Pad, select the Auto-level icon
(3, Figure 4-101) (icon will turn orange when selected).
3. Press the Jog Dial, or the OK Button at the ODM, to
make the Auto-level icon active (icon will turn green
when active). The Outrigger Extend/Retract function
screen will also change to show the Auto-level indicator
(1, Figure 4-101).
4. To begin the auto-level function, position the Outrigger
Extend/Retract Switch (17, Figure 3-9) on the left
armrest to the extend or retract position, then press and
hold the button (1, Figure 4-102) at the Jog Dial or
Navigation Control Pad that corresponds to the
Auto-level Button on the screen.
With the two buttons pressed, the auto-level system will
adjust the height of the jacks automatically as it levels
the crane. Several adjustments may be necessary.
After an adjustment is made, the auto-level system will
pause for a short time as it does a levelness check of the
crane. The operator can watch the leveling process by
viewing the inclination indicator (2, Figure 4-101).
If crane is still not level, the system will continue to make
adjustments, with each adjustment followed by a pause
for a level check.
When crane is level within 0.10°, the Auto-level Indicator
(1, Figure 4-101) flashes. When this occurs, the
auto-level process is complete and no further
adjustments are made.
5. Release the Outrigger Extend/Retract Switch and the
button (1, Figure 4-102) at the Jog Dial or Navigation
Control Pad.

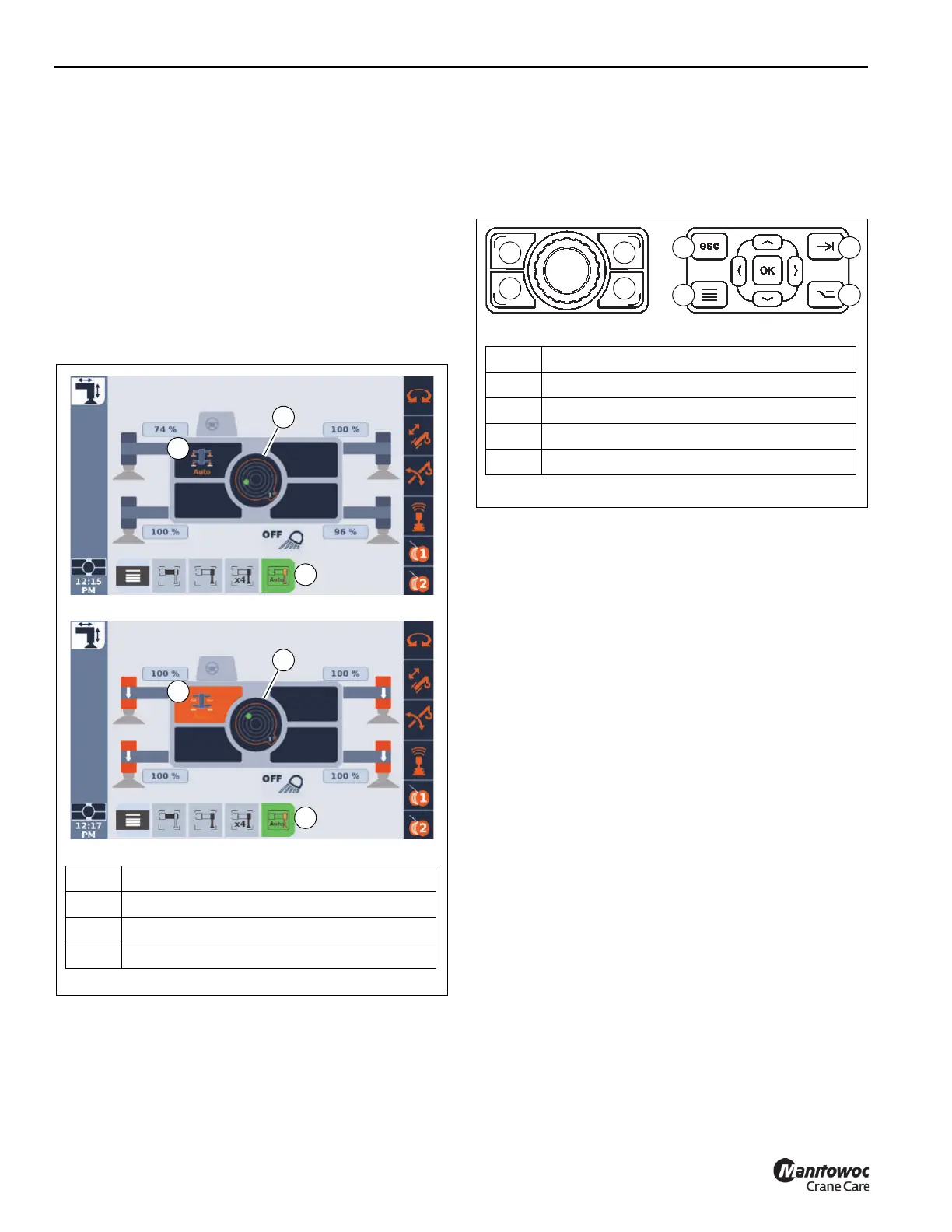

FIGURE 4-101
1
3
10269-8
2
1
3
2
10269-9
Item Description
1 Auto-level Indicator
2 Inclination Indicator
3 Auto-level Icon
FIGURE 4-102
Item Description
1 Left-Front Jack - Auto-level
2 Right-Front Jack
3 Left-Rear Jack
4 Right-Rear Jack
1 2
3 4
1
3
2
4
