MAINTENANCE AND LUBRICATION GRT8120 OPERATOR MANUAL
6-28 Published 3-22-2021, Control # 702-02
Item
Lube Point
Description
Figure No.
Approved
Lubricant
Approximate
Capacity
Service Interval
Service
Application
Turntable (Swing Drive) and Cab Tilt Lubrication – Continued
44
Turntable Swivel
Lock Pin
Figure 6-12 G SPRAY ON
Every 500 hours, or
6 months of service,
whichever interval
comes first
SPRAY ON
LUBRICATION
1 service point
See NOTE 34.
50
Cab Tilt Cylinder
Pivot Pins
Figure 6-12 A
Every 500 hours, or
3 months, whichever
interval comes first
LUBRICATE
4 service points
See NOTE 33.
51 Pillow Block Figure 6-12 A
Every 500 hours, or
3 months, whichever
interval comes first
LUBRICATE
4 service points
See NOTE 33.
52
Cab Door Track
and Rollers
Figure 6-13 Light Oil Every 6 months
LUBRICATE top
and bottom door
track and rollers
2 service points
53
Air Conditioner
Condenser Filter
Figure 6-14 –
Every 1000 hours, or
6 months, whichever
interval comes first
CHECK and CLEAN
condenser filter
1 service point
NOTE 33: USE grease fittings provided.
NOTE 34: DO NOT USE non semi-synthetic lubricant. Use of non-approved lubricant may damage components.
CAUTION
Possible Equipment Damage!
Use specified semi-synthetic or synthetic lubricants as listed in this section of your GRT8120
Operator Manual. See also your Service Manual for maintenance and lubrication
instructions.
Use of non-approved, non semi-synthetic lubricant may damage components and/or
invalidate published lubricant intervals.
Failure to follow this instruction may cause damage to equipment.

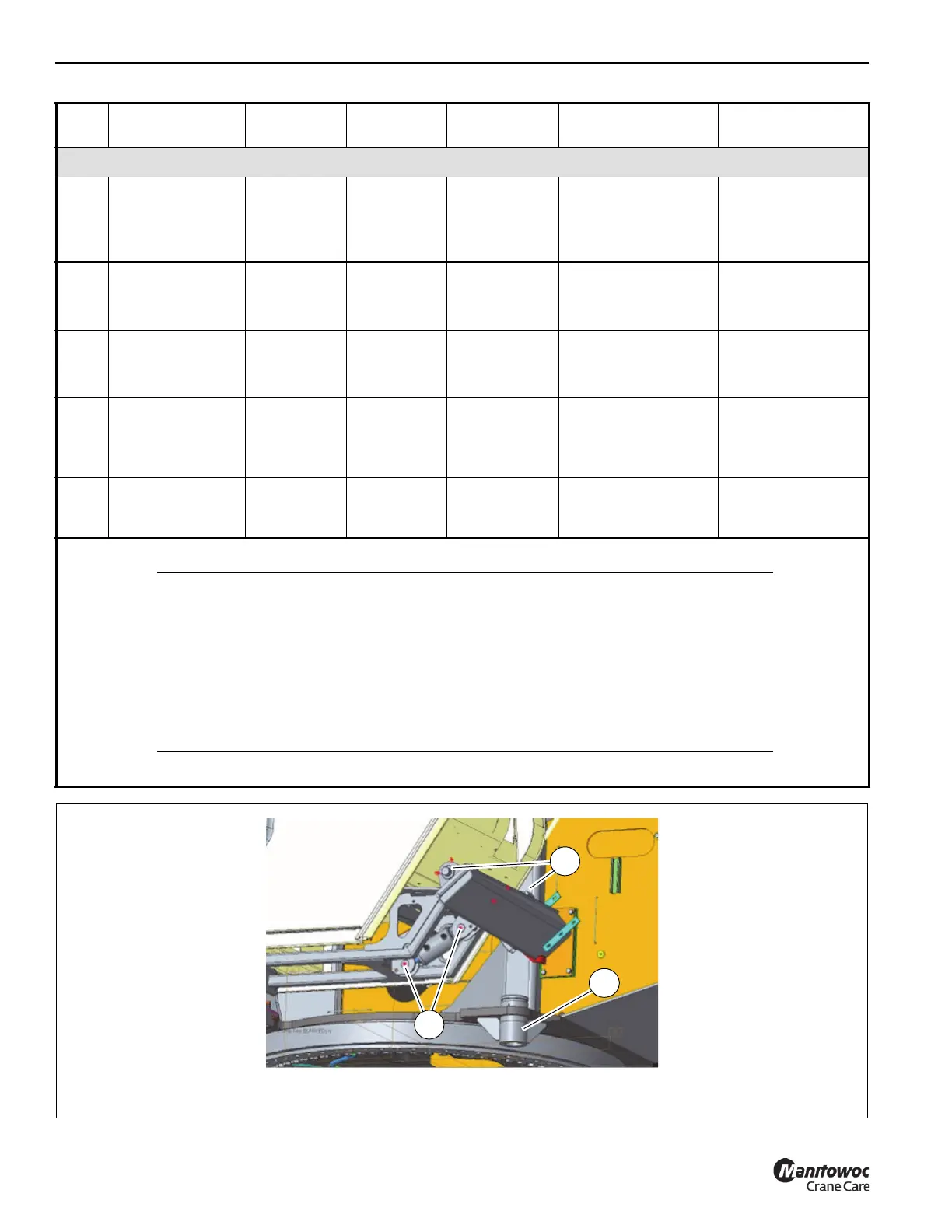

FIGURE 6-12
10024-09
SIDE VIEW – SUPERSTRUCTURE
50
51
44
