DANGER
7376100175
FOLLOW INSTRUCTIONS IN OPERATOR’S AND SAFETY HANDBOOK.
TO AVOID DEATH OR SERIOUS INJURY:
NEVER handle personnel with this machine
unless the requirements of the applicable
national, state and local regulations and
safety codes are met.
NEVER use this crane for bungee jumping
or any form of amusement or sport.
NEVER permit anyone to ride loads, hooks,
slings or other rigging for any reason.
NEVER get on or off a moving crane.
NEVER allow anyone other than the
operator to be on this crane while it is
operating or traveling.
ELECTRONIC EQUIPMENT on this
crane is intended as an aid to the operator.
Under no condition should it be relied upon
to replace the use of capacity charts and
operating instructions. Sole reliance upon
these electronic aids in place of good
operating practices can cause an accident.
Do not remove any decal, the load chart, or
the Operator’s and Safety Handbook from
this crane.
TIPPING HAZARD
To avoid death or serious injury,
ensure load and crane’s
FRQ¿JXUDWLRQDUHZLWKLQFDSDFLW\
as shown on crane’s load rating
chart and notes.
This crane should have a
functional load moment indicator
and control lock-out system.
Test daily for proper operation.
POSITION CRANE ON FIRM SURFACE.
EXTEND OUTRIGGERS AND LEVEL CRANE.
TWO-BLOCKING HAZARD
To avoid death or serious injury,
keep load handling devices away
from boom/jib tip when extending
or lowering the boom and when
hoisting up.
This crane should have a
functional anti-two-block and
control lock-out system.
Test daily for proper operation.
DO NOT PASS LOADS OR BOOM OVER
GROUND PERSONNEL.
Breathing diesel engine exhaust exposes you to chemicals
known to the State of California to cause cancer and birth
defects or other reproductive harm.
Always start and operate the engine in a well ventilated area.
If in an enclosed area, vent the exhaust to the outside.
Do not modify or tamper with the exhaust system.
Do not idle the engine except as necessary.
For more information, go to www.P65warnings.ca.gov/diesel
Battery posts, terminals, and related accessories contain
chemical lead and lead compounds, chemicals known to the
State of California to cause cancer, birth defects, and other
reproductive harm. Wash hands after handling.
Operation of this equipment may create sparks that can start
fires around dry vegetation. A spark arrestor may be required.
The owner/ operator should contact local fire agencies for
laws or regulations relating to fire prevention requirements.
California Proposition 65
California Spark Arrestor
81007557 REV C
DOOR WHEN IT’S COMPLETELY OPEN
DEATH OR SERIOUS INJURY MAY
RESULT WITH IMPROPER USE.
Lug for counterweight lifting and
installation only.
Not to be used for machine lifting
or tie down.
7376100089
DANGER
DANGER
DEATH OR SERIOUS INJURY MAY RESULT
IF PROPER OPERATING AND SETUP
PROCEDURES ARE NOT FOLLOWED.
When attaching wire rope to hoist
drum. Make sure the proper cable
wedge is used for that particular
cable size.
7376100079
G7
80000511
DANGER
ENTANGLEMENT HAZARD
Death or serious injury may result
if entanglement occurs during hoist
operation.
Keep all body parts and loose clothing
clear while hoist is running.
BOTH SIDES
ANTI-TWO-BLOCK HAZARD
Do not use auxiliary boom
nose anti-two-block switch
for boom extension.
6\VWHPIDLOXUHQRWL¿FDWLRQ
feature will not function.
DANGER
7376102014
AUX NOSE
7376102910
G7
MUST BE CLEARLY VISIBLE THROUGH
BOTH SIDES
CAUTION
Dead end lug not to be
used as tie down point
for boom during
transportation. Failure
to comply may result in
machine damage. When
the boom is secured for
transport, boom shall
not be constrained. All
securement must allow
for reasonable freedom
of movement.
G7 80061893
80127670G7
XPG-CABLE REEL
CONNECTION
X120-WIND SPEED
INDICATOR
X130-AIRCRAFT
WARNING LIGHT
BOOM EXTENSION
WIRING CONNECTIONS
X118-MAIN LIMIT
SWITCH
X119-AUX LIMIT
SWITCH
TO AVOID DEATH OR SERIOUS INJURY:
DO NOT REEVE AUXILIARY
BOOM NOSE WHEN OFFSETTABLE
BOOM EXTENSION IS ERECTED.
DANGER
AUXILIARY BOOM NOSE IS INTENDED FOR SINGLE-LINE
OPERATION. IF ADDITIONAL PART-OF-LINE IS REQUIRED TO
OBTAIN MAXIMUM REEVING WITH ODD NUMBER PARTS, HOIST
LINE MUST FIRST ENGAGE AUXILIARY BOOM NOSE SHEAVE.
7376007239
BOOM EXTENSION HAZARD
TO AVOID DEATH OR SERIOUS INJURY:
Follow procedures in load chart, safety, and
operation manuals during erection, stowage and
use of boom extension. Install and secure all
pins properly and control boom extension
movement at all times.
7376101873
DANGER
BOTH SIDES
(LOCATE WITHIN
PAINTED AREA)
BOOM FLY SECTION
37.00
182
189
202
204
165
172
168
162
200
20
100
114
108
206
181
184
185
14
183
166
161
203
80113724 B4

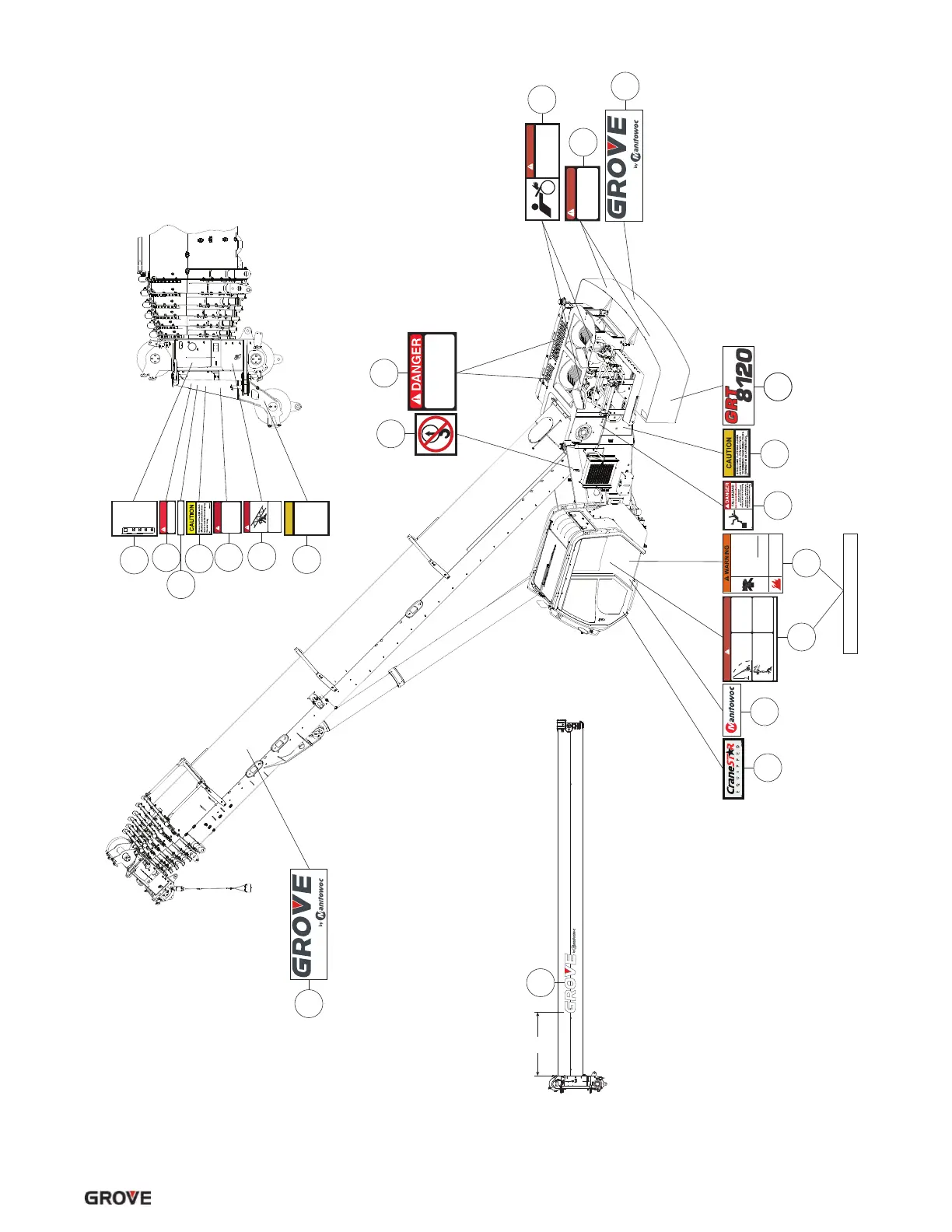

FIGURE A-1 continued
10087-4
To Next Page
