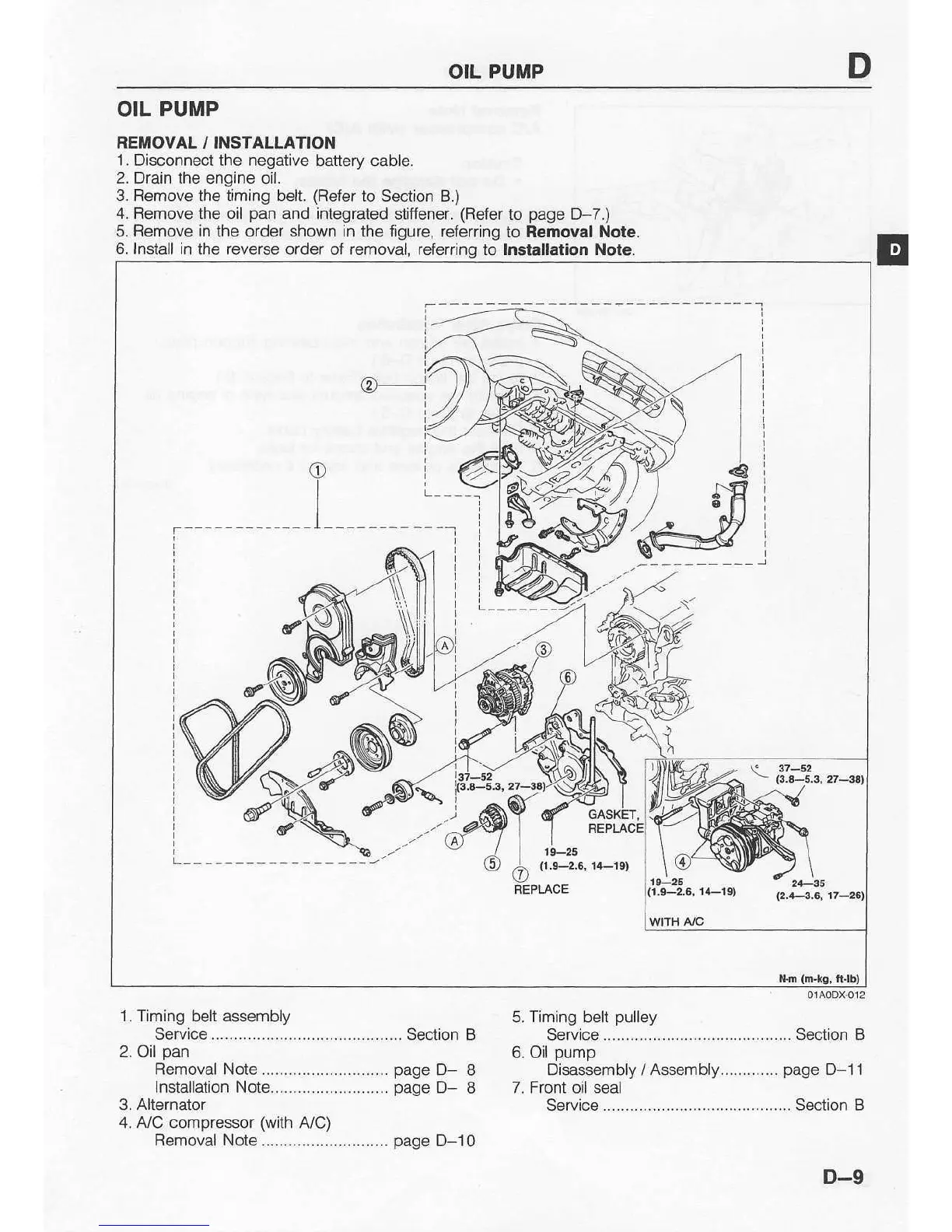

OIL PUMP
OIL PUMP
REMOVAL
/
INSTALLATION
1. Disconnect the negative
battery cable.
2. Drain the
engine oil.
3. Remove the timing belt.
(Refer
to Section B.)
4. Remove the oil
pan
and integrated stittener.
(Reter
to
page
D-7.)
5. Remove in the order shown in the figure,
relerring to Removal Note.
6. Install in the reverse ordef
of removal, referring to Installation Note.
1. Timing belt assembly
Service.......-...........................-...... Section
B
2. Oil
pan
Removal Note............................
page
D 8
Installation Note..........................
page
D- B
3. Aiternator
4.
tuC
compressor
(with
A/C)
Removal Note............................
page
D
1
0
5.
Timing
belt
pulley
Service..........................................
SecUon B
6. Oil
pump
Disassembly
/
Assembly ...........
page
D-1
1
7. Front oil seal
Service.......................................... Section B
o
I
i
REPLACE
19-2s
_
2ir-35
(1.9-2,6,14-rs)
e,r-_3.6i1
D-9
