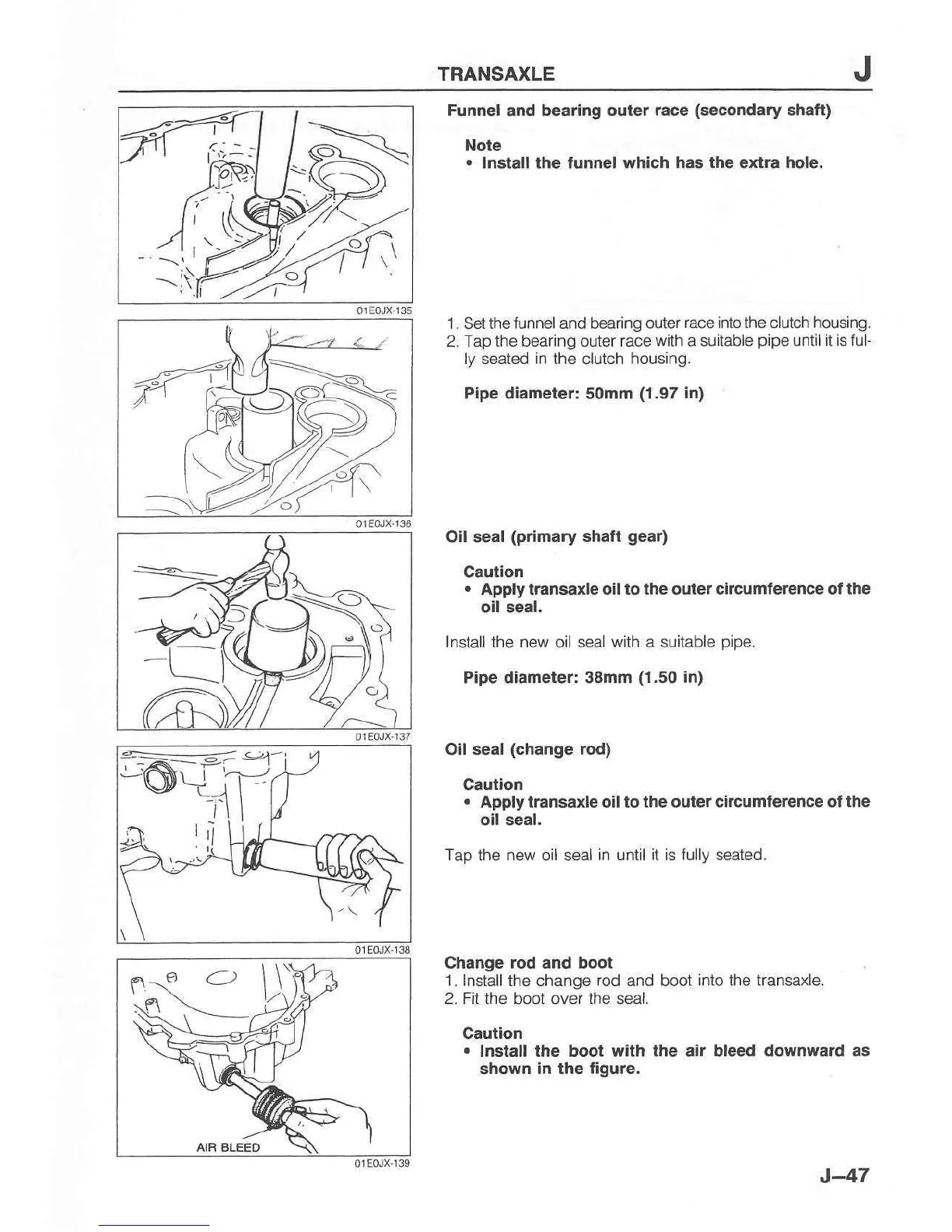

TRANSAXLE
J
Funnel
and
bea.ing outer race
(secondary
shafl)
Note
.
lnstall the tunnel which
has the
extra
hole.
1. Setthefunneland bearing outer
race into the clutch housing.
2. Tap the bearing outer race with a suitable
pipe
untilit isful
ly seated in the clutch housing.
Plpe diameter: 50mm
('1,97
in)
Oil seal
(primary
shalt
gear)
Caution
.
Apply transaxle oil to lhe outer
qircutnlerenca
ol lhe
oil seal.
lnstall
the
new
oil seal
with a suitable
pipe.
Pipe diameter: 38mm
(1.50
in)
Oil seal
(change
rod)
Cautlon
.
Apply transaxle oil to ihe outer
circumference ol the
oil seal.
Tap
the
new
oil seal
in until it is lully seated.
Change
rod
and boot
1. lnsEll the change rod and boot
into the transaxle.
2. Fit the
boot
over the seal.
Cautlon
.
lnstall the boot wlth the air bleed
downward as
shown in the ligure.
e\ \r
<-,2
l\
\
\ t-
u .\-- -J,,-
J-47
