J

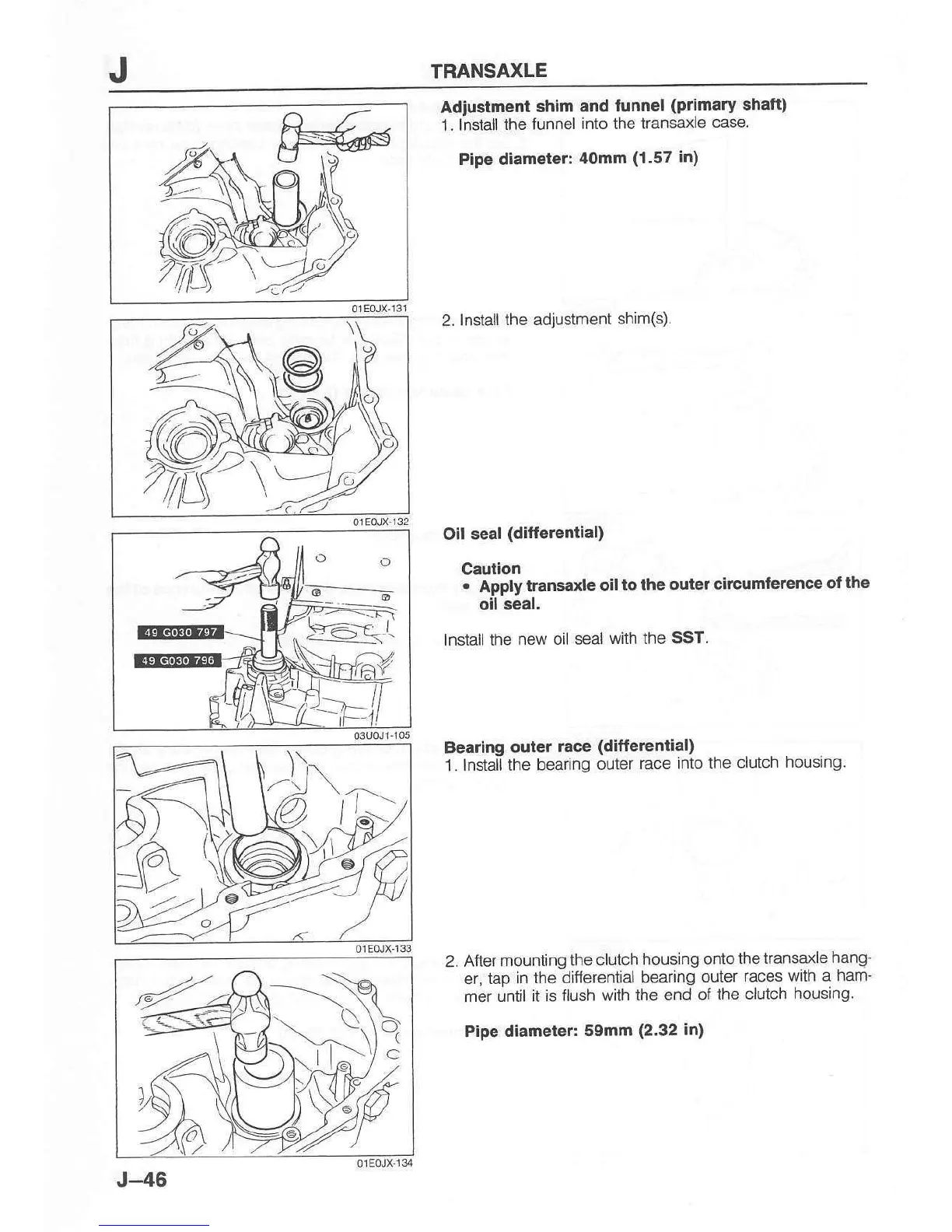

TRANSAXLE
Adlustment
shim
and tunnel
(Primary
shaft)
1. lnstail
the tunnel
into the transaxe
case
Pipe diameter:
40mm
(1.57
in)
2. Install
the adjustment
shim(s).
Oll seal
(ditlerential)
Caution
.
Apply
transaxle
oil
to lhe outer
clrcumGl€nce
of
the
oll seal.
lnstall the new
oil seal
with the SST.
Bearlng
outer
race
(differential)
1.
Instai the bearing
outer
race into
the clutch
housing-
2.
After mounting
the
clutch housing
onto the
transaxle
hang'
er,
tap in
the differential bearing
outer
races
with a ham-
mer until it is
flush with the
end of the
clutch
housing
Pipe diameter:
59mm
(2.32
in)
-4
r-J
lr_:
--\R
\
$,\o,-
\m#
4PY
J-46
