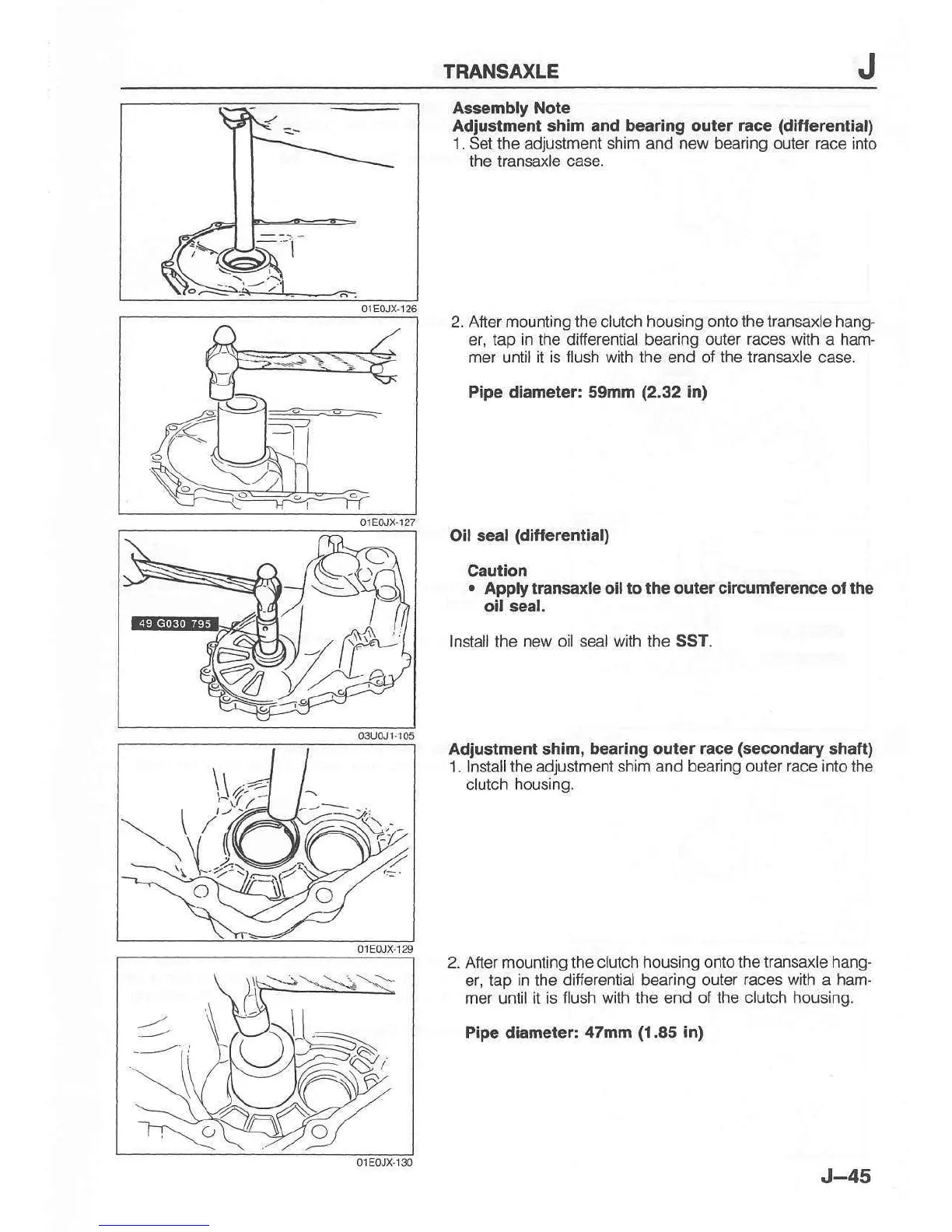

Assembly Noie
Adiustmer
shlm
and bearing outer racc
(dltferential)
1. Set the adjustment
shim and new bearing outer race
into
the lransaxle
case.
2. After mountingthe clutch housing onto
lhe transaxle
hang-
er, tap in the diffe.ential bearing outer races with a ham-
mer
until
it is llush with the
end
of the transaxle case.
Pipe diametsr: 59mm
(2,32
ln)
Oll seal
(ditterential)
Caution
.
Apply transaxle oil to the outet circumfercnce ol the
oil seal,
lnstall the
new oil seal with the SST.
Adiustment shim,
bearlng ouier race
(secondary
shaft)
1. Installthe adjustment
shim and bearing outer race into the
clutch
housing.
2. After mounting the clutch housing onto the
transaxle
hang-
er, tap
in
the
difterential bearing outer races with a ham-
mer until it is
flush with the end ol the clutch housinq.
Plpe dlametel: 47mm
(1.85
in)
\
