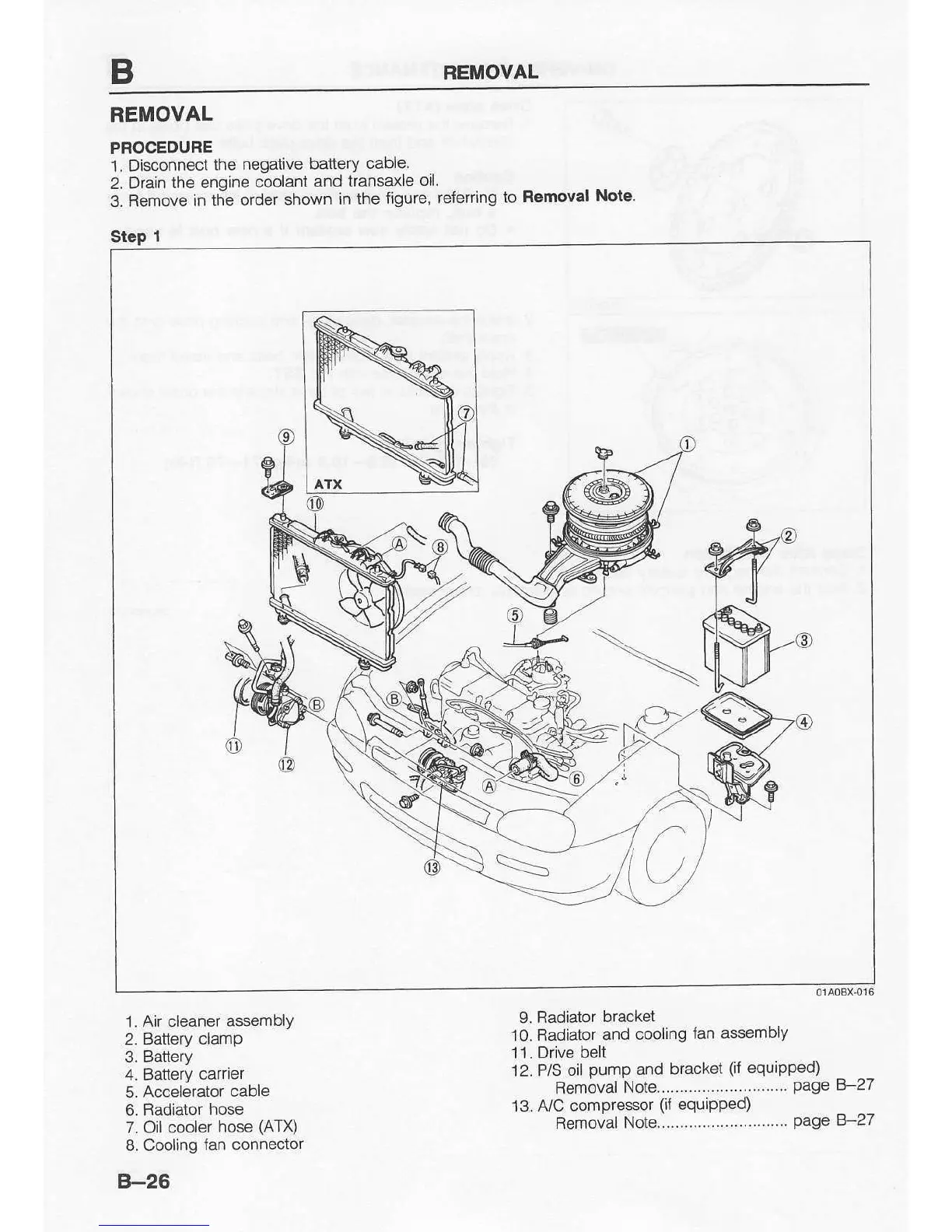

REMOVAL
REMOVAL
PROCEDURE
1 . Disconnect
the negative
battery
cable
2. Dra
n the enorne
coolanl
and transaxle
oil
3 Remove rn tlie
ordet shown
rn ihe
trgure
refernng lo Removal
Note
Slep
t
1. Air
cleaner assembly
2. Battery
clamp
3. Battery
4. Battery
carrier
5. Accelerator
cable
6.
Badiator
hose
7. Oil
cooler
hose
(ATX)
8. Cooling
fan connector
B-26
9.
Radiaior
bracket
10.
Radiator
and cooling
fan
assembly
11.
Drive belt
12. P/S
oil
pump
and bracket
(if
equipped)
Removal
Note.....................
......
page
B-27
13. AJC compressor
(if
equipped)
Rernoval
Note.....
......
. ..
...
pa1e
B-27
